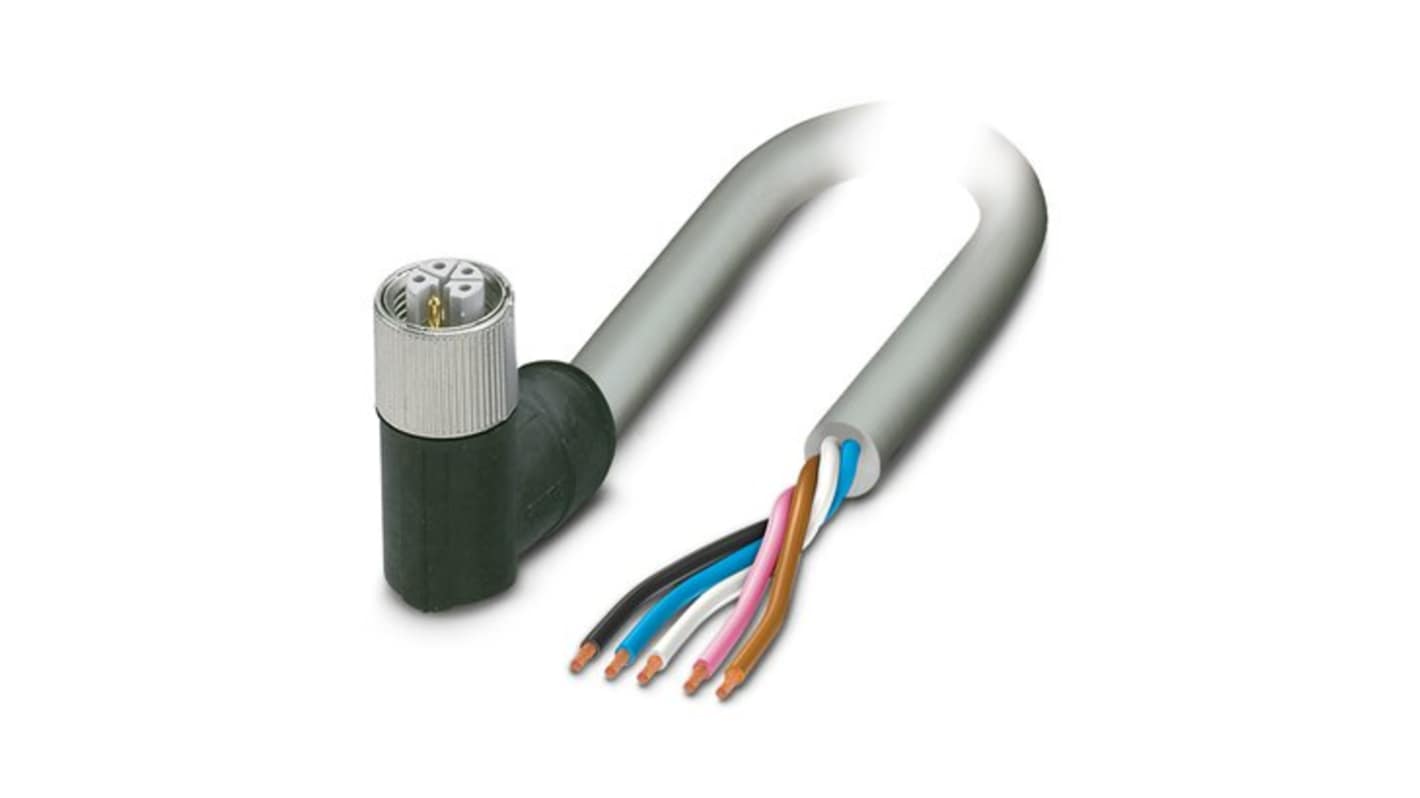

Phoenix Contact 14246 Shielded 1.5 mm² 5 Core Power Cable, Grey Polyurethane PUR, 3m
- RS Stock No.:
- 281-493
- Mfr. Part No.:
- 1424606
- Manufacturer:
- Phoenix Contact
Bulk discount available
Subtotal (1 unit)*
PHP3,397.41
(exc. VAT)
PHP3,805.10
(inc. VAT)
FREE delivery for orders over ₱3,000.00
Temporarily out of stock
- Shipping from March 02, 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit |
|---|---|
| 1 - 9 | PHP3,397.41 |
| 10 + | PHP3,125.26 |
*price indicative
- RS Stock No.:
- 281-493
- Mfr. Part No.:
- 1424606
- Manufacturer:
- Phoenix Contact
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Phoenix Contact | |
| Cross Sectional Area | 1.5 mm² | |
| Number of Cores | 5 | |
| Sheath Colour | Grey | |
| Length | 3m | |
| Armoured | No | |
| Cable Type | Shielded | |
| Sheath Material | Polyurethane PUR | |
| Maximum Operating Temperature | +80°C | |
| Series | 14246 | |
| Select all | ||
|---|---|---|
Brand Phoenix Contact | ||
Cross Sectional Area 1.5 mm² | ||
Number of Cores 5 | ||
Sheath Colour Grey | ||
Length 3m | ||
Armoured No | ||
Cable Type Shielded | ||
Sheath Material Polyurethane PUR | ||
Maximum Operating Temperature +80°C | ||
Series 14246 | ||
- COO (Country of Origin):
- PL
The Phoenix Contact Power cable is designed to deliver reliable performance in various demanding applications. Constructed with a robust, halogen-free PUR material, it assures durability and resilience in both fixed and flexible installations. The product features a five-position design with L-coding, ensuring compatibility while preventing mismatching.
Electrical properties include high insulation resistance and low conductor resistance
Degree of protection IP65 IP67 ensures reliability in challenging environments
Applicable in temperatures ranging from 50 °C to 80 °C maintaining performance across a broad range
Environmentally compliant adhering to EU RoHS and REACH standards
Degree of protection IP65 IP67 ensures reliability in challenging environments
Applicable in temperatures ranging from 50 °C to 80 °C maintaining performance across a broad range
Environmentally compliant adhering to EU RoHS and REACH standards
