Phoenix Contact 14250, 1.5 m 4 Core Power Cable, Grey, Black Polyurethane 80 °C
- RS Stock No.:
- 281-188
- Mfr. Part No.:
- 1425029
- Manufacturer:
- Phoenix Contact
Bulk discount available
Subtotal (1 unit)*
PHP47,380.89
(exc. VAT)
PHP53,066.60
(inc. VAT)
FREE delivery for orders over ₱3,000.00
Temporarily out of stock
- Shipping from April 10, 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit |
|---|---|
| 1 - 9 | PHP47,380.89 |
| 10 + | PHP43,586.05 |
*price indicative
- RS Stock No.:
- 281-188
- Mfr. Part No.:
- 1425029
- Manufacturer:
- Phoenix Contact
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Phoenix Contact | |
| Product Type | Power Cable | |
| Number of Cores | 4 | |
| Jacket Colour | Grey, Black | |
| Cable Length | 1.5m | |
| Outside Diameter | 6.75 mm | |
| Jacket Material | Polyurethane | |
| Voltage | 63 V | |
| Minimum Operating Temperature | 80°C | |
| Cable CSA | 4 x 1.5 mm² | |
| Standards/Approvals | RoHS, IEC 61076-2-111, EAC, DIN VDE 0472, DIN EN 60811-404, DIN EN 60332-2-2, DIN EN 50267-2-1, cUL Listed, UL 758/1581 FT2, UL Listed, UL 758/1581 | |
| Series | 14250 | |
| Maximum Operating Temperature | 80°C | |
| Conductor Material | Bare Copper Wire | |
| Select all | ||
|---|---|---|
Brand Phoenix Contact | ||
Product Type Power Cable | ||
Number of Cores 4 | ||
Jacket Colour Grey, Black | ||
Cable Length 1.5m | ||
Outside Diameter 6.75 mm | ||
Jacket Material Polyurethane | ||
Voltage 63 V | ||
Minimum Operating Temperature 80°C | ||
Cable CSA 4 x 1.5 mm² | ||
Standards/Approvals RoHS, IEC 61076-2-111, EAC, DIN VDE 0472, DIN EN 60811-404, DIN EN 60332-2-2, DIN EN 50267-2-1, cUL Listed, UL 758/1581 FT2, UL Listed, UL 758/1581 | ||
Series 14250 | ||
Maximum Operating Temperature 80°C | ||
Conductor Material Bare Copper Wire | ||
- COO (Country of Origin):
- PL

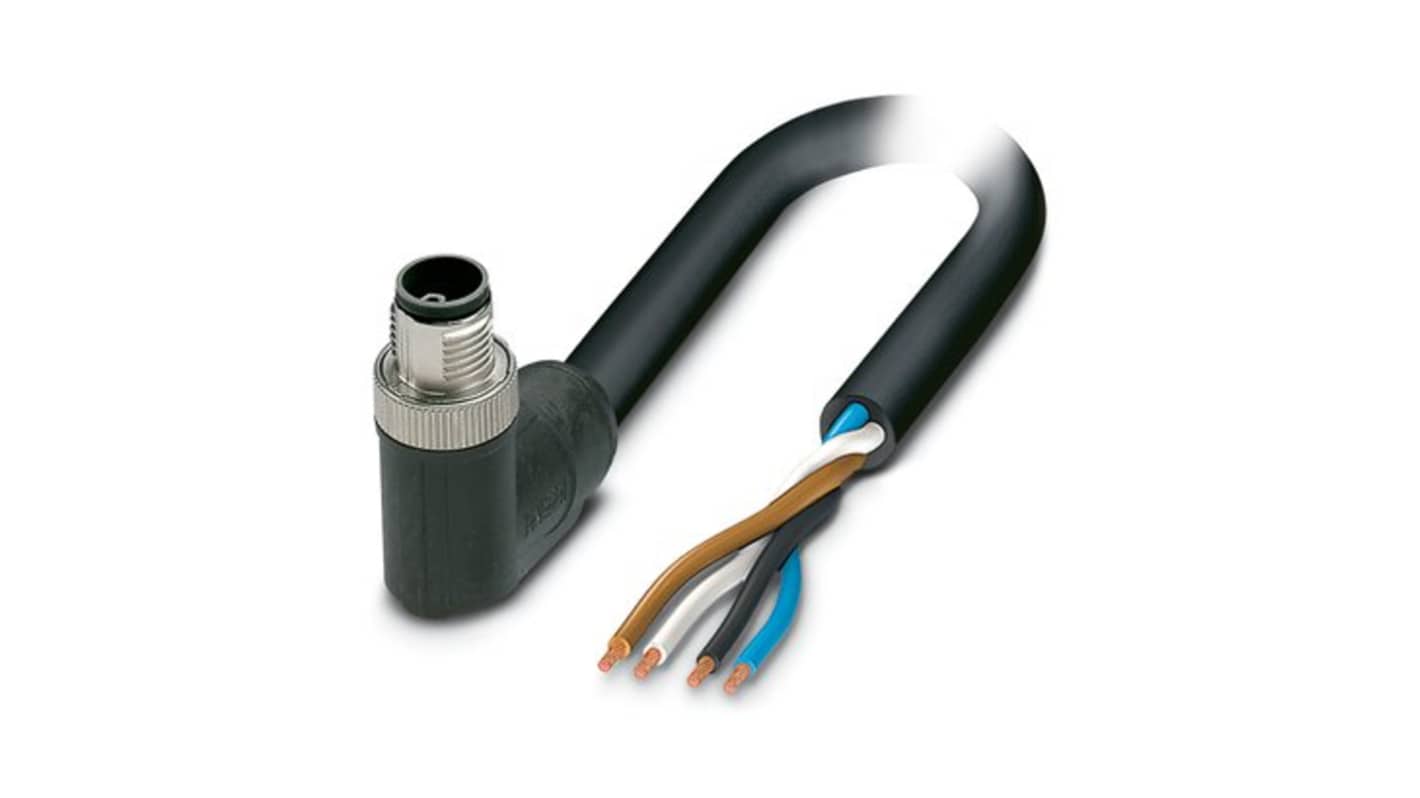

The Phoenix Contact Power cable is designed for optimal electrical performance and reliability in demanding environments. Crafted with a robust halogen-free PUR material, it ensures safety and durability, making it suitable for various applications. Featuring a 4-position M12 angled connector with L-coding, this cable offers efficient power supply and excellent protection against mismatching.
Flexible installation options cater to fixed and moving applications
Exceptional insulation resistance for reliable long term use
Lightweight yet durable making handling and installation easier
High degree of protection against dust and water ingress
