Phoenix Contact 14250, 5 m 4 Core Power Cable, Grey, Black Polyurethane 80 °C
- RS Stock No.:
- 280-573
- Mfr. Part No.:
- 1425067
- Manufacturer:
- Phoenix Contact
Bulk discount available
Subtotal (1 unit)*
PHP49,029.49
(exc. VAT)
PHP54,913.03
(inc. VAT)
FREE delivery for orders over ₱3,000.00
Temporarily out of stock
- Shipping from April 20, 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit |
|---|---|
| 1 - 9 | PHP49,029.49 |
| 10 + | PHP45,105.93 |
*price indicative
- RS Stock No.:
- 280-573
- Mfr. Part No.:
- 1425067
- Manufacturer:
- Phoenix Contact
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Phoenix Contact | |
| Product Type | Power Cable | |
| Number of Cores | 4 | |
| Jacket Colour | Grey, Black | |
| Cable Length | 5m | |
| Outside Diameter | 8.8 mm | |
| Jacket Material | Polyurethane | |
| Voltage | 63 V | |
| Minimum Operating Temperature | 80°C | |
| Standards/Approvals | UL 758/1581, RoHS, IEC 61076-2-111, UL Listed, UL 758/1581 FT1, EAC, DIN VDE 0472, DIN EN 60811-404, DIN EN 60332-1-2, DIN EN 50267-2-1, cUL Listed | |
| Cable CSA | 4 x 2.5 mm² | |
| Conductor Material | Bare Copper Wire | |
| Series | 14250 | |
| Maximum Operating Temperature | 80°C | |
| Select all | ||
|---|---|---|
Brand Phoenix Contact | ||
Product Type Power Cable | ||
Number of Cores 4 | ||
Jacket Colour Grey, Black | ||
Cable Length 5m | ||
Outside Diameter 8.8 mm | ||
Jacket Material Polyurethane | ||
Voltage 63 V | ||
Minimum Operating Temperature 80°C | ||
Standards/Approvals UL 758/1581, RoHS, IEC 61076-2-111, UL Listed, UL 758/1581 FT1, EAC, DIN VDE 0472, DIN EN 60811-404, DIN EN 60332-1-2, DIN EN 50267-2-1, cUL Listed | ||
Cable CSA 4 x 2.5 mm² | ||
Conductor Material Bare Copper Wire | ||
Series 14250 | ||
Maximum Operating Temperature 80°C | ||
- COO (Country of Origin):
- PL

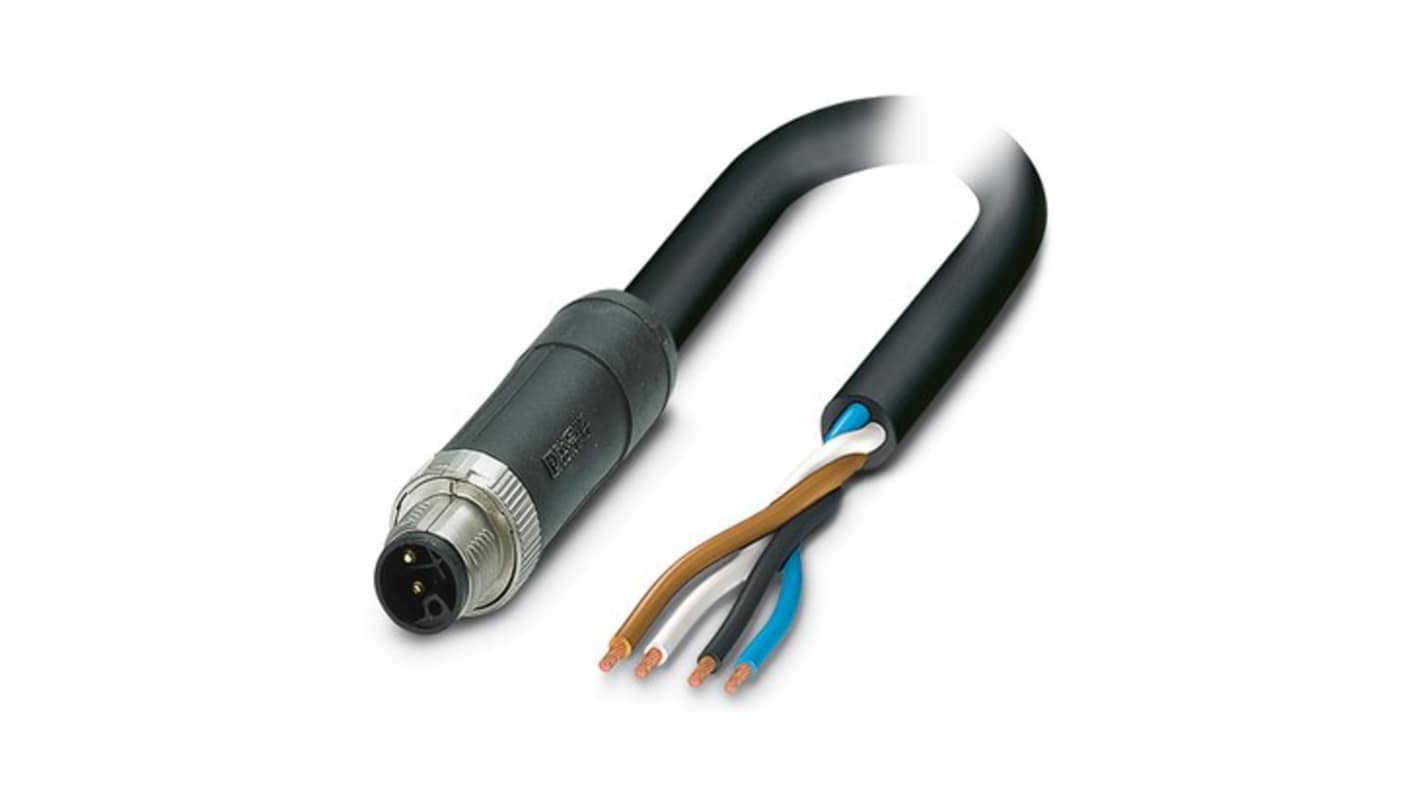

The Phoenix Contact Power Cable is designed for reliable performance in demanding applications. Constructed with a robust halogen-free PUR material, it offers both flexibility and durability, making it ideal for both fixed and movable installations. The cable features an L-coded M12 connector, ensuring protection against mismatching during connections. With a generous cable length, it accommodates various installation needs while providing a dependable power supply for your systems. Additionally, the cable is engineered to withstand extreme environmental conditions, maintaining functionality across a wide temperature range.
Features IP65 and IP67 ratings for reliable protection against dust and water
Supports high mechanical stress with a minimum bending radius suitable for various scenarios
Incorporates copper alloy contact materials for improved conductivity
UL Listed and complies with international safety standards
