Phoenix Contact SAC, 5 m 5 Core Power Cable, Grey Polyurethane 80 °C
- RS Stock No.:
- 268-957
- Mfr. Part No.:
- 1424603
- Manufacturer:
- Phoenix Contact
Bulk discount available
Subtotal (1 unit)*
PHP48,991.07
(exc. VAT)
PHP54,870.00
(inc. VAT)
FREE delivery for orders over ₱3,000.00
Temporarily out of stock
- Shipping from April 09, 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit |
|---|---|
| 1 - 9 | PHP48,991.07 |
| 10 + | PHP45,070.57 |
*price indicative
- RS Stock No.:
- 268-957
- Mfr. Part No.:
- 1424603
- Manufacturer:
- Phoenix Contact
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Phoenix Contact | |
| Product Type | Power Cable | |
| Number of Cores | 5 | |
| Jacket Colour | Grey | |
| Cable Length | 5m | |
| Jacket Material | Polyurethane | |
| Outside Diameter | 9.1 mm | |
| Voltage | 63 V | |
| Minimum Operating Temperature | 80°C | |
| Cable CSA | 5 x 1.5 mm² | |
| Standards/Approvals | IEC 61076-2-111, EAC, DIN VDE 0472, RoHS, DIN EN 60811-404, UL 758/1581, DIN EN 60332-1-2, UL 758/1581 FT1, DIN EN 50267-2-1, cUL Listed, UL Listed | |
| Series | SAC | |
| Maximum Operating Temperature | 80°C | |
| Conductor Material | Bare Copper Wire | |
| Select all | ||
|---|---|---|
Brand Phoenix Contact | ||
Product Type Power Cable | ||
Number of Cores 5 | ||
Jacket Colour Grey | ||
Cable Length 5m | ||
Jacket Material Polyurethane | ||
Outside Diameter 9.1 mm | ||
Voltage 63 V | ||
Minimum Operating Temperature 80°C | ||
Cable CSA 5 x 1.5 mm² | ||
Standards/Approvals IEC 61076-2-111, EAC, DIN VDE 0472, RoHS, DIN EN 60811-404, UL 758/1581, DIN EN 60332-1-2, UL 758/1581 FT1, DIN EN 50267-2-1, cUL Listed, UL Listed | ||
Series SAC | ||
Maximum Operating Temperature 80°C | ||
Conductor Material Bare Copper Wire | ||
- COO (Country of Origin):
- PL

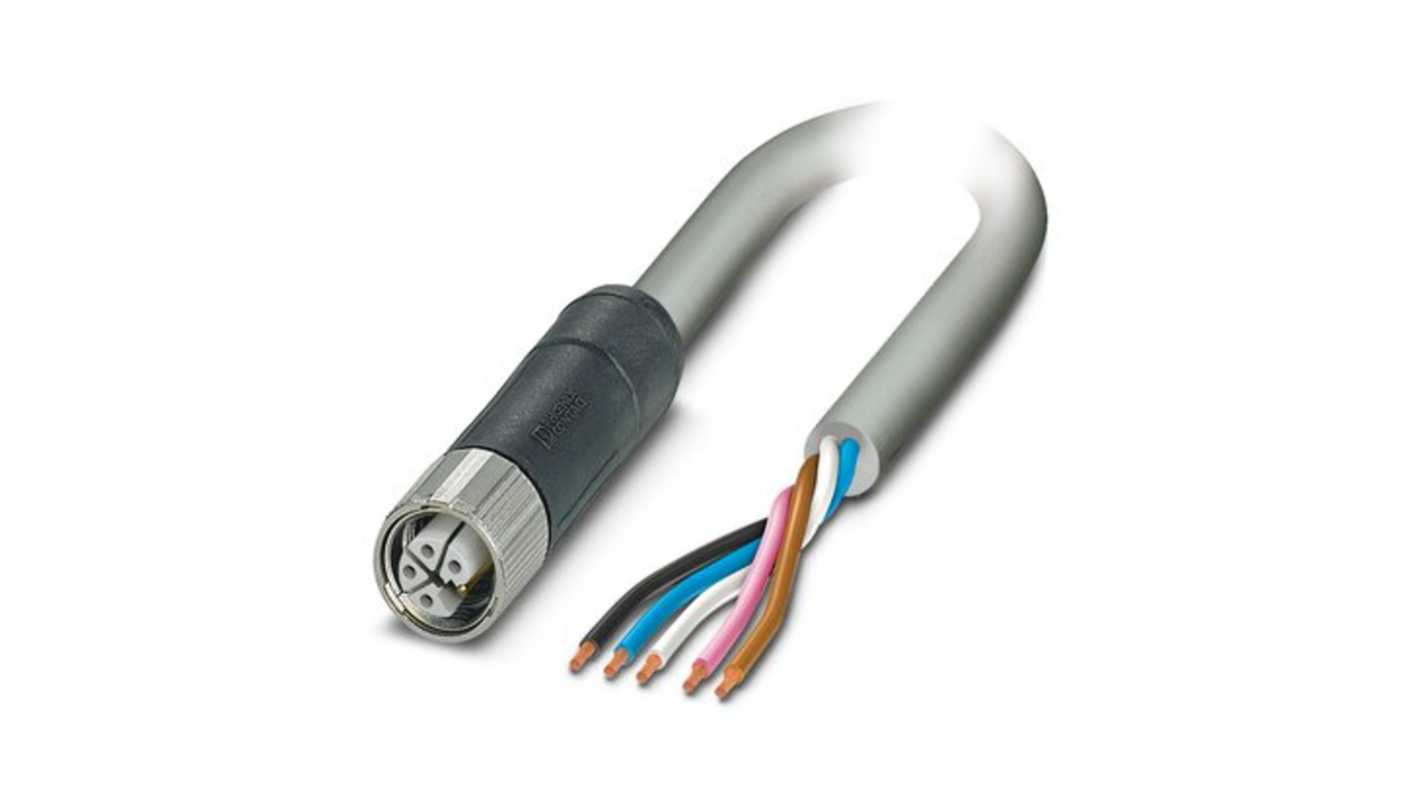

The Phoenix Contact Power cable is an ideal solution for efficient and reliable power supply applications. Featuring a robust design with five positions, it ensures a secure connection while its PUR halogen-free construction contributes to a safer environment. The cable is grey in colour and provides a generous length of 5 meters, allowing for flexible installation in various contexts.
Durable design withstands up to 5 million bending cycles for longevity
Flammability rating according to UL 94 V0 enhances safety measures
Electrical properties ensure high insulation resistance for dependable reliability
