Wurth Elektronik 10 μF Surface Polymer Capacitor, 80 V dc

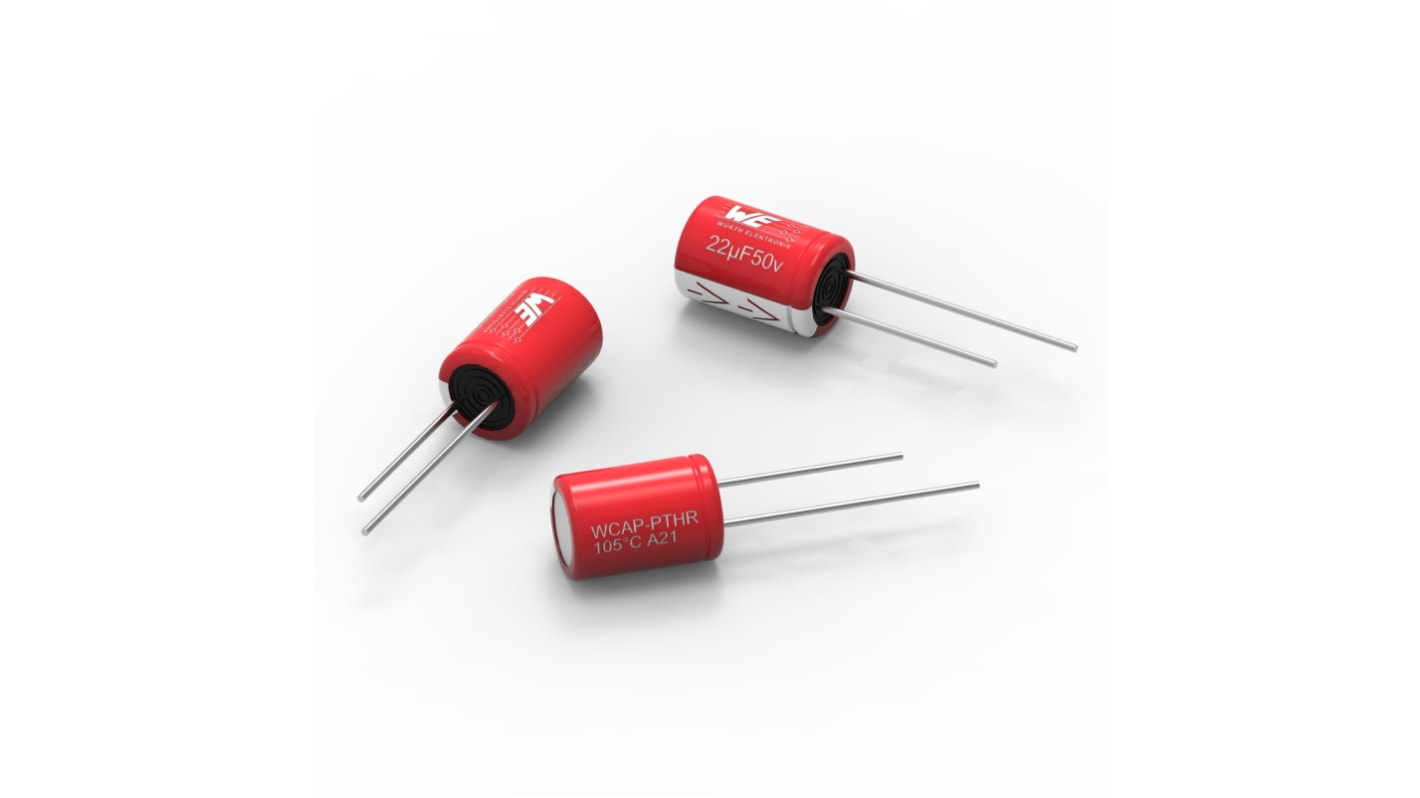

This image is representative of the product range

View all Polymer Capacitors
Bulk discount available

Subtotal (1 tape of 10 units)*

PHP721.28

(exc. VAT)

PHP807.83

(inc. VAT)

Add to Basket
Select or type quantity
Orders below PHP3,000.00 (exc. VAT) cost PHP150.00.
In Stock
  • 720 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per Unit
Per Tape*
10 - 90PHP72.128PHP721.28
100 - 190PHP68.635PHP686.35
200 - 390PHP65.315PHP653.15
400 +PHP59.32PHP593.20

*price indicative

Packaging Options:
RS Stock No.:
257-0047
Mfr. Part No.:
870056174001
Manufacturer:
Wurth Elektronik
Find similar products by selecting one or more attributes.
Select all

Brand

Wurth Elektronik

Technology

Conductive Polymer Aluminium Solid

Product Type

Polymer Capacitor

Capacitance

10μF

Voltage

80 V dc

Mount Type

Surface

Package/Case

Plastic

Lead Pitch

3.5mm

Tolerance

±20 %

Maximum Operating Temperature

105°C

Length

8mm

Series

WCAP-PTHR

Lifetime

2000 h

Automotive Standard

No

Dissipation Factor

12%

Ripple Current

1900mA

Leakage Current

160μA

Minimum Operating Temperature

-55°C

Diameter

8 mm

The Wurth Elektronik aluminium polymer capacitors with ultra high permissible ripple current and low ESR over high frequency range. It consist of an operating temperature of 55°C to +105°C. It is used for low ripple voltage at the switching.

Capacitance value is 10 μF

Voltage rating is 80 V

Endurance rating is 2000 h

Used in high-end power supply, industrial computer, charger, digital set-top box
