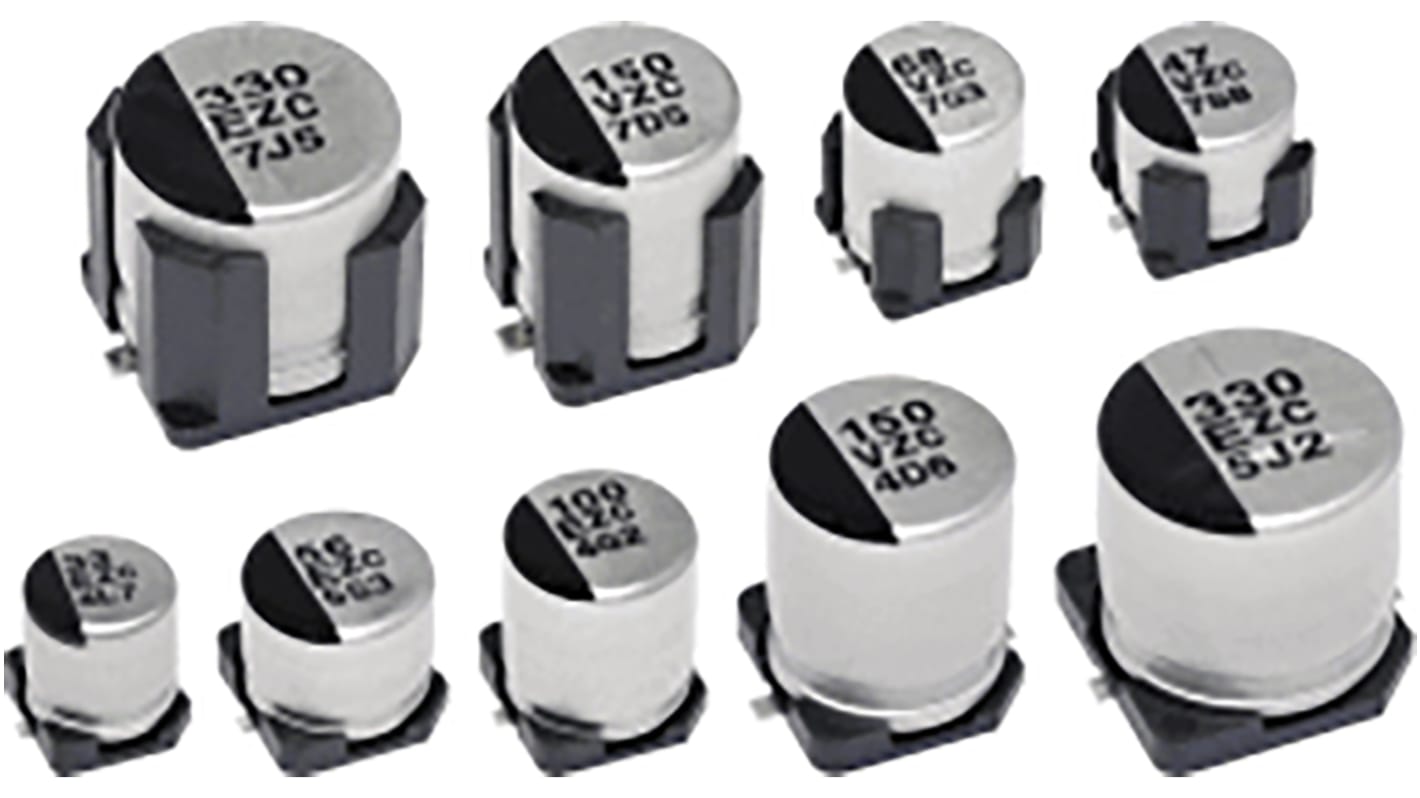

Panasonic 47μF Surface Mount Polymer Capacitor, 80V dc

RS Stock No.:: 179-3424
Mfr. Part No.:: EEHZC1K470P
Manufacturer:: Panasonic

Panasonic 47μF Surface Mount Polymer Capacitor, 80V dc

Bulk discount available

Subtotal (1 reel of 500 units)**

PHP21,582.00

(exc. VAT)

PHP24,172.00

(inc. VAT)

4000 In Global stock for delivery NCR Plus within 10 working day(s), rest of PH within 14 working days*

* Delivery dates may change based on your chosen quantity and delivery address.

FREE delivery for over PHP3,000.00 (ex VAT)

Real time qty checker

Units	Per Unit	Per Reel**
500 - 1000	PHP43.164	PHP21,582.00
1500 +	PHP41.965	PHP20,982.50

**price indicative

RS Stock No.:: 179-3424
Mfr. Part No.:: EEHZC1K470P
Manufacturer:: Panasonic

Panasonic Series ZC Polymer Capacitor, 47μF Capacitance, 80V DC Voltage - EEHZC1K470P

This polymer capacitor is a hybrid electrochemical device designed for surface mount applications. With a capacitance rating of 47 μF and a maximum voltage of 80V DC, this low ESR component has compact dimensions of 10mm in diameter and a height of 12mm. Developed with aluminium dielectric material, it offers reliable performance in a variety of electronic circuits.

Features & Benefits

• High voltage capability supports a wide range of applications
• Low equivalent series resistance enhances circuit efficiency
• Operating temperature range from -55 °C to +125 °C for versatility
• Designed to meet AEC-Q200 standards for automotive reliability
• Leakage current of 37.6 μA minimises energy loss
• Tolerance of ±20 % allows for design flexibility

Applications

• Used with automotive electronics for reliable performance
• Ideal for power supply circuits demanding high capacitance
• Suitable for requiring surface mount technology
• Utilised in devices needing stable performance under varying temperatures
• Commonly integrated in electronic circuits with space constraints

What is the expected lifespan of this component under typical operating conditions?

The expected lifetime of the capacitor is approximately 1000 hours at its maximum operating temperature of +125 °C, making it suitable for high-temperature applications.

How does the tolerance rating impact its use in high-precision applications?

With a tolerance of ±20 %, the component provides design flexibility

however, for high-precision applications, careful consideration should be given to allowable variations in capacitance.

What benefits does the low equivalent series resistance provide in electronic circuits?

A low equivalent series resistance (ESR) significantly reduces heat generation and improves the overall efficiency of the circuit, enhancing the reliability of power delivery in sensitive applications.

How does this capacitor compare to traditional electrolytic capacitors in performance?

This hybrid capacitor typically boasts lower ESR, better thermal stability, and a longer lifespan compared to conventional electrolytic capacitors, which enhances its performance in demanding environments.

What implications does the polarised nature of the capacitor have for installation?

As a polarised component, it must be installed in the correct orientation in circuits, as reversing polarity can lead to failure, highlighting the importance of following design specifications carefully.

For these non-cancellable (NC), and non-returnable (NR) products, Terms and Conditions apply.

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Panasonic
	Technology	Hybrid
	Capacitance	47µF
	Voltage	80V dc
	Dielectric Material Family	Aluminium
	Mounting Type	Surface Mount
	Equivalent Series Resistance	36mΩ
	Lead Pitch	4.6mm
	Tolerance	±20%
	Length	10.2mm
	Height	12mm
	Maximum Operating Temperature	+125°C
	Dimensions	10 (Dia) x 10.2mm
	Series	ZC
	Automotive Standard	AEC-Q200
	Minimum Operating Temperature	-55°C
	Polarised	Polar
	Lifetime	1000h
	Leakage Current	37.6 μA
	Dissipation Factor	8%
	Diameter	10mm
	Ripple Current	1.36A
