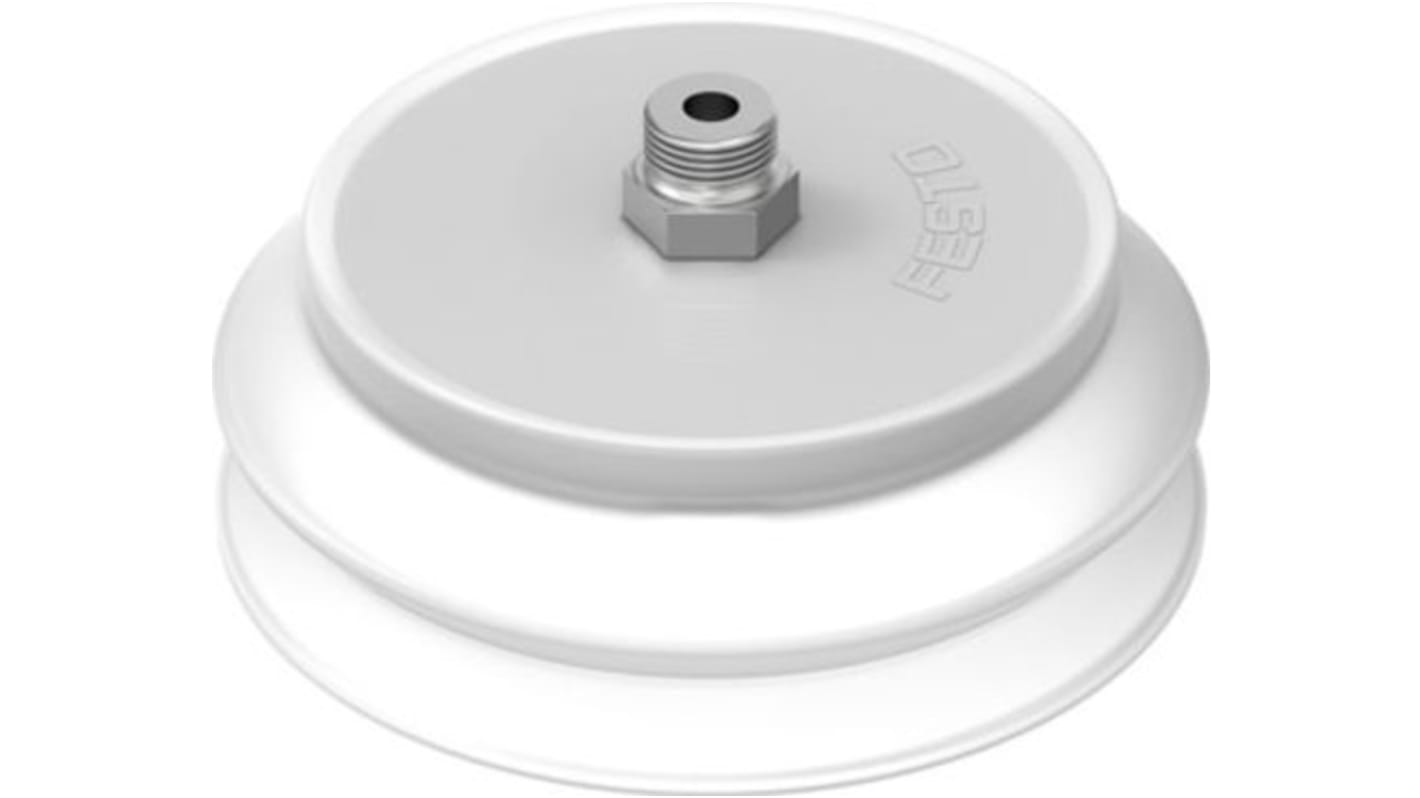

Name: Festo 125 mm Bellow Silicone Suction Cup VASB-125-3/8-SI-B G 3/8
Brand: Festo
SKU: 203-8217
Price: 8428.04 PHP
Availability: InStock

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Festo
	Connection Size	G 3/8
	Product Type	Suction Cup
	Pad Diameter	125mm
	Pad Type	Bellow
	Pad Material	Silicone
	Connection Type	Top
	Series	VASB
	Holding Force	610N
	Vacuum Entry Direction	Via Vacuum Port
	Standards/Approvals	RoHS

	Select all
	Brand Festo
	Connection Size G 3/8
	Product Type Suction Cup
	Pad Diameter 125mm
	Pad Type Bellow
	Pad Material Silicone
	Connection Type Top
	Series VASB
	Holding Force 610N
	Vacuum Entry Direction Via Vacuum Port
	Standards/Approvals RoHS

DataSheet - VASB-125-3/8-SI-B

COO (Country of Origin):: DE

Festo VASB Series Suction Cup, 125mm Pad Diameter, 610N Holding Force - VASB-125-3/8-SI-B, Numeric Part Number: 1387375

This suction cup is a silicone bellows pad designed to enable secure vacuum handling in industrial automation contexts. It connects via a top-mounted vacuum port and is intended for applications requiring substantial gripping capability on a variety of surfaces while conforming to RoHS requirements.

Features and Benefits:

• Holding force 610N delivers high-force handling for heavy picks
• Top G3/8 connection simplifies inline vacuum fitting
• Bellows pad profile offers improved surface conformity
• Silicone construction provides good adaptability to irregular surfaces
• RoHS compliance supports restricted-substance requirements

Applications

• Suitable for pick-and-place of heavy components on assembly lines
• Ideal for handling delicate electronic housings requiring gentle contact
• Used for gripping painted or coated panels with variable flatness
• Can be used with vacuum grippers in mechanical material-handling systems

What connection arrangement does it use for vacuum supply?

The vacuum is supplied via a top-mounted G3/8 port allowing direct attachment to standard vacuum fittings.

How does the pad material affect contact with workpieces?

The silicone composition gives elastic contact, improving seal formation on uneven or textured surfaces while reducing the risk of marking.

What functional advantage does the bellows design provide?

The folded bellows geometry increases compliance and stroke capability, enabling reliable pick-up despite small height differences between parts.

Is this component suitable for applications constrained by restricted substances?

It meets RoHS requirements, making it appropriate for installations where restricted-substance compliance is required.
