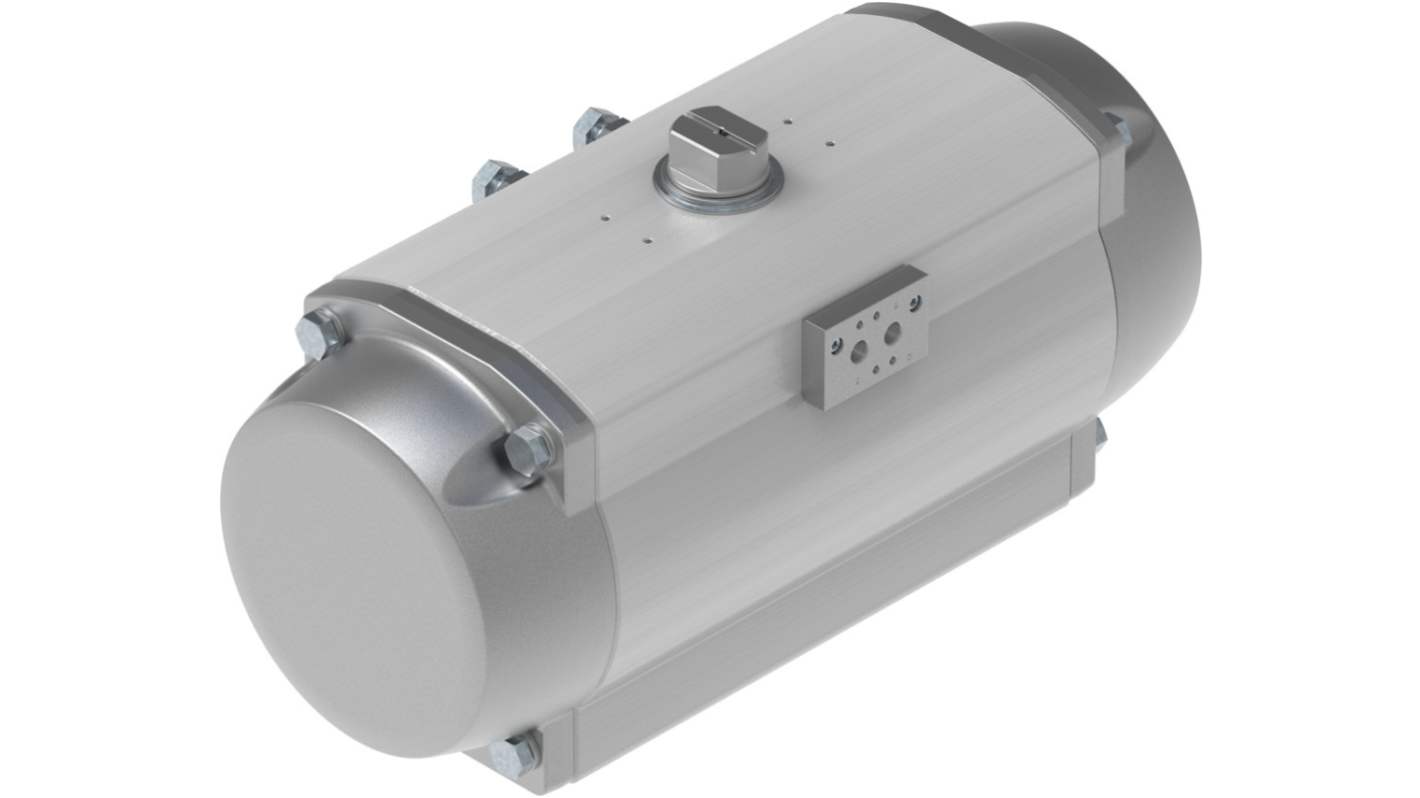

Festo DFPD Series 8 bar Single Acting Action Rotary Actuator, 1.2m Bore, 90 °
- RS Stock No.:
- 281-1707
- Mfr. Part No.:
- DFPD-1200-RP-90-RS60-F1012
- Manufacturer:
- Festo
Subtotal (1 unit)*
PHP143,558.82
(exc. VAT)
PHP160,785.88
(inc. VAT)
FREE delivery for orders over ₱5,000.00
Stocked by manufacturer
- Ready to ship from January 06, 2027
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit |
|---|---|
| 1 + | PHP143,558.82 |
*price indicative
- RS Stock No.:
- 281-1707
- Mfr. Part No.:
- DFPD-1200-RP-90-RS60-F1012
- Manufacturer:
- Festo
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Festo | |
| Product Type | Rotary Actuator | |
| Action Type | Single Acting | |
| Bore Diameter | 1.2m | |
| Connection Thread Standard | ISO 5211 | |
| Series | DFPD | |
| Maximum Operating Pressure | 8 bar | |
| Maximum Torque Rating | 796.3Nm | |
| Minimum Operating Temperature | -20°C | |
| Angle of Rotation | 90° | |
| Maximum Operating Temperature | 60°C | |
| Weight | 43kg | |
| Model Number | 8084143 | |
| Select all | ||
|---|---|---|
Brand Festo | ||
Product Type Rotary Actuator | ||
Action Type Single Acting | ||
Bore Diameter 1.2m | ||
Connection Thread Standard ISO 5211 | ||
Series DFPD | ||
Maximum Operating Pressure 8 bar | ||
Maximum Torque Rating 796.3Nm | ||
Minimum Operating Temperature -20°C | ||
Angle of Rotation 90° | ||
Maximum Operating Temperature 60°C | ||
Weight 43kg | ||
Model Number 8084143 | ||
- COO (Country of Origin):
- IT
Festo DFPD Series Rotary Actuator, 90° Rotary Angle, 1200mm Bore - DFPD-1200-RP-90-RS60-F1012, Numeric Part Number: 8084143
This rotary actuator is a single-action pneumatic device designed for efficient performance in various industrial applications. With a substantial bore of 1200mm and a swivel angle of up to 90°, it delivers impressive torque output, making it ideal for high-demand environments. The actuator operates under pressures ranging from 2 bar to 8 bar, ensuring versatility and reliability throughout its operation.
Features & Benefits
• Delivers high performance with a torque of 796.3 Nm at nominal pressure
• Utilises a rack and pinion design for efficient operation and precision
• Allows for optional mounting positions to fit specific installation needs
• Crafted from corrosion-resistant materials for durability in challenging environments
Applications
• Ideal for automation tasks requiring precise control in manufacturing
• Suitable for valve actuation in chemical processing industries
• Used for opening and closing mechanisms in pneumatic systems
• Effective within explosion protection zones as certified by applicable standards
• Applied in assembly lines where rapid and reliable movement is essential
What are the operational limits regarding pressure and temperature?
The device operates effectively within pressures from 2 bar to 8 bar and functions in ambient temperatures ranging from -20°C to +80°C, offering a versatile application range in various environmental conditions.
What is the maximum permissible torque for safe operation?
The actuator's torque must not exceed the maximum permissible values specified in ISO 5211, ensuring safe operation and compliance with standard mounting flange sizes.
Can this actuator be used in hazardous environments?
Yes, it is certified for use in explosion protection zones 1 and 2, making it suitable for challenging environments with potentially explosive materials, provided it follows applicable standards.
What maintenance considerations should be noted for optimal performance?
Lubricated operation is possible and recommended, as it enhances performance reliability. Gentle cleaning of components and regular inspection for wear is advisable to maintain operational integrity.
How does the safety function activate in case of service interruption?
When the compressed air supply is switched off, the actuator's safety function engages automatically, moving to a predetermined position using spring force, ensuring reliable stop functionality during power failures.
