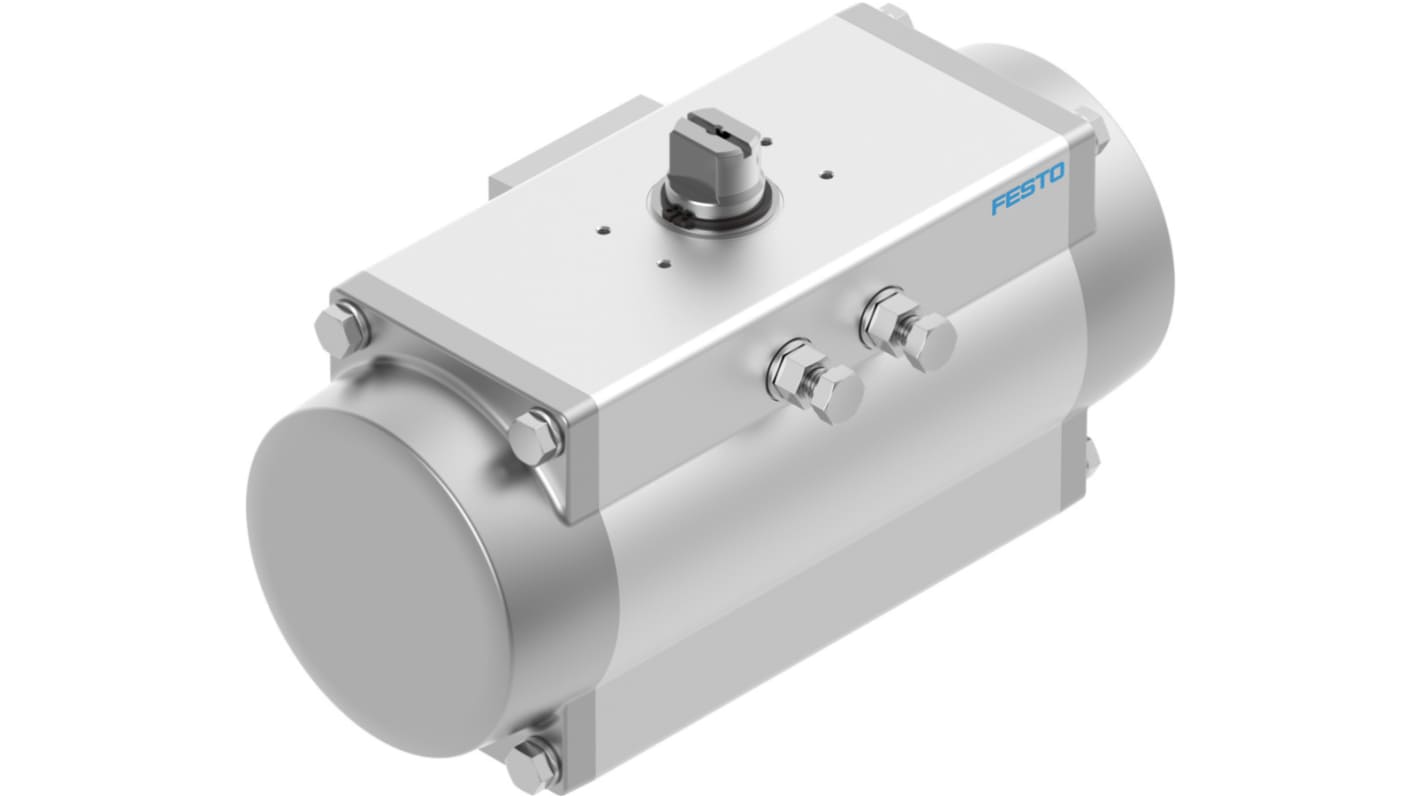

Festo DFPD Series 8 bar Double Acting Action Pneumatic Rotary Actuator, 300mm Bore, 90 °
- RS Stock No.:
- 280-8196
- Mfr. Part No.:
- DFPD-300-RP-90-RD-F0710-R3-EP
- Manufacturer:
- Festo
Subtotal (1 unit)*
PHP51,218.20
(exc. VAT)
PHP57,364.38
(inc. VAT)
FREE delivery for orders over ₱5,000.00
Stocked by manufacturer
- Ready to ship from December 07, 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit |
|---|---|
| 1 + | PHP51,218.20 |
*price indicative
- RS Stock No.:
- 280-8196
- Mfr. Part No.:
- DFPD-300-RP-90-RD-F0710-R3-EP
- Manufacturer:
- Festo
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Festo | |
| Product Type | Pneumatic Rotary Actuator | |
| Action Type | Double Acting | |
| Connection Thread Standard | ISO 5211 | |
| Bore Diameter | 300mm | |
| Series | DFPD | |
| Maximum Operating Pressure | 8 bar | |
| Angle of Rotation | 90° | |
| Maximum Torque Rating | 301.9Nm | |
| Minimum Operating Temperature | -20°C | |
| Maximum Operating Temperature | 60°C | |
| Weight | 11.2kg | |
| Model Number | 8048131 | |
| Select all | ||
|---|---|---|
Brand Festo | ||
Product Type Pneumatic Rotary Actuator | ||
Action Type Double Acting | ||
Connection Thread Standard ISO 5211 | ||
Bore Diameter 300mm | ||
Series DFPD | ||
Maximum Operating Pressure 8 bar | ||
Angle of Rotation 90° | ||
Maximum Torque Rating 301.9Nm | ||
Minimum Operating Temperature -20°C | ||
Maximum Operating Temperature 60°C | ||
Weight 11.2kg | ||
Model Number 8048131 | ||
- COO (Country of Origin):
- IT
Festo DFPD Series Pneumatic Rotary Actuator, 300mm Bore, 90 Rotary Angle - DFPD-300-RP-90-RD-F0710-R3-EP, Numeric Part Number: 8048131
This pneumatic rotary actuator is designed for precision automation and control applications. With a 90-degree swivel angle and a robust 300mm bore, it seamlessly integrates into various industrial settings. This double-acting rotary actuator operates with a maximum pressure of 8 bar, ensuring reliable performance in demanding environments.
Features & Benefits
• Double-acting action for efficient operational control
• Designed for high pressure, supporting up to 8 bar
• Versatile G 1/4 port connection for easy installation
• Adjustable end-position settings enhance operational flexibility
• Anodised aluminium construction offers durability and corrosion resistance
Applications
• Utilised in automation systems for precise valve control
• Ideal for requiring a 90-degree rotation
• Suitable for machinery needing reliable actuation under high pressure
• Effective in environments with stringent corrosion resistance requirements
What is the torque capacity at nominal operating pressure?
The actuator provides a torque of 301.9 Nm at both the 0° and 90° swivel angles, ensuring effective control during operation.
How does the design ensure reliable operation in hazardous conditions?
Designed to meet Explosion Protection certifications, it ensures safe usage in Zone 1 and Zone 2 environments, accommodating specific gas and dust categories.
Is lubrication necessary for the actuators operation?
Lubricated operation is recommended for optimal performance, ensuring that the internal components maintain their functionality and longevity under pressure.
