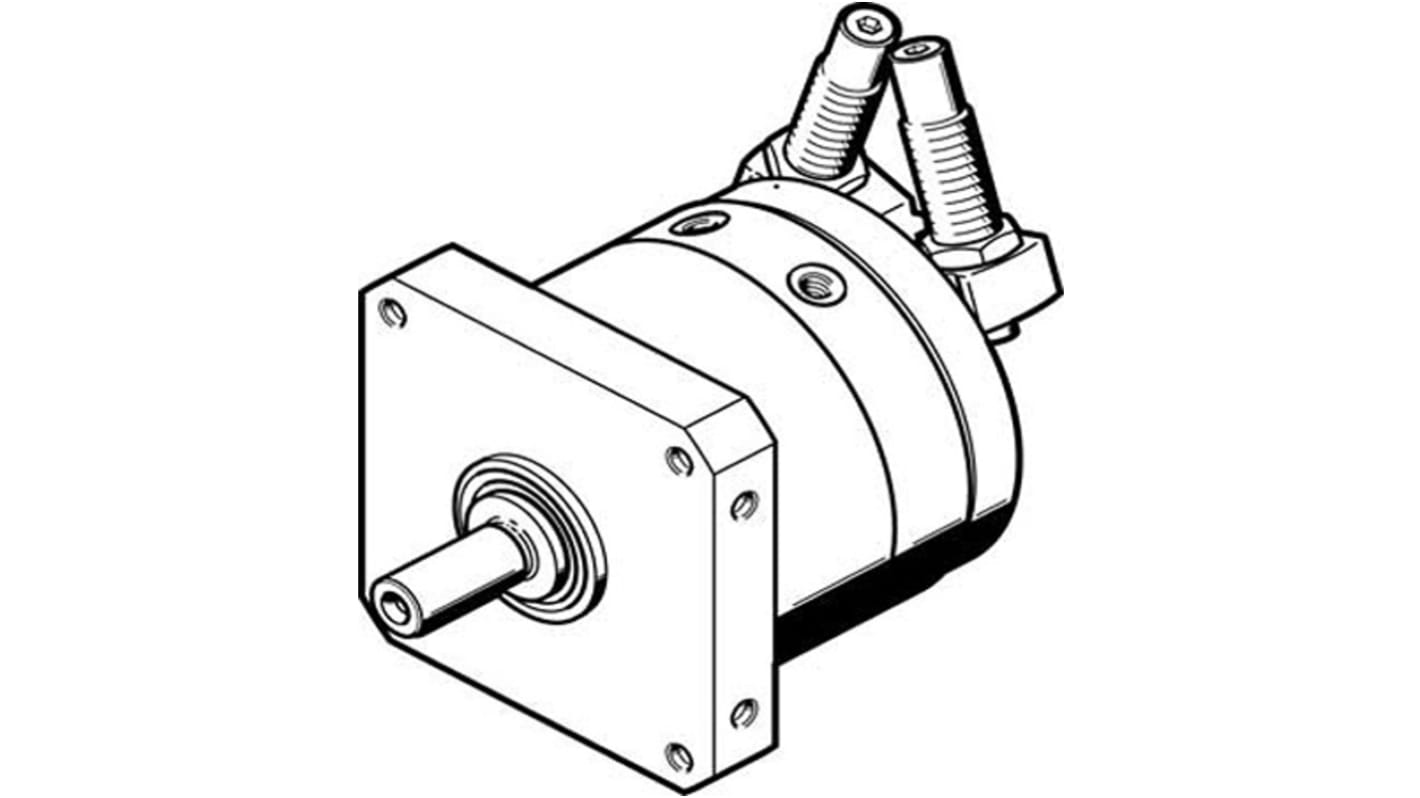

Festo 10 bar Double Acting Action Pneumatic Rotary Actuator, 16 mm Bore, 246 °
- RS Stock No.:
- 271-7119
- Mfr. Part No.:
- DSM-T-16-270-CC-A-B
- Manufacturer:
- Festo
Subtotal (1 unit)*
PHP48,541.82
(exc. VAT)
PHP54,366.84
(inc. VAT)
FREE delivery for orders over ₱3,000.00
Temporarily out of stock
- Shipping from April 10, 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit |
|---|---|
| 1 + | PHP48,541.82 |
*price indicative
- RS Stock No.:
- 271-7119
- Mfr. Part No.:
- DSM-T-16-270-CC-A-B
- Manufacturer:
- Festo
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Festo | |
| Product Type | Pneumatic Rotary Actuator | |
| Shaft Type | Steel Nickel Plated | |
| Action Type | Double Acting | |
| Bore Size | 16 mm | |
| Maximum Operating Pressure | 10 bar | |
| Cushioning Type | Shock Absorber at Both Ends | |
| Minimum Operating Temperature | -10°C | |
| Maximum Torque Rating | 5Nm | |
| Maximum Radial Force | 75N | |
| Maximum Axial Force | 30N | |
| Angle of Rotation | 246° | |
| Maximum Operating Temperature | 60°C | |
| Standards/Approvals | ISO8573-1:2010 (7:-:-) | |
| Weight | 660g | |
| Port Thread Size | M5 | |
| Select all | ||
|---|---|---|
Brand Festo | ||
Product Type Pneumatic Rotary Actuator | ||
Shaft Type Steel Nickel Plated | ||
Action Type Double Acting | ||
Bore Size 16 mm | ||
Maximum Operating Pressure 10 bar | ||
Cushioning Type Shock Absorber at Both Ends | ||
Minimum Operating Temperature -10°C | ||
Maximum Torque Rating 5Nm | ||
Maximum Radial Force 75N | ||
Maximum Axial Force 30N | ||
Angle of Rotation 246° | ||
Maximum Operating Temperature 60°C | ||
Standards/Approvals ISO8573-1:2010 (7:-:-) | ||
Weight 660g | ||
Port Thread Size M5 | ||
- COO (Country of Origin):
- DE
The Festo semi-rotary drive with tandem rotary vanes and swivel angle is infinitely adjustable across the entire swivel range. The polyurethane ensures a long service life for the rotary vane and sealing system.
High precision with metal fixed stops
