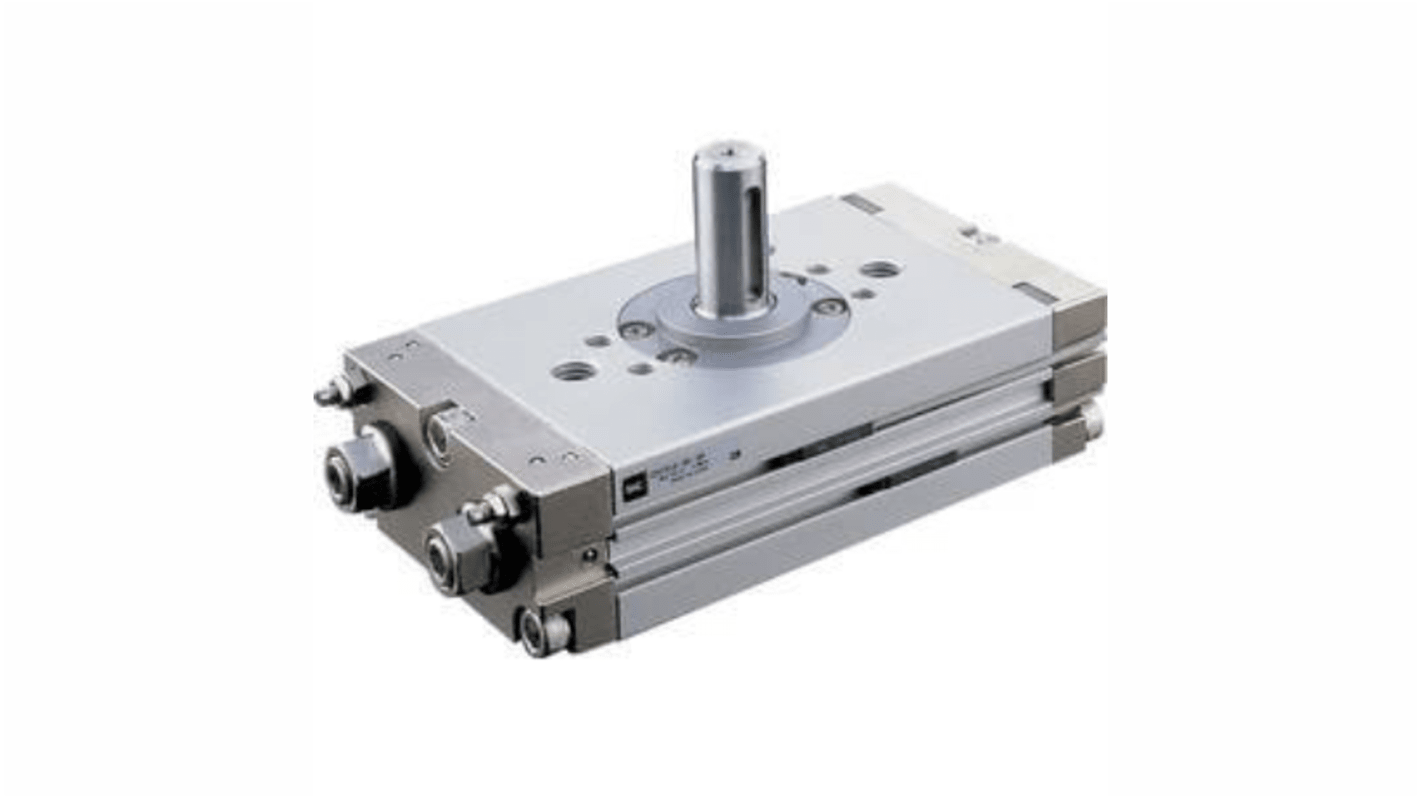

SMC CRQ2 Series 10 bar Rotary Actuator, 20mm Bore, 90 °
- RS Stock No.:
- 254-6166
- Mfr. Part No.:
- CDRQ2BS20-90
- Manufacturer:
- SMC
Subtotal (1 unit)*
PHP32,778.85
(exc. VAT)
PHP36,712.31
(inc. VAT)
FREE delivery for orders over ₱5,000.00
In Stock
- 2 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit |
|---|---|
| 1 + | PHP32,778.85 |
*price indicative
- RS Stock No.:
- 254-6166
- Mfr. Part No.:
- CDRQ2BS20-90
- Manufacturer:
- SMC
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | SMC | |
| Product Type | Rotary Actuator | |
| Shaft Type | Single Shaft | |
| Bore Diameter | 20mm | |
| Series | CRQ2 | |
| Maximum Operating Pressure | 10 bar | |
| Sub Type | Sensor/Actuator | |
| Maximum Radial Force | 49N | |
| Angle of Rotation | 90° | |
| Maximum Torque Rating | 3.66Nm | |
| Width | 63mm | |
| Standards/Approvals | IEC 60204-1 | |
| Weight | 600g | |
| Length | 115mm | |
| Height | 59mm | |
| Port Thread Size | 1/8 in | |
| Select all | ||
|---|---|---|
Brand SMC | ||
Product Type Rotary Actuator | ||
Shaft Type Single Shaft | ||
Bore Diameter 20mm | ||
Series CRQ2 | ||
Maximum Operating Pressure 10 bar | ||
Sub Type Sensor/Actuator | ||
Maximum Radial Force 49N | ||
Angle of Rotation 90° | ||
Maximum Torque Rating 3.66Nm | ||
Width 63mm | ||
Standards/Approvals IEC 60204-1 | ||
Weight 600g | ||
Length 115mm | ||
Height 59mm | ||
Port Thread Size 1/8 in | ||
- COO (Country of Origin):
- JP
The SMC compact rotary, rack and pinion style actuator. Single and double shaft types are available in all sizes. This product uses internal cushioning and the body can be used as a flange. The use of a double piston eliminates backlash. Auto switches are
Low profile
Both single shaft and double shaft are available in all sizes
2 auto switches are mountable on the same side
Rotating angle adjusting range 350° to 370°
