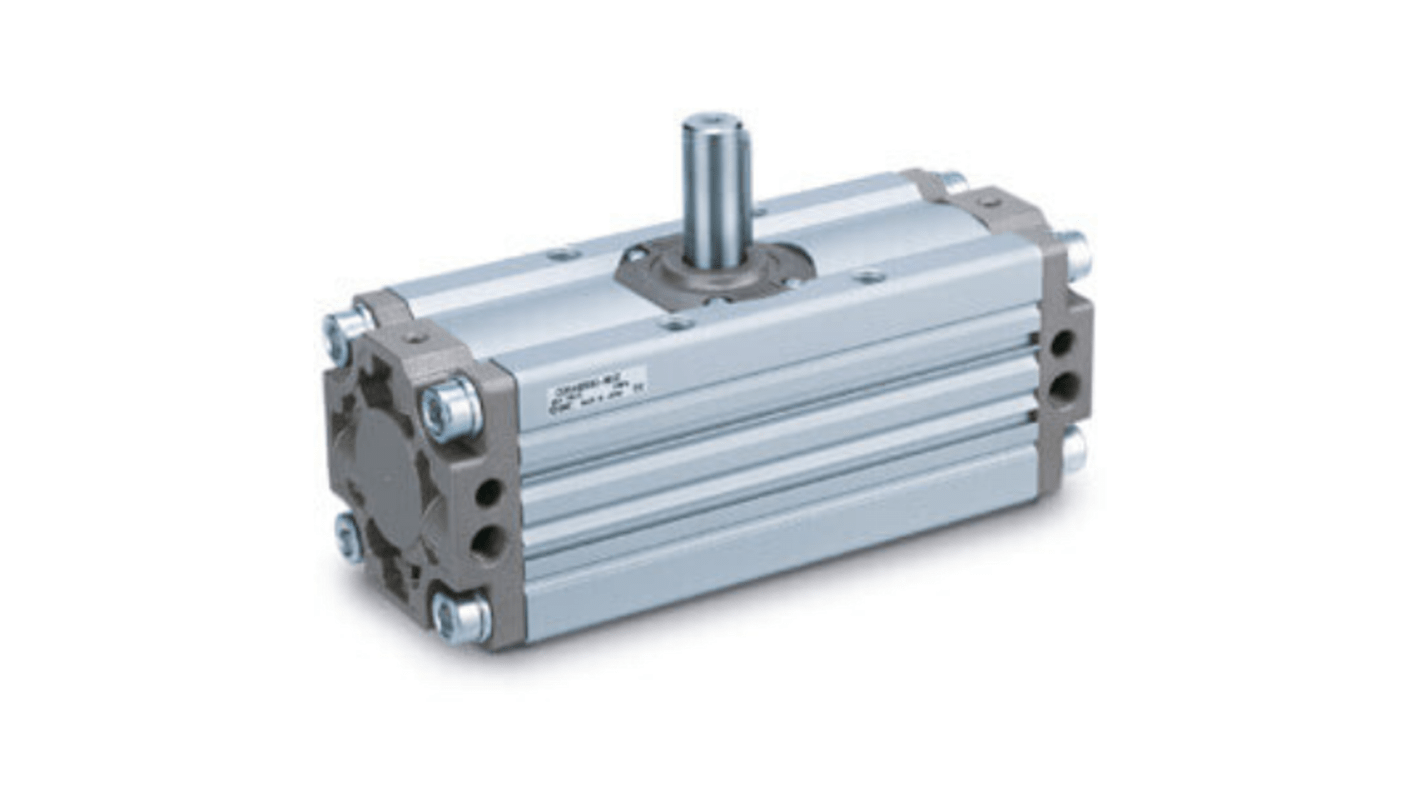

SMC CRA1 Series 10 bar Pneumatic Rotary Actuator, 50mm Bore, 180 °
- RS Stock No.:
- 254-6151
- Mfr. Part No.:
- CDRA1BS50TF-180CZ
- Manufacturer:
- SMC
Subtotal (1 unit)*
PHP35,070.49
(exc. VAT)
PHP39,278.95
(inc. VAT)
FREE delivery for orders over ₱5,000.00
In Stock
- 2 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit |
|---|---|
| 1 + | PHP35,070.49 |
*price indicative
- RS Stock No.:
- 254-6151
- Mfr. Part No.:
- CDRA1BS50TF-180CZ
- Manufacturer:
- SMC
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | SMC | |
| Product Type | Pneumatic Rotary Actuator | |
| Shaft Type | Single Shaft | |
| Shaft Diameter | 15mm | |
| Bore Diameter | 50mm | |
| Series | CRA1 | |
| Maximum Operating Pressure | 10 bar | |
| Cushioning Type | Air Cushion | |
| Minimum Operating Temperature | 0°C | |
| Maximum Torque Rating | 18.5Nm | |
| Angle of Rotation | 180° | |
| Maximum Operating Temperature | 60°C | |
| Height | 98mm | |
| Weight | 1.7kg | |
| Length | 156mm | |
| Width | 63.5mm | |
| Standards/Approvals | No | |
| Port Thread Size | 1/8 in | |
| Select all | ||
|---|---|---|
Brand SMC | ||
Product Type Pneumatic Rotary Actuator | ||
Shaft Type Single Shaft | ||
Shaft Diameter 15mm | ||
Bore Diameter 50mm | ||
Series CRA1 | ||
Maximum Operating Pressure 10 bar | ||
Cushioning Type Air Cushion | ||
Minimum Operating Temperature 0°C | ||
Maximum Torque Rating 18.5Nm | ||
Angle of Rotation 180° | ||
Maximum Operating Temperature 60°C | ||
Height 98mm | ||
Weight 1.7kg | ||
Length 156mm | ||
Width 63.5mm | ||
Standards/Approvals No | ||
Port Thread Size 1/8 in | ||
- COO (Country of Origin):
- JP
The SMC rotary actuator offers compact auto switches which can be mounted from the front with width reduction by 14mm. Bore sizes on standard model are 30, 50, 63, 80, and 100mm. Units may be ordered auto-switch capable and with replaceable cushions. Many
Easy adjustment of cushion valve
Cushion seal is replaceable
