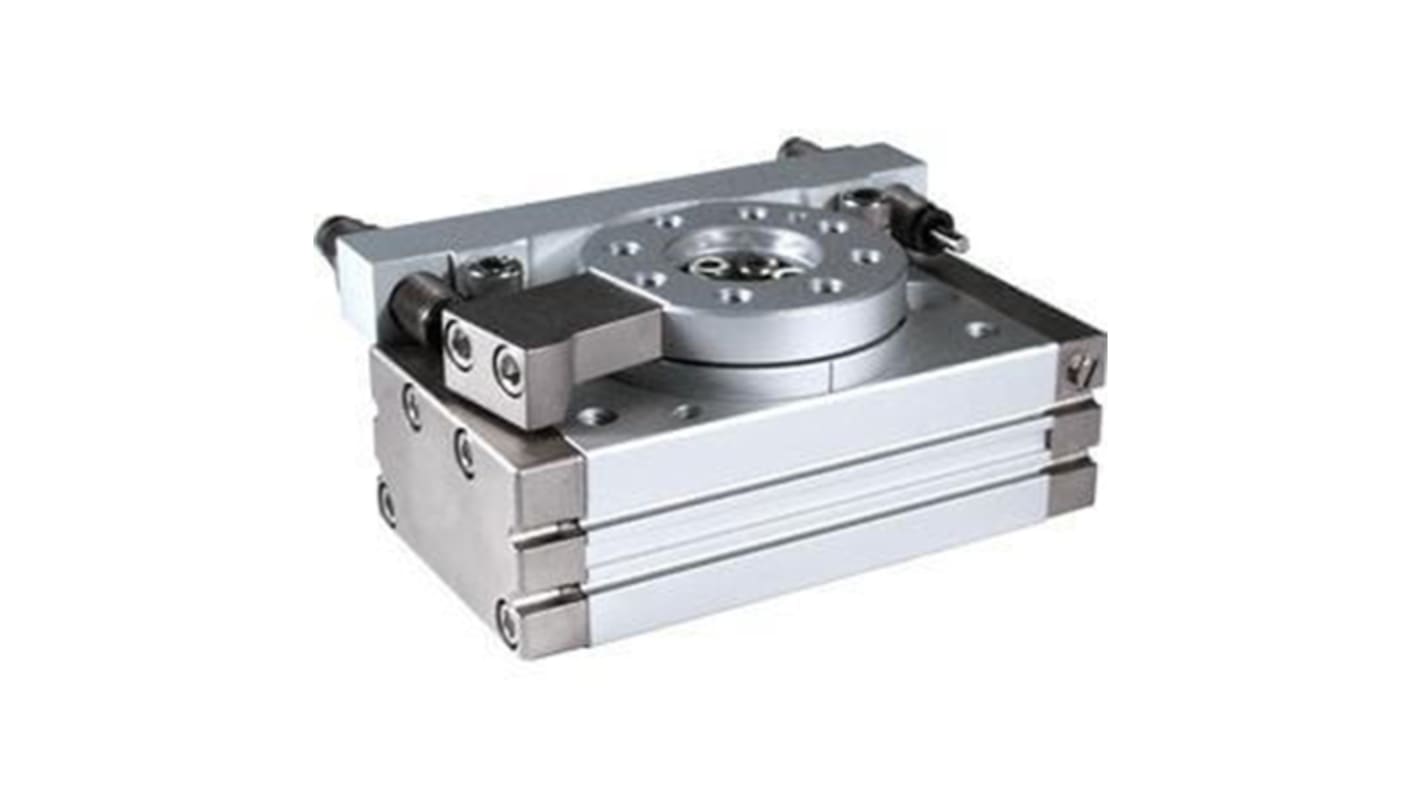

SMC MSQ Series Pneumatic Rotary Actuator, 15mm Bore, 190 °
- RS Stock No.:
- 237-3589
- Mfr. Part No.:
- MSQB10H2
- Manufacturer:
- SMC
Subtotal (1 unit)*
PHP55,544.01
(exc. VAT)
PHP62,209.29
(inc. VAT)
FREE delivery for orders over ₱5,000.00
Stocked by manufacturer
- Ready to ship from October 30, 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit |
|---|---|
| 1 + | PHP55,544.01 |
*price indicative
- RS Stock No.:
- 237-3589
- Mfr. Part No.:
- MSQB10H2
- Manufacturer:
- SMC
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | SMC | |
| Product Type | Pneumatic Rotary Actuator | |
| Bore Diameter | 15mm | |
| Series | MSQ | |
| Minimum Operating Temperature | 0°C | |
| Angle of Rotation | 190° | |
| Maximum Operating Temperature | 60°C | |
| Standards/Approvals | RoHS | |
| Port Thread Size | M5 x 0.8 | |
| Select all | ||
|---|---|---|
Brand SMC | ||
Product Type Pneumatic Rotary Actuator | ||
Bore Diameter 15mm | ||
Series MSQ | ||
Minimum Operating Temperature 0°C | ||
Angle of Rotation 190° | ||
Maximum Operating Temperature 60°C | ||
Standards/Approvals RoHS | ||
Port Thread Size M5 x 0.8 | ||
- COO (Country of Origin):
- JP
The SMC MSQ series compact rotary table is ideal for material transfer applications. It incorporates load bearings and a mounting face with a rack-and-pinion style rotary actuator. It has 20 size with rotational adjustments from 0-190 degrees, and auto switch capability. In additional feature include a hollow shaft and direct load mounting possibility.
90° and 180° rotation available
Rotary table w/external shock absorber
