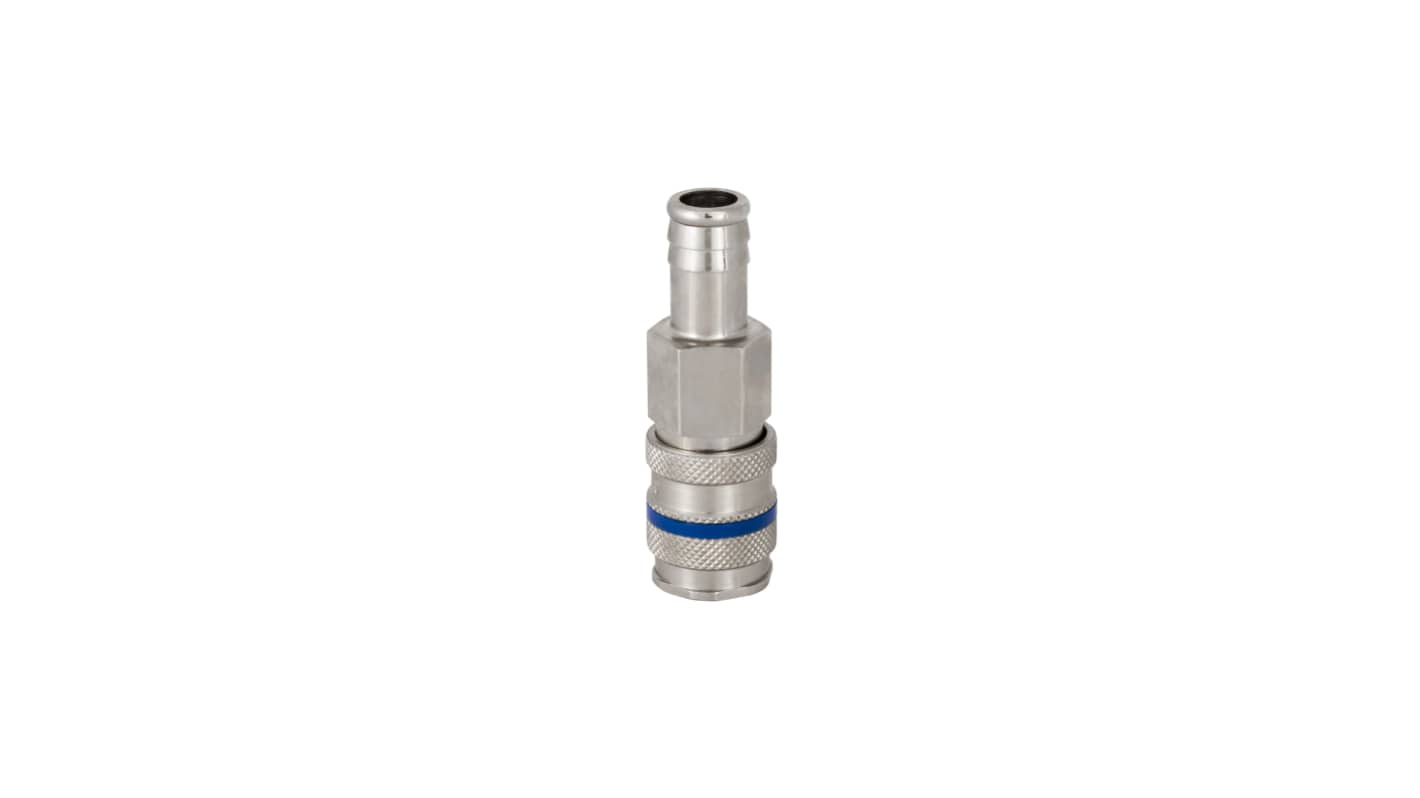

RS PRO Steel, Brass Pneumatic Quick Connect Coupling, Female, Male 10mm Single Shut Off (One Side Is with Valve)
- RS Stock No.:
- 667-1920
- Manufacturer:
- RS PRO
Bulk discount available
View bulk pricing optionsSubtotal (1 unit)*
PHP1,471.95
(exc. VAT)
PHP1,648.58
(inc. VAT)
FREE delivery for orders over ₱3,000.00
In Stock
- 130 unit(s) ready to ship from another location
- Plus 100 unit(s) shipping from August 25, 2026
- Plus 150 unit(s) shipping from September 02, 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit |
|---|---|
| 1 - 5 | PHP1,471.95 |
| 6 - 24 | PHP1,427.77 |
| 25 + | PHP1,175.06 |
*price indicative
Sponsored
- RS Stock No.:
- 667-1920
- Manufacturer:
- RS PRO
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Product Type | Pneumatic Quick Connect Coupling | |
| Series | 25 | |
| Sub Type | Single Shut Off (One Side Is with Valve) | |
| Hose Barb Connection | 10mm | |
| Material | Steel, Brass | |
| Thread Gender | Female, Male | |
| Minimum Operating Temperature | -20°C | |
| Maximum Operating Temperature | 100°C | |
| Maximum Operating Pressure | 35 bar | |
| Finish | Nickel Plated | |
| Standards/Approvals | CEJN 320, JWL 520, JWL 530, Legris, Parker PEF, Rectus 25, Rectus 26, TST 026 | |
| Select all | ||
|---|---|---|
Brand RS PRO | ||
Product Type Pneumatic Quick Connect Coupling | ||
Series 25 | ||
Sub Type Single Shut Off (One Side Is with Valve) | ||
Hose Barb Connection 10mm | ||
Material Steel, Brass | ||
Thread Gender Female, Male | ||
Minimum Operating Temperature -20°C | ||
Maximum Operating Temperature 100°C | ||
Maximum Operating Pressure 35 bar | ||
Finish Nickel Plated | ||
Standards/Approvals CEJN 320, JWL 520, JWL 530, Legris, Parker PEF, Rectus 25, Rectus 26, TST 026 | ||
- COO (Country of Origin):
- TR
RS PRO Pneumatic Quick Connect Coupling Steel 10mm Hose Barb
Set up pneumatic equipment and machinery quickly and easily with these couplings for pressurised gas systems. The pneumatic quick-connect couplings are a highly effective choice for maintaining pressure.
Versatile and reliable, they function at up to 35 bars of pressure and between temperatures of -20°C to +100°C. Their 10 mm hose barb fittings can link up sections of pipe, tube or hose simply and an extra-tight fit is achieved with the nitrile rubber seal. It maintains pressure without the need for potentially contaminating sealants. Dependable and precise connections are achieved thanks to the couplings' small dimensions, a high flow rate and a low-pressure drop.
The connectors are interchangeable with the ULTRA-FLO series and come with a nickel-plated finish for durability and protection. A shut-off valve lets you safely separate the coupling from the main body.
From robotic devices to dental equipment, these pneumatic quick-connect coupling connectors are used in a broad range of pneumatic systems.
Features and Benefits
• Connection standards of CEJN 320, JWL 520, JWL 530, Parker PEF, Rectus 25, Rectus 26, TST 026
• Male coupling
• Hose barb connection of 10 mm
• Made of steel with a nickel-plated finish
• Nitrile rubber seal
• Operating temperature range of -20°C to +100°C
RS PRO
RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards; they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.
