Festo Brass Pneumatic Quick Connect Coupling Male G
- RS Stock No.:
- 181-6169
- Mfr. Part No.:
- KS3-1/4-I
- Manufacturer:
- Festo
Bulk discount available
Subtotal (1 unit)*
PHP394.52
(exc. VAT)
PHP441.86
(inc. VAT)
Stock information currently inaccessible - Please check back later
Units | Per Unit |
|---|---|
| 1 - 4 | PHP394.52 |
| 5 - 9 | PHP388.99 |
| 10 + | PHP383.52 |
*price indicative
- RS Stock No.:
- 181-6169
- Mfr. Part No.:
- KS3-1/4-I
- Manufacturer:
- Festo
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Festo | |
| Product Type | Pneumatic Quick Connect Coupling | |
| Thread Standard | G | |
| Thread Size | 1/4 in | |
| Series | KS3 | |
| Material | Brass | |
| Thread Gender | Male | |
| Minimum Operating Temperature | -10°C | |
| Maximum Operating Temperature | 60°C | |
| Maximum Operating Pressure | 12 bar | |
| Standards/Approvals | RoHS | |
| Finish | Nickel Plated | |
| Select all | ||
|---|---|---|
Brand Festo | ||
Product Type Pneumatic Quick Connect Coupling | ||
Thread Standard G | ||
Thread Size 1/4 in | ||
Series KS3 | ||
Material Brass | ||
Thread Gender Male | ||
Minimum Operating Temperature -10°C | ||
Maximum Operating Temperature 60°C | ||
Maximum Operating Pressure 12 bar | ||
Standards/Approvals RoHS | ||
Finish Nickel Plated | ||

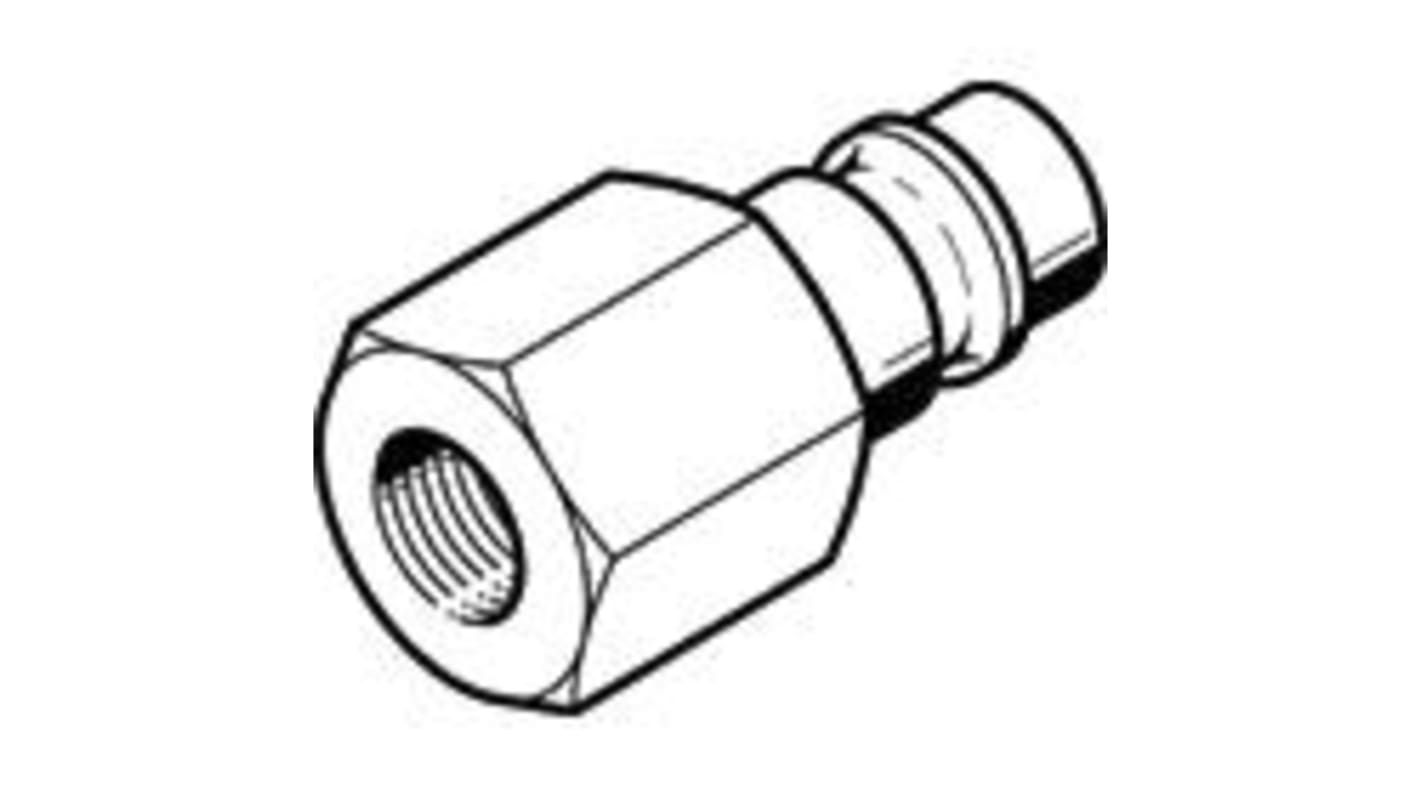

Festo Pneumatic Quick Connect Coupling Socket
The Festo pneumatic quick connect male coupling socket is self-closing, with a nominal size of 4.95mm. It is made from nickel plated brass. This coupling socket has a G female threaded end connection. Plug-in coupling with quick coupling socket KD and quick coupling plug KS, shut-off at one or both ends. You need to push the plug into the socket to lock the coupling. The plug automatically engages with an audible click when in a specific position. To unlock, push the releasing sleeve. Its weight is 27g. Socket has standard nominal flow rate of 666l/min.
Features and Benefits
• Tolerance for nominal tightening torque is ±15%
• Operating temperature ranges between -10°C and 60°C
• Class 1 corrosion resistance
• Lubricated operation reduces friction
Applications
• Dry indoor applications
• Used for transport application
• Storage protection
• Used in chemical fertilizer pipe
Certifications
• ISO8573-1:2010
Festo K Series Pneumatic Quick Connect Sockets and Plugs
Quick connect couplers allow fast connection to tubing, hose or pipe, whilst giving a sealed connection so as not to reduce pressure in a pneumatic system. the connectors are designed to be reliable and allow tube coupling and uncoupling at speed. Festo reliable pneumatic fittings offer you several benefits which are outlined below.
Features and Benefits:
• Nickel-plated brass
• Operating pressure -0.95 bar to 12 bar
• Compressed air to ISO 8573-1:2010 [7:–:–]
• Ambient temperature: -10 °C to +60 °C
• Corrosion resistance class 1 (low corrosion stress)
