Festo Polybutylene Terephthalate Blanking Plug

RS Stock No.:: 121-6156
Distrelec Article No.:: 304-29-511
Mfr. Part No.:: QSC-8H
Manufacturer:: Festo

Festo Polybutylene Terephthalate Blanking Plug

Bulk discount available

Subtotal (1 bag of 10 units)*

PHP758.63

(exc. VAT)

PHP849.67

(inc. VAT)

FREE delivery for orders over ₱3,000.00

In Stock

Plus 117 unit(s) shipping from March 02, 2026
Plus 22 unit(s) shipping from March 31, 2026

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Bag(s)	Per Bag	Per Unit*
1 - 12	PHP758.63	PHP75.863
13 - 24	PHP735.89	PHP73.589
25 +	PHP713.81	PHP71.381

*price indicative

RS Stock No.:: 121-6156
Distrelec Article No.:: 304-29-511
Mfr. Part No.:: QSC-8H
Manufacturer:: Festo

Specifications

Technical data sheets

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Festo
	Product Type	Blanking Plug
	Series	QSC
	Connection Type	Y-Shape, Male Thread with Internal Hex, Cap, Male Thread with External Hex, Reducer, Bulkhead, Sleeve, Connector, L-Shape, Straight, T-Shape, Orientable, Female Thread with External Hex, X-Shape, Push-in
	Material	Polybutylene Terephthalate
	Standards/Approvals	UL (OL), RoHS, DIN 73378, DIN 55102, FDA, Germanischer Lloyd, ISO 85731:2010
	Overall Length	37mm

	Select all
	Brand Festo
	Product Type Blanking Plug
	Series QSC
	Connection Type Y-Shape, Male Thread with Internal Hex, Cap, Male Thread with External Hex, Reducer, Bulkhead, Sleeve, Connector, L-Shape, Straight, T-Shape, Orientable, Female Thread with External Hex, X-Shape, Push-in
	Material Polybutylene Terephthalate
	Standards/Approvals UL (OL), RoHS, DIN 73378, DIN 55102, FDA, Germanischer Lloyd, ISO 85731:2010
	Overall Length 37mm

COO (Country of Origin):: JP

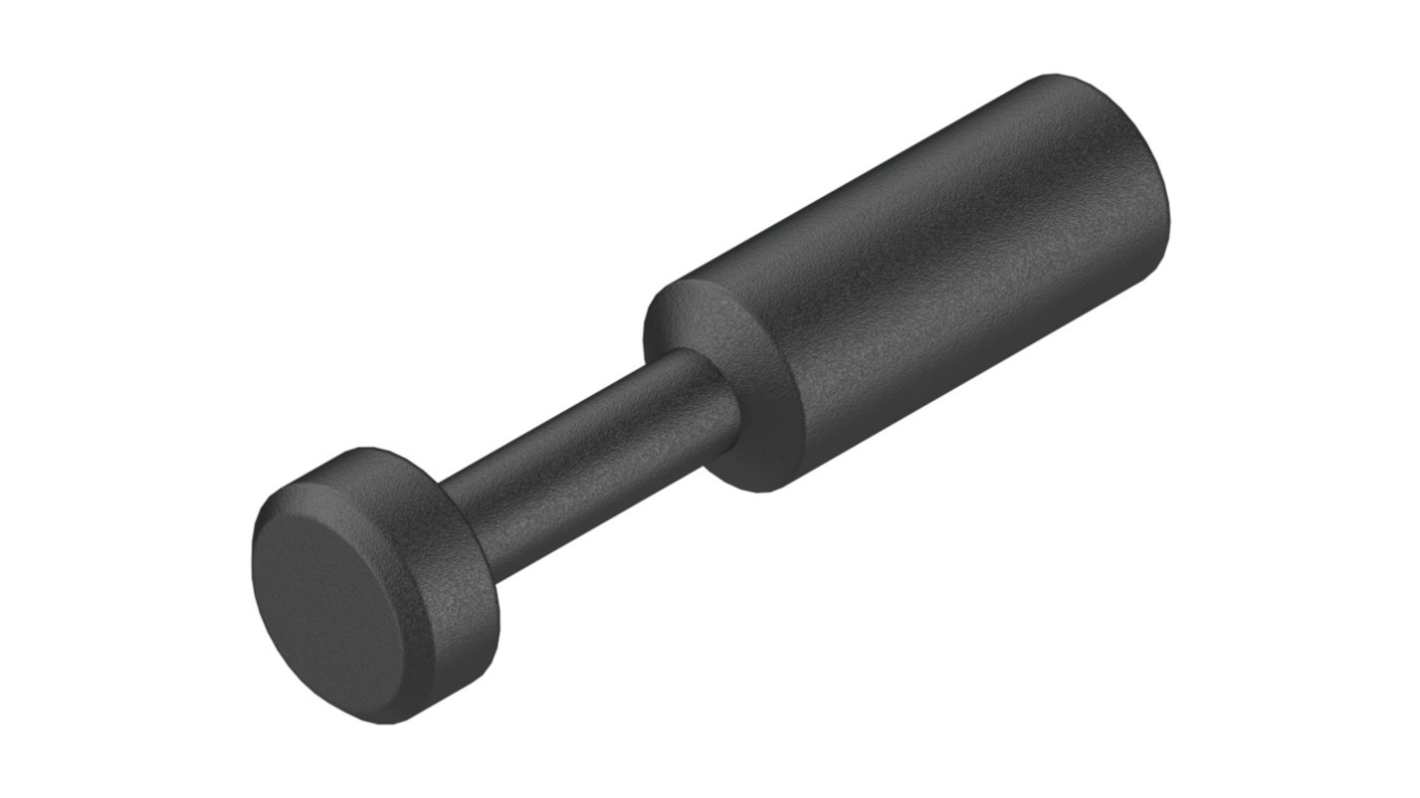

Festo QSC Series Blanking Plug, PBT, For Use With QS Push-In Fitting - QSC-8H, Numeric Part Number: 153269

This blanking plug is a key accessory for QS push-in fittings, designed to ensure efficient sealing in pneumatic systems. Crafted from durable PBT material, it provides dependable performance across a wide temperature range. The component has an outer diameter of 9mm and an overall length of 37mm, making it compatible with an 8mm tube size.

Features & Benefits

• Versatile design with optional mounting positions

• Suitable for lubricated operation and clean room environments

• Supports operating pressure up to 0.6MPa at 50°C

• Corrosion resistance class for low stress applications

• RoHS-compliant material ensures environmental safety

• Weighs only 1g, enabling lightweight assembly

Applications

• Sealing open ports in pneumatic equipment

• Integration in automated assembly lines

• with low corrosion exposure

• Systems managing compressed air and water

Can it operate under varying temperatures?

Yes, it functions within the range of -10°C to 80°C.

Will it be suitable for use in cleanroom conditions?

It is intended for static installation in clean environments.

Is it compliant with environmental regulations?

Yes, it is RoHS-compliant for safe use.
