Festo Polybutylene Terephthalate Blanking Plug
- RS Stock No.:
- 121-6154
- Distrelec Article No.:
- 304-36-931
- Mfr. Part No.:
- QSC-4H
- Manufacturer:
- Festo
Bulk discount available
Subtotal (1 bag of 10 units)*
PHP712.80
(exc. VAT)
PHP798.34
(inc. VAT)
FREE delivery for orders over ₱3,000.00
In Stock
- 82 unit(s) ready to ship from another location
- Plus 48 unit(s) shipping from January 29, 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Bag(s) | Per Bag | Per Unit* |
|---|---|---|
| 1 - 12 | PHP712.80 | PHP71.28 |
| 13 - 24 | PHP691.42 | PHP69.142 |
| 25 + | PHP670.69 | PHP67.069 |
*price indicative
- RS Stock No.:
- 121-6154
- Distrelec Article No.:
- 304-36-931
- Mfr. Part No.:
- QSC-4H
- Manufacturer:
- Festo
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Festo | |
| Product Type | Blanking Plug | |
| Material | Polybutylene Terephthalate | |
| Head Type | Hexagonal, Ring | |
| Connection Type | Y Connector, Push-in, L-Fitting, Male, Sleeve, Connector, Cap, Bulkhead, X-Connector, T-Fitting, Reducer, Female Thread | |
| Standards/Approvals | UL (OL), ISO 7/1, Germanischer Lloyd, EN 10226-1, DIN 5510-2, DIN 73378, RoHS, ISO 8573-1:2010, ISO 228-1, FDA | |
| Overall Length | 28mm | |
| Select all | ||
|---|---|---|
Brand Festo | ||
Product Type Blanking Plug | ||
Material Polybutylene Terephthalate | ||
Head Type Hexagonal, Ring | ||
Connection Type Y Connector, Push-in, L-Fitting, Male, Sleeve, Connector, Cap, Bulkhead, X-Connector, T-Fitting, Reducer, Female Thread | ||
Standards/Approvals UL (OL), ISO 7/1, Germanischer Lloyd, EN 10226-1, DIN 5510-2, DIN 73378, RoHS, ISO 8573-1:2010, ISO 228-1, FDA | ||
Overall Length 28mm | ||
- COO (Country of Origin):
- JP

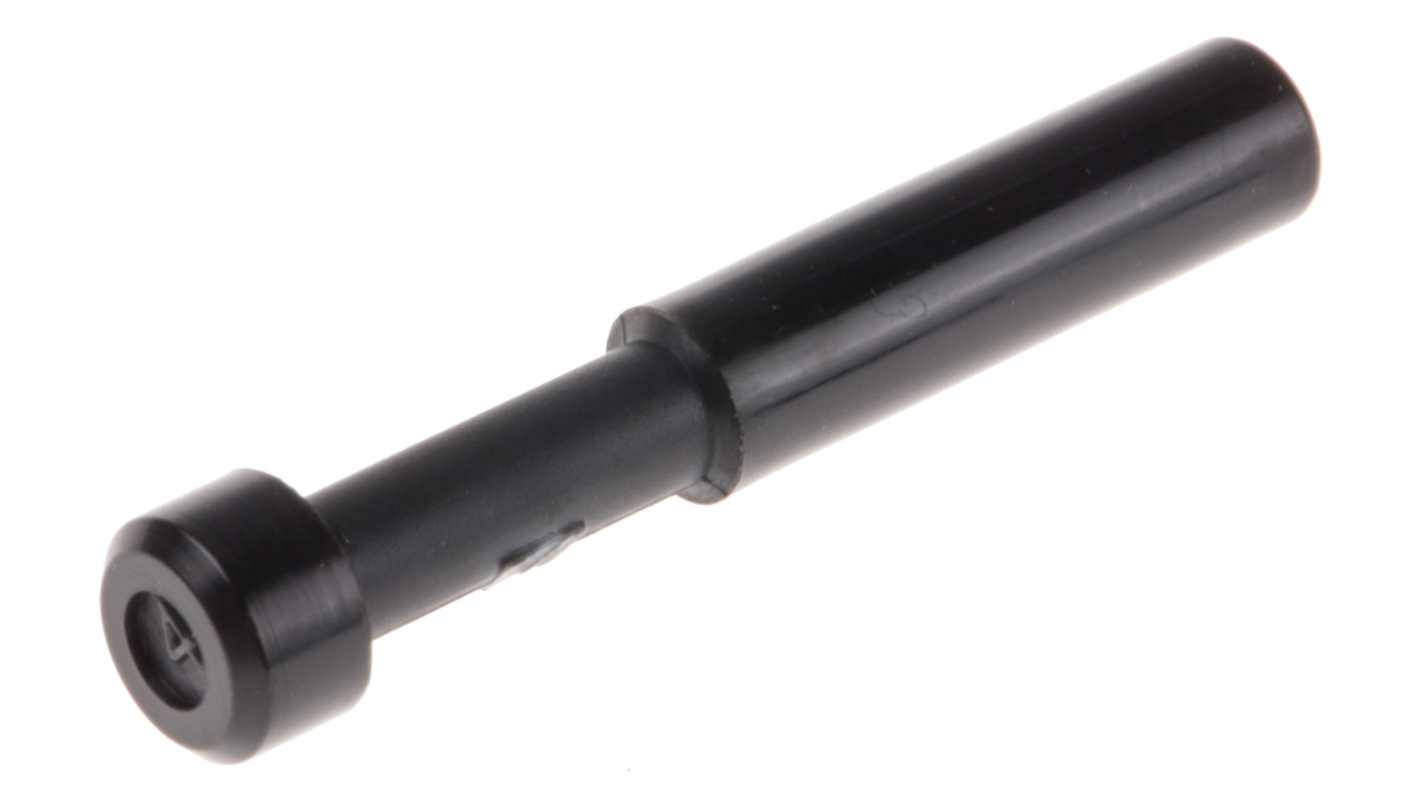

Festo QSC Series Blanking Plug, PBT, For Use With QS Push-In Fitting - QSC-4H, Numeric Part Number: 153267
This blanking plug is tailored for pneumatic systems and features a 4mm tubing connector for straightforward integration. Constructed from robust PBT material, it meets various operational demands, making it compatible with QS push-in fittings. This accessory contributes to effective performance in numerous applications.
Features & Benefits
• Operating pressure up to 0.6MPa supports diverse applications
• Compatibility with lubricated operation improves the lifespan of the system
• Corrosion resistance class CRC 1 offers durability
• RoHS-compliant material adheres to environmental regulations
• Compact design facilitates efficient installation and connection
Applications
• Used with QS push-in fittings for secure connexions
• Suitable for pneumatic systems requiring effective sealing
• Appropriate for involving compressed air and water
• Employed in assembly lines that necessitate efficient pressure management
Can it operate in temperature variations?
Yes, it functions within -10°C to 80°C temperatures.
Will it withstand corrosion?
Yes, it is categorised as CRC 1 for low corrosion stress.
Is lubricated operation possible with this product?
Yes, lubricated operation is applicable and can enhance durability.
Can it be used with other tubing connectors?
It is specifically designed for 4mm push-in fittings.
