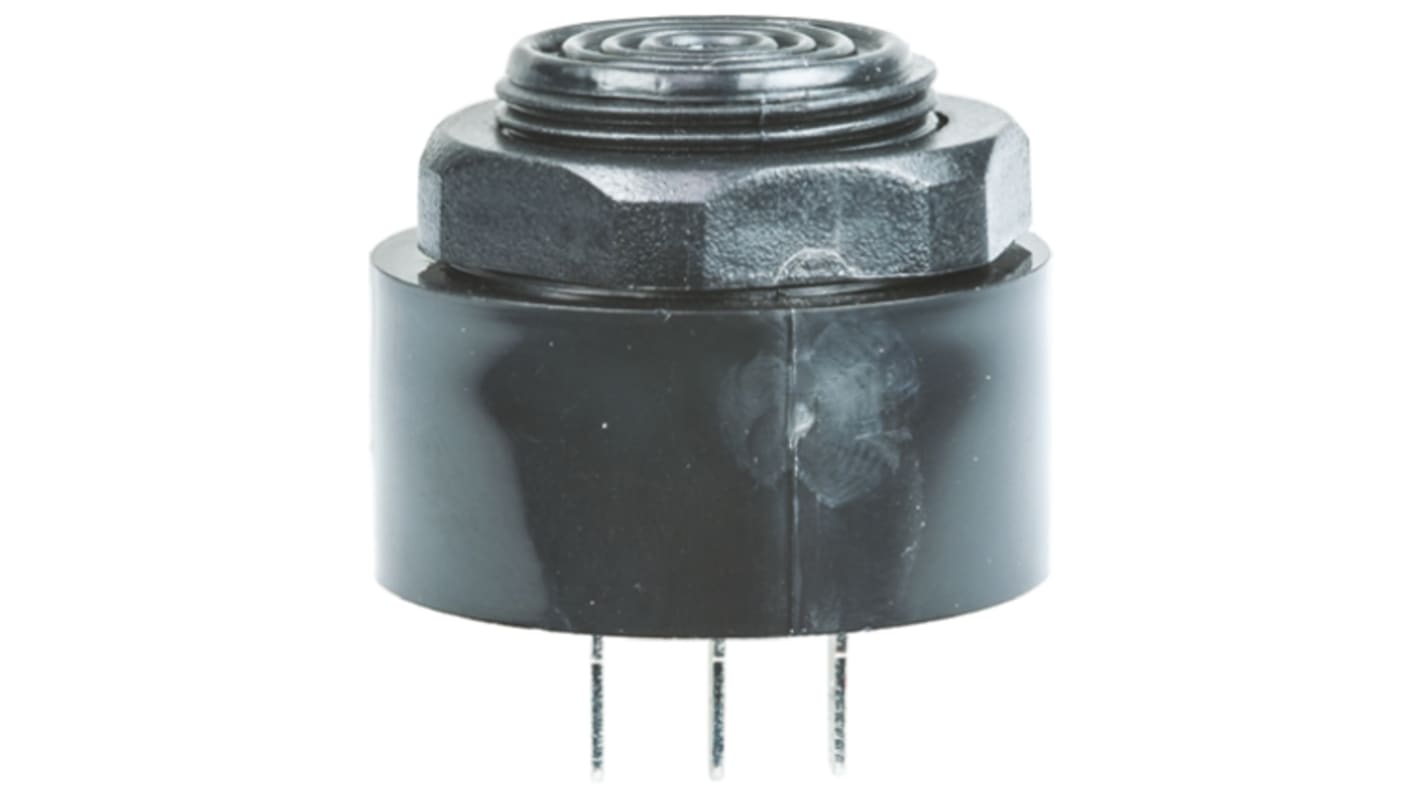

RS PRO 80 dB Panel Mount Slow Pulse, Continuous Internal 33 mm Piezo Buzzer Component 6 V Min 28 V Max

View all Piezo Buzzers
Bulk discount available

Subtotal (1 unit)*

PHP984.89

(exc. VAT)

PHP1,103.08

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • Plus 386 unit(s) shipping from February 02, 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per Unit
1 - 9PHP984.89
10 - 99PHP965.21
100 - 399PHP945.90
400 - 1999PHP926.97
2000 +PHP762.90

*price indicative

Start the Year Right with RS PRO!
RS Stock No.:
771-6901
Manufacturer:
RS PRO
Find similar products by selecting one or more attributes.
Select all

Brand

RS PRO

Product Type

Piezo Buzzer Component

Mount Type

Panel Mount

Minimum Supply Voltage

6V

Maximum Supply Voltage

28V

Sound Level

80dB

Drive Type

Internal

Tone Type

Slow Pulse, Continuous

Diameter

42.5 mm

Minimum Operating Temperature

-30°C

Maximum Operating Temperature

85°C

Standards/Approvals

RoHS

Height

33mm

Termination Style

Pin

Maximum Frequency

3.3kHz

Supply Current

10mA

Minimum Frequency

2300Hz

Non Compliant

COO (Country of Origin):
TW

RS PRO Panel Mount Continuous Internal Piezo Buzzer, 80 dB


If you need an alarm that's easy to mount directly to your printed circuit board (PCB), choose this piezo buzzer from RS PRO. It comes fitted with three male FASTON terminals, so you can connect it directly to your panel with no additional tools required.

This DC buzzer can generate a continuous tone of up to 80 decibels (dB) with a low current input of just 10 mA. This means it's highly audible as well as energy-efficient.

The component is safe to use around electrical and electronic equipment, as it conforms to American (ANSI/ESD S20.20:2014) and British (BS EN 61340-5-1:2007) electrostatic control standards and won't discharge static electricity. Buzzers like this are frequently used as alarms in electronic devices.

Features and Benefits


  • Dimensions of 42.5 (diameter) x 33 mm (height)

  • Internal drive type

  • Maximum frequency of 3.3 kHz

  • Maximum operating temperature of +85°C

  • Maximum supply voltage of 28 V DC

  • Minimum frequency of 2.3 kHz

  • Minimum operating temperature of -30°C

  • Minimum supply voltage of 6 V DC

  • Panel mounting type

  • Sound level of 80 dB

  • Supply current of 10 mA

  • Continuous tone type

    • Be Ready for Anything: RS PRO Emergency Preparedness Solutions
