RS PRO 75 dB Flange Continuous Tone Internal Magnetic Buzzer Component 15.5 mm 4 V dc Min 33.5 mm 15.5 mm 8 V dc Max
- RS Stock No.:
- 724-3188
- Manufacturer:
- RS PRO

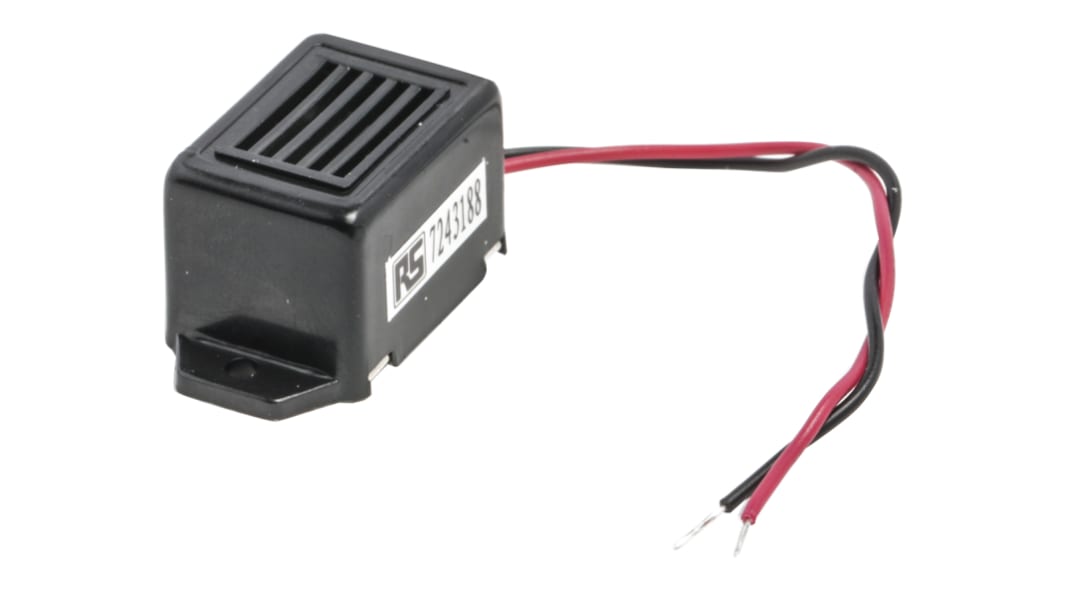

This image is representative of the product range
Bulk discount available
Subtotal (1 unit)*
PHP521.26
(exc. VAT)
PHP583.81
(inc. VAT)
Stock information currently inaccessible - Please check back later
Units | Per Unit |
|---|---|
| 1 - 9 | PHP521.26 |
| 10 - 49 | PHP505.63 |
| 50 - 99 | PHP490.46 |
| 100 - 249 | PHP475.74 |
| 250 + | PHP461.46 |
*price indicative
- RS Stock No.:
- 724-3188
- Manufacturer:
- RS PRO
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Mount Type | Flange | |
| Product Type | Magnetic Buzzer Component | |
| Minimum Supply Voltage | 4V dc | |
| Maximum Supply Voltage | 8V dc | |
| Sound Level | 75dB | |
| Drive Type | Internal | |
| Tone Type | Continuous Tone | |
| Maximum Operating Temperature | 60°C | |
| Height | 15.5mm | |
| Length | 33.5mm | |
| Standards/Approvals | No | |
| Width | 15.5 mm | |
| Maximum Frequency | 0.5kHz | |
| Minimum Frequency | 300Hz | |
| Select all | ||
|---|---|---|
Brand RS PRO | ||
Mount Type Flange | ||
Product Type Magnetic Buzzer Component | ||
Minimum Supply Voltage 4V dc | ||
Maximum Supply Voltage 8V dc | ||
Sound Level 75dB | ||
Drive Type Internal | ||
Tone Type Continuous Tone | ||
Maximum Operating Temperature 60°C | ||
Height 15.5mm | ||
Length 33.5mm | ||
Standards/Approvals No | ||
Width 15.5 mm | ||
Maximum Frequency 0.5kHz | ||
Minimum Frequency 300Hz | ||
- COO (Country of Origin):
- CN
Flanged continuous tone buzzer flying lead
RS Pro 10mA/20VDC Piezo Buzzer with ABS housing with 28AWG flange mounted wire leads, 96dB sound level, 2.8kHz resonant frequency, PCB mount and continuous tone.
Features
Internal circuitry for dc operation
High output levels
Operating Temperature -20°C to +60°C
Flanged mounting buzzer
Flying lead connections
Applications
Audio Sensing and Instrumentation
