Same Sky 85 dB Panel Mount Buzzer Internal Magnetic Buzzer 12 mm 1.5 V dc Min 22.5 mm 12 mm 24 V dc Max
- RS Stock No.:
- 259-6285
- Mfr. Part No.:
- CPI-2212-85PM
- Manufacturer:
- Same Sky

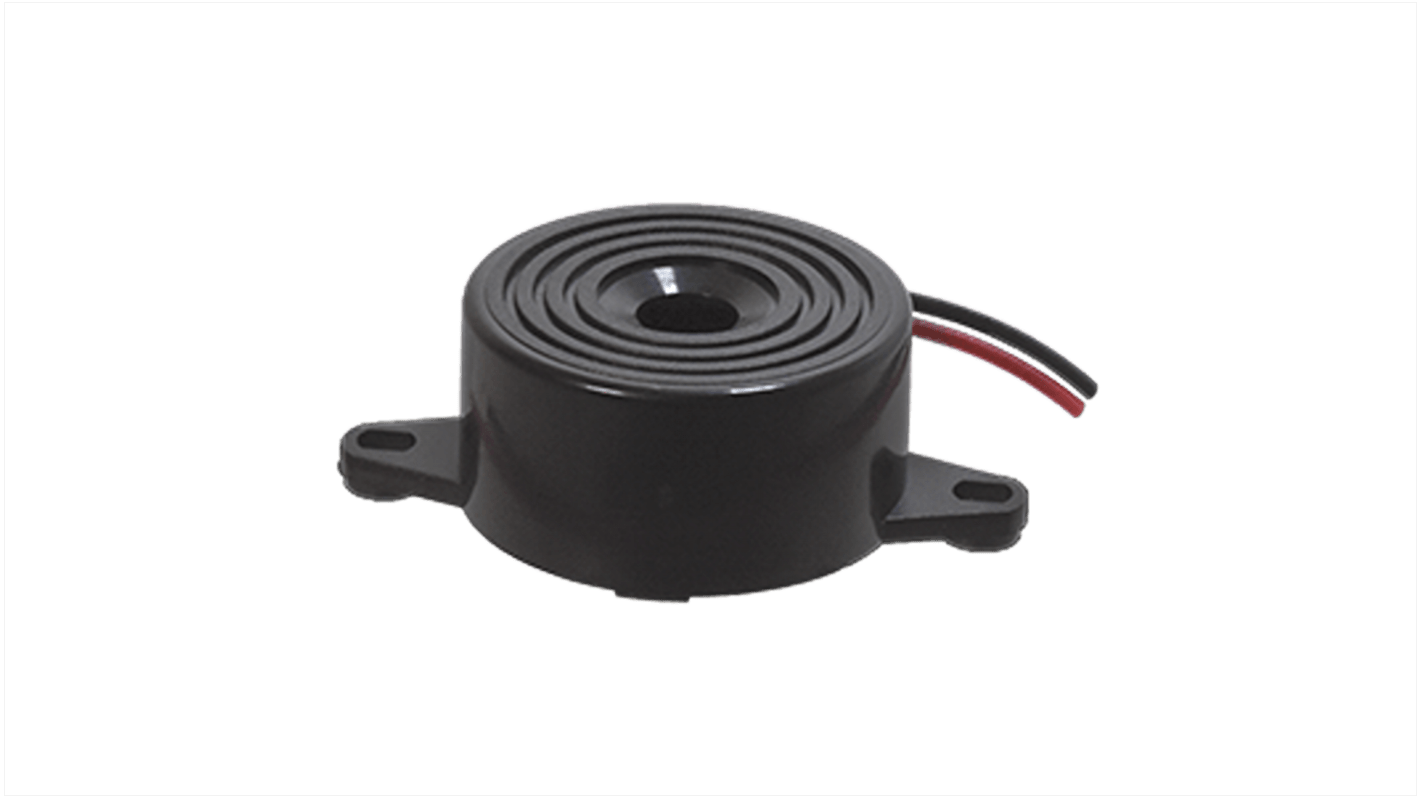

This image is representative of the product range
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
- RS Stock No.:
- 259-6285
- Mfr. Part No.:
- CPI-2212-85PM
- Manufacturer:
- Same Sky
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Same Sky | |
| Mount Type | Panel Mount | |
| Product Type | Magnetic Buzzer | |
| Minimum Supply Voltage | 1.5V dc | |
| Maximum Supply Voltage | 24V dc | |
| Sound Level | 85dB | |
| Drive Type | Internal | |
| Tone Type | Buzzer | |
| Maximum Operating Temperature | 60°C | |
| Standards/Approvals | RoHS | |
| Length | 22.5mm | |
| Width | 12 mm | |
| Height | 12mm | |
| Maximum Frequency | 3800Hz | |
| Minimum Frequency | 2800Hz | |
| Select all | ||
|---|---|---|
Brand Same Sky | ||
Mount Type Panel Mount | ||
Product Type Magnetic Buzzer | ||
Minimum Supply Voltage 1.5V dc | ||
Maximum Supply Voltage 24V dc | ||
Sound Level 85dB | ||
Drive Type Internal | ||
Tone Type Buzzer | ||
Maximum Operating Temperature 60°C | ||
Standards/Approvals RoHS | ||
Length 22.5mm | ||
Width 12 mm | ||
Height 12mm | ||
Maximum Frequency 3800Hz | ||
Minimum Frequency 2800Hz | ||
- COO (Country of Origin):
- CN
The CUI devices piezo buzzers offers an audio indicator with a mounting type of panel mount and having a sound pressure level of 85 dB. It consist of a voltage rating of 12 V and an internal drive type.
Storage temperature of -30°C - 70°C
Made up of ABS material
