Same Sky 80 dB Through Hole Buzzer Internal Magnetic Buzzer 7.5 mm 12 V dc Min 13.8 mm 7.5mm 16V dc Max
- RS Stock No.:
- 259-6284
- Mfr. Part No.:
- CPI-1375IC-80T
- Manufacturer:
- Same Sky

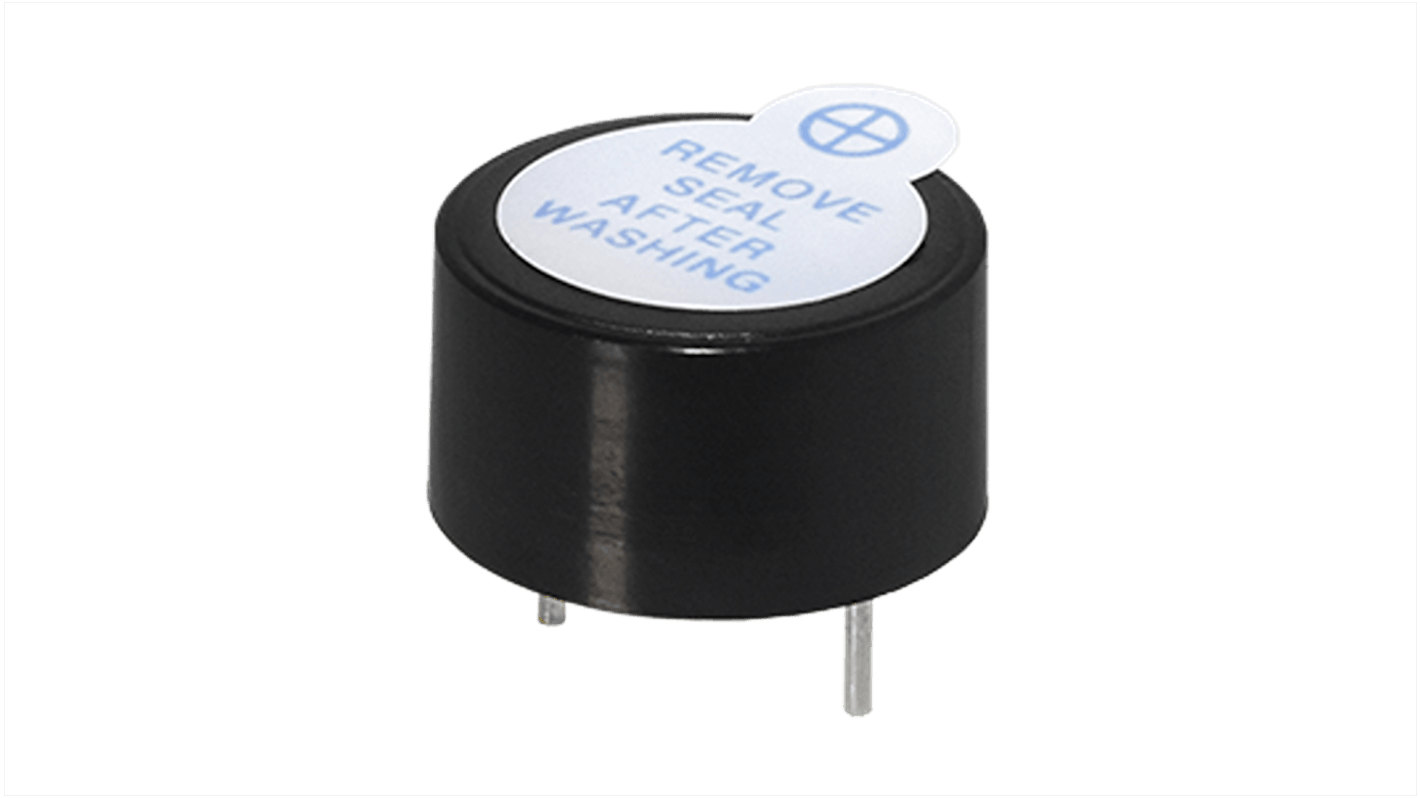

This image is representative of the product range
Bulk discount available
View bulk pricing optionsSubtotal (1 pack of 5 units)*
PHP522.00
(exc. VAT)
PHP584.65
(inc. VAT)
FREE delivery for orders over ₱3,000.00
Last RS stock
- Final 55 unit(s), ready to ship from another location
Units | Per Unit | Per Pack* |
|---|---|---|
| 5 - 5 | PHP104.40 | PHP522.00 |
| 10 - 15 | PHP99.18 | PHP495.90 |
| 20 - 25 | PHP94.282 | PHP471.41 |
| 30 - 45 | PHP89.55 | PHP447.75 |
| 50 + | PHP84.984 | PHP424.92 |
*price indicative
- RS Stock No.:
- 259-6284
- Mfr. Part No.:
- CPI-1375IC-80T
- Manufacturer:
- Same Sky
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Same Sky | |
| Mount Type | Through Hole | |
| Product Type | Magnetic Buzzer | |
| Minimum Supply Voltage | 12V dc | |
| Maximum Supply Voltage | 16V dc | |
| Sound Level | 80dB | |
| Drive Type | Internal | |
| Tone Type | Buzzer | |
| Maximum Operating Temperature | 70°C | |
| Standards/Approvals | RoHS | |
| Length | 13.8mm | |
| Height | 7.5mm | |
| Width | 7.5mm | |
| Maximum Frequency | 4100Hz | |
| Minimum Frequency | 3900Hz | |
| Select all | ||
|---|---|---|
Brand Same Sky | ||
Mount Type Through Hole | ||
Product Type Magnetic Buzzer | ||
Minimum Supply Voltage 12V dc | ||
Maximum Supply Voltage 16V dc | ||
Sound Level 80dB | ||
Drive Type Internal | ||
Tone Type Buzzer | ||
Maximum Operating Temperature 70°C | ||
Standards/Approvals RoHS | ||
Length 13.8mm | ||
Height 7.5mm | ||
Width 7.5mm | ||
Maximum Frequency 4100Hz | ||
Minimum Frequency 3900Hz | ||
- COO (Country of Origin):
- CN
The CUI devices piezo buzzers offers an integrated circuit audio indicator with a mounting type of through hole and having a sound pressure level of 80 dB. It consist of a voltage rating of 12 V and an internal drive type.
Storage temperature of -40°C - 85°C
Made up of MPPO material
