Same Sky 100 dB Surface Mount Buzzer External Magnetic Buzzer 4 mm 1 V Min 8.5 mm 8.5 mm 6 V Max

RS Stock No.:: 259-6270
Mfr. Part No.:: CMT-8540S-SMT-TR
Manufacturer:: Same Sky

Same Sky 100 dB Surface Mount Buzzer External Magnetic Buzzer 4 mm 1 V Min 8.5 mm 8.5 mm 6 V Max

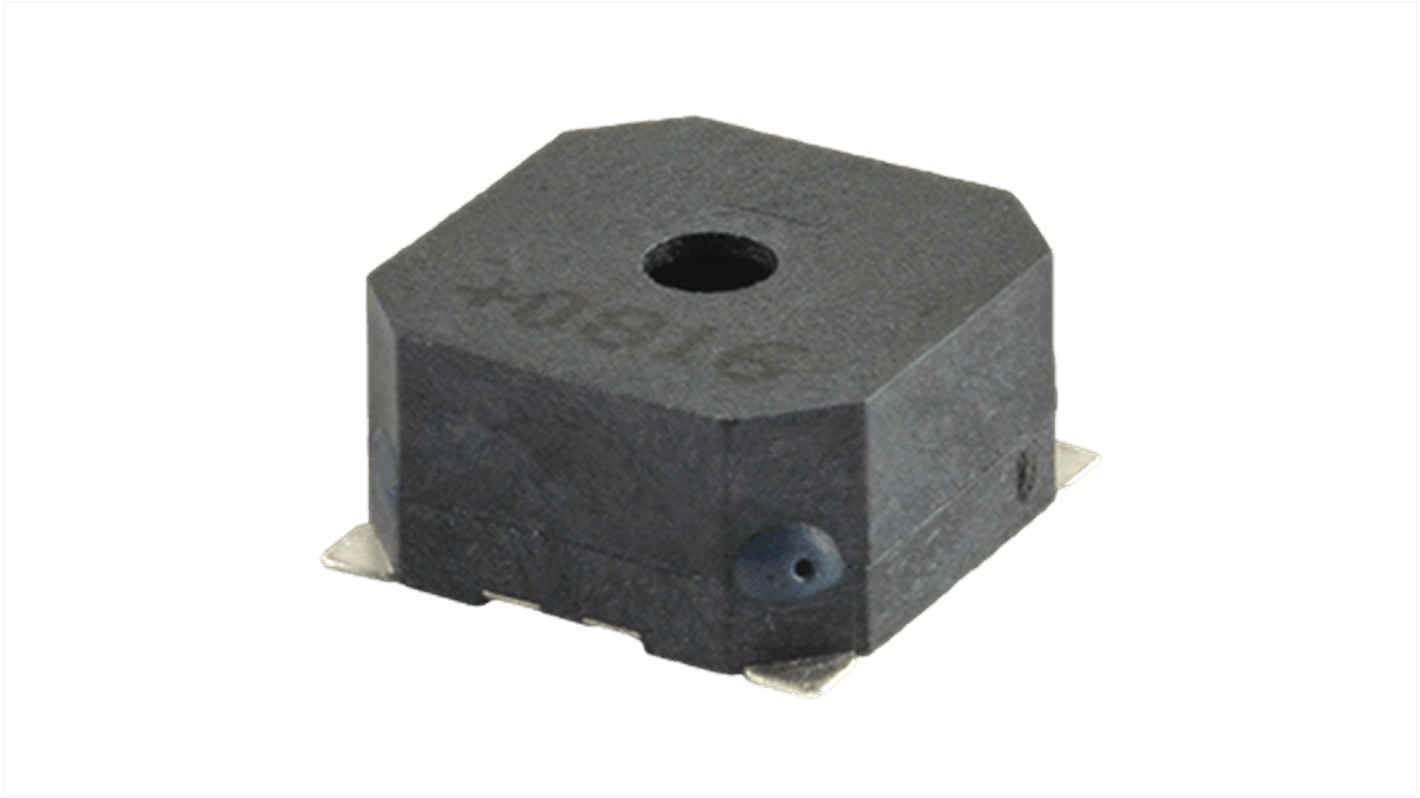

This image is representative of the product range

Currently unavailable

We don't know if this item will be back in stock, RS intend to remove it from our range soon.

RS Stock No.:: 259-6270
Mfr. Part No.:: CMT-8540S-SMT-TR
Manufacturer:: Same Sky

Specifications

Technical data sheets

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Same Sky
	Product Type	Magnetic Buzzer
	Mount Type	Surface Mount
	Minimum Supply Voltage	1V
	Maximum Supply Voltage	6V
	Sound Level	100dB
	Drive Type	External
	Tone Type	Buzzer
	Maximum Operating Temperature	70°C
	Width	8.5 mm
	Height	4mm
	Standards/Approvals	RoHS
	Length	8.5mm
	Maximum Frequency	4000Hz
	Minimum Frequency	4kHz

	Select all
	Brand Same Sky
	Product Type Magnetic Buzzer
	Mount Type Surface Mount
	Minimum Supply Voltage 1V
	Maximum Supply Voltage 6V
	Sound Level 100dB
	Drive Type External
	Tone Type Buzzer
	Maximum Operating Temperature 70°C
	Width 8.5 mm
	Height 4mm
	Standards/Approvals RoHS
	Length 8.5mm
	Maximum Frequency 4000Hz
	Minimum Frequency 4kHz

Datasheet - CMT-8540S-SMT-TR

COO (Country of Origin):: CN

The CUI devices piezo buzzers with a mounting type of surface mount and having a sound pressure level of 100 dB. It consist of a voltage rating of 5 V and an external drive type.

Storage temperature of -40°C - 85°C

Made up of LCP material
