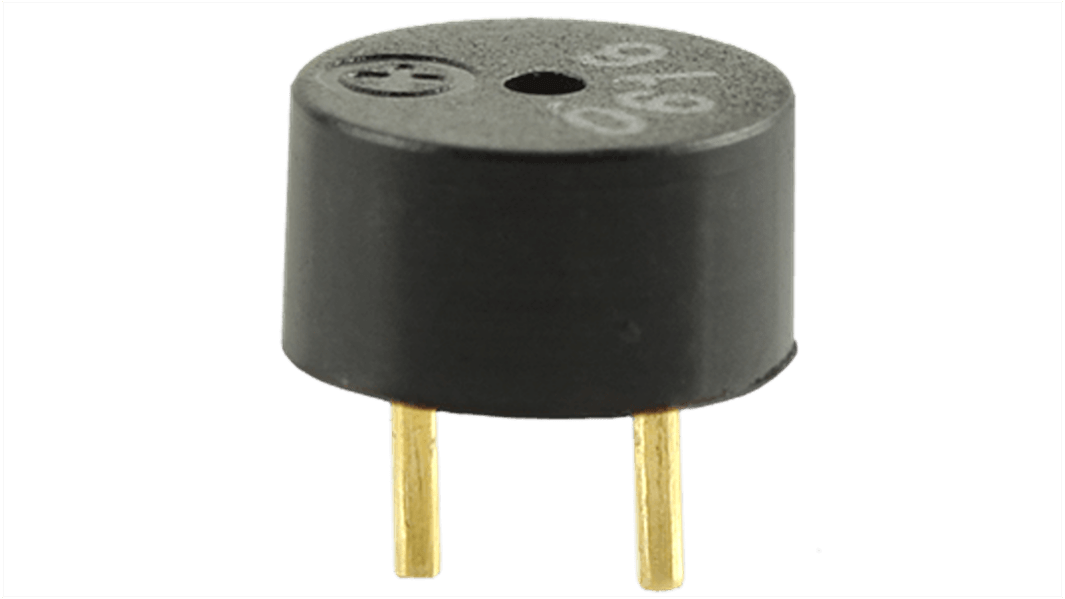

Same Sky 80 dB Through Hole Buzzer External Magnetic Buzzer 3.5 mm 3 V dc Min 3.5 mm 3.5 mm 5 V dc Max
- RS Stock No.:
- 259-6255
- Mfr. Part No.:
- CMT-6635C-030
- Manufacturer:
- Same Sky
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
- RS Stock No.:
- 259-6255
- Mfr. Part No.:
- CMT-6635C-030
- Manufacturer:
- Same Sky
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Same Sky | |
| Mount Type | Through Hole | |
| Product Type | Magnetic Buzzer | |
| Minimum Supply Voltage | 3V dc | |
| Maximum Supply Voltage | 5V dc | |
| Sound Level | 80dB | |
| Drive Type | External | |
| Tone Type | Buzzer | |
| Maximum Operating Temperature | 60°C | |
| Standards/Approvals | RoHS | |
| Length | 3.5mm | |
| Width | 3.5 mm | |
| Height | 3.5mm | |
| Maximum Frequency | 3000Hz | |
| Minimum Frequency | 3kHz | |
| Select all | ||
|---|---|---|
Brand Same Sky | ||
Mount Type Through Hole | ||
Product Type Magnetic Buzzer | ||
Minimum Supply Voltage 3V dc | ||
Maximum Supply Voltage 5V dc | ||
Sound Level 80dB | ||
Drive Type External | ||
Tone Type Buzzer | ||
Maximum Operating Temperature 60°C | ||
Standards/Approvals RoHS | ||
Length 3.5mm | ||
Width 3.5 mm | ||
Height 3.5mm | ||
Maximum Frequency 3000Hz | ||
Minimum Frequency 3kHz | ||
- COO (Country of Origin):
- CN
The CUI devices piezo buzzers with a mounting type of through hole and having a sound pressure level of 75 dB. It consist of a voltage rating of 3 V and an external drive type.
Storage temperature of -30°C - 70°C
Made up of PPO material
