Same Sky 90 dB Through Hole Buzzer Internal Magnetic Buzzer 7.5 mm 3 V Min 12 mm 7 V Max

RS Stock No.:: 259-6194
Mfr. Part No.:: CMI-1275C-050
Manufacturer:: Same Sky

Same Sky 90 dB Through Hole Buzzer Internal Magnetic Buzzer 7.5 mm 3 V Min 12 mm 7 V Max

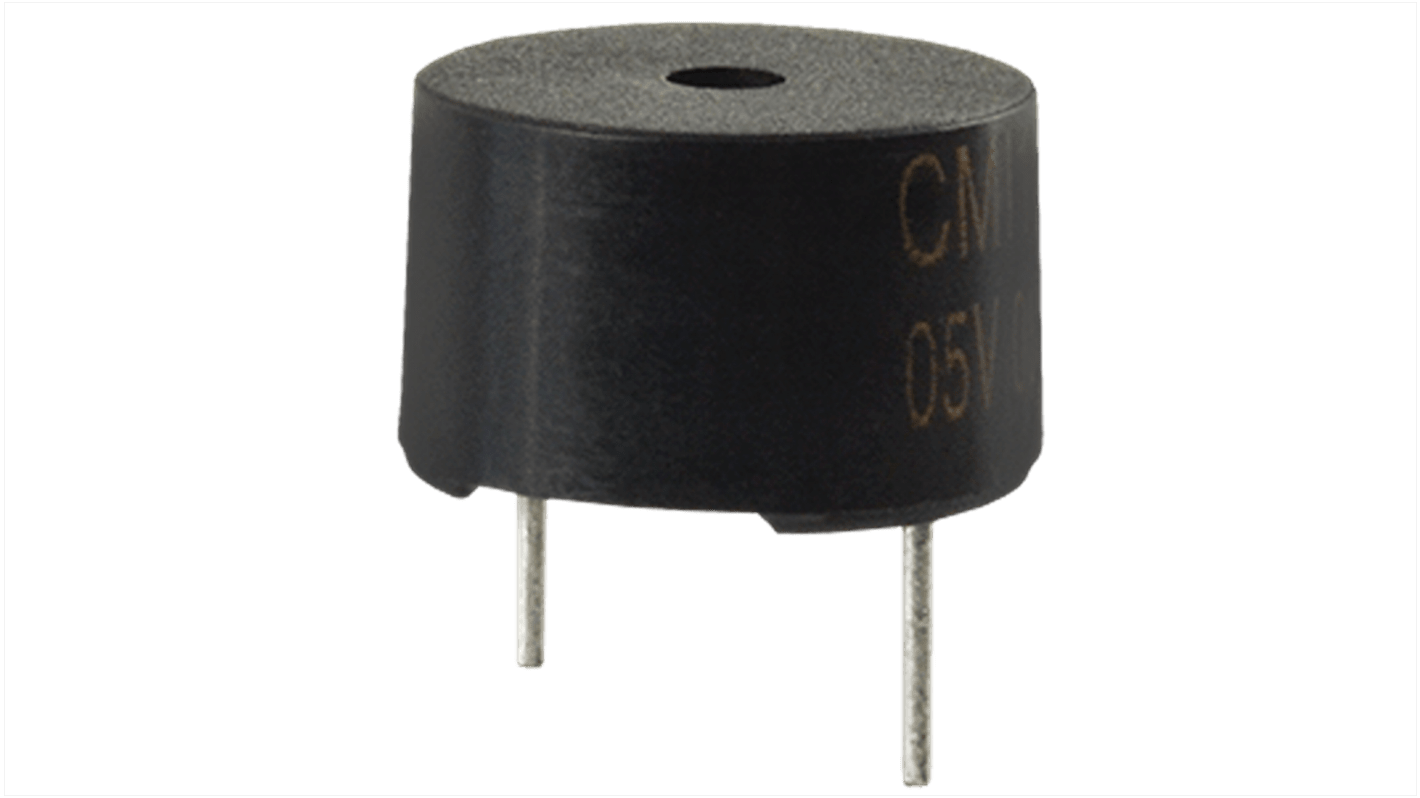

This image is representative of the product range

Unavailable

RS will no longer stock this product.

RS Stock No.:: 259-6194
Mfr. Part No.:: CMI-1275C-050
Manufacturer:: Same Sky

Specifications

Technical data sheets

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Same Sky
	Mount Type	Through Hole
	Product Type	Magnetic Buzzer
	Minimum Supply Voltage	3V
	Maximum Supply Voltage	7V
	Sound Level	90dB
	Drive Type	Internal
	Tone Type	Buzzer
	Maximum Operating Temperature	70°C
	Standards/Approvals	RoHS
	Length	12mm
	Height	7.5mm
	Maximum Frequency	3400Hz
	Minimum Frequency	2800Hz

	Select all
	Brand Same Sky
	Mount Type Through Hole
	Product Type Magnetic Buzzer
	Minimum Supply Voltage 3V
	Maximum Supply Voltage 7V
	Sound Level 90dB
	Drive Type Internal
	Tone Type Buzzer
	Maximum Operating Temperature 70°C
	Standards/Approvals RoHS
	Length 12mm
	Height 7.5mm
	Maximum Frequency 3400Hz
	Minimum Frequency 2800Hz

Datasheet - CMI-1275C-050

COO (Country of Origin):: CN

The CUI devices piezo buzzers with a mounting type of through hole and having a sound pressure level of 83 dB. It consist of a voltage rating of 5 V and an internal drive type.

Storage temperature of -30°C - 80°C

Made up of PBT material

Same Sky 90 dB Through Hole Buzzer Internal Magnetic Buzzer 7.5 mm 3 V Min 12 mm 7 V Max
