RS PRO 75 dB Through Hole Buzzer Internal 8 mm Piezo Buzzer Component 30 V Max

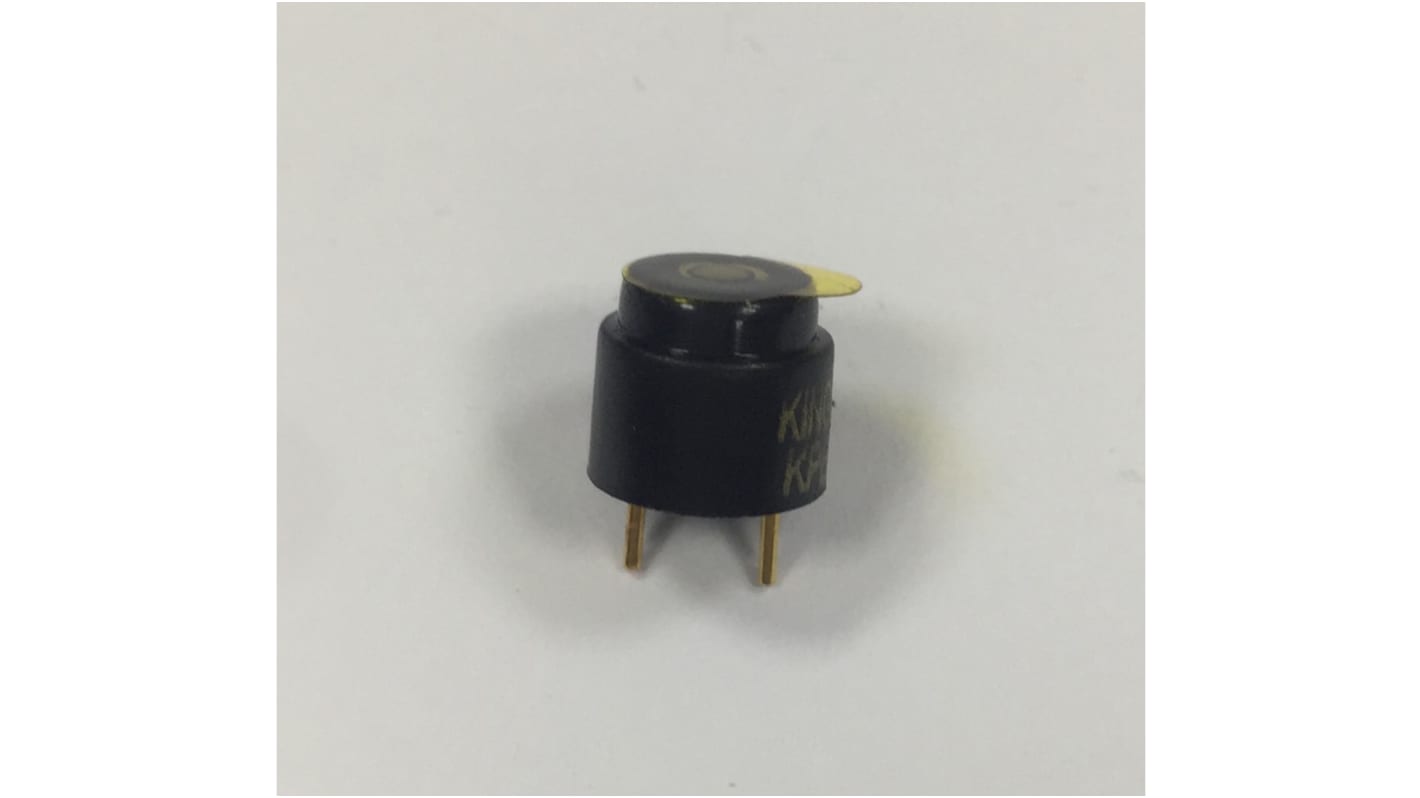

This image is representative of the product range

View all Piezo Buzzers
Bulk discount available

Subtotal (1 pack of 5 units)*

PHP894.23

(exc. VAT)

PHP1,001.54

(inc. VAT)

Add to Basket
Select or type quantity
Orders below PHP3,000.00 (exc. VAT) cost PHP150.00.
In Stock
  • 155 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per Unit
Per Pack*
5 - 95PHP178.846PHP894.23
100 - 995PHP153.942PHP769.71
1000 - 5995PHP148.828PHP744.14
6000 +PHP139.194PHP695.97

*price indicative

Be Ready for Anything: RS PRO Emergency Preparedness Solutions
RS Stock No.:
181-2722
Manufacturer:
RS PRO
Find similar products by selecting one or more attributes.
Select all

Brand

RS PRO

Product Type

Piezo Buzzer Component

Mount Type

Through Hole

Maximum Supply Voltage

30V

Sound Level

75dB

Drive Type

Internal

Tone Type

Buzzer

Diameter

9 mm

Minimum Operating Temperature

-30°C

Maximum Operating Temperature

85°C

Height

8mm

Standards/Approvals

RoHS

Termination Style

Pin

Maximum Frequency

2.8kHz

Supply Current

4mA

Capacitance

5600pF

COO (Country of Origin):
CN
The RS PRO Piezo Buzzer audio Indicator has Operating temperature range of -30°C to +85°C and Maximum Supply Voltage of 30V. The material used for buzzer is LCP(Black).

Sound Level 75dB

Tone Type Square Wave

Diameter 9mm

Height 8mm
