RS PRO 98 dB Through Hole Continuous Internal 23.5 mm Piezo Buzzer Component 0.7 V Min 15 V Max
- RS Stock No.:
- 181-2704
- Manufacturer:
- RS PRO

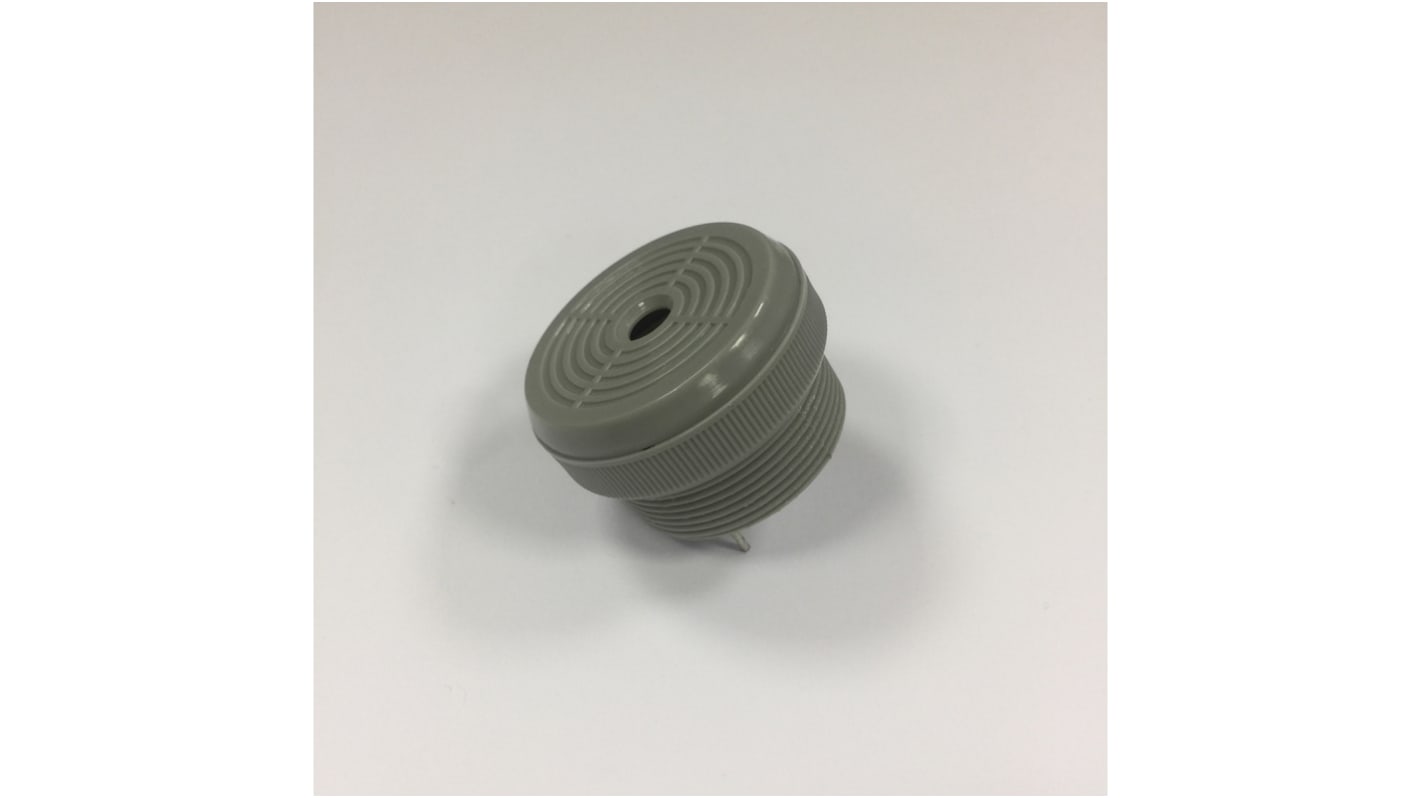

This image is representative of the product range
Bulk discount available
Subtotal (1 unit)*
PHP885.99
(exc. VAT)
PHP992.31
(inc. VAT)
Stock information currently inaccessible - Please check back later
Units | Per Unit |
|---|---|
| 1 - 9 | PHP885.99 |
| 10 - 99 | PHP795.73 |
| 100 - 249 | PHP776.74 |
| 250 + | PHP741.13 |
*price indicative
- RS Stock No.:
- 181-2704
- Manufacturer:
- RS PRO
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Mount Type | Through Hole | |
| Product Type | Piezo Buzzer Component | |
| Minimum Supply Voltage | 0.7V | |
| Maximum Supply Voltage | 15V | |
| Sound Level | 98dB | |
| Drive Type | Internal | |
| Tone Type | Continuous | |
| Diameter | 36.5 mm | |
| Minimum Operating Temperature | -30°C | |
| Maximum Operating Temperature | 80°C | |
| Standards/Approvals | RoHS | |
| Termination Style | Pin | |
| Height | 23.5mm | |
| Maximum Frequency | 4.1kHz | |
| Supply Current | 20mA | |
| Minimum Frequency | 3.1kHz | |
| Select all | ||
|---|---|---|
Brand RS PRO | ||
Mount Type Through Hole | ||
Product Type Piezo Buzzer Component | ||
Minimum Supply Voltage 0.7V | ||
Maximum Supply Voltage 15V | ||
Sound Level 98dB | ||
Drive Type Internal | ||
Tone Type Continuous | ||
Diameter 36.5 mm | ||
Minimum Operating Temperature -30°C | ||
Maximum Operating Temperature 80°C | ||
Standards/Approvals RoHS | ||
Termination Style Pin | ||
Height 23.5mm | ||
Maximum Frequency 4.1kHz | ||
Supply Current 20mA | ||
Minimum Frequency 3.1kHz | ||
The RS PRO Piezo Buzzer audio Indicator has Operating temperature range of -30°C to +80°C and voltage range of 0.7V dc to 15V dc. The material used for buzzer is ABS UL-94 1/16” HB HIGH HEAT (BLACK) and it has pin type terminal.
Sound Level 106dB
Tone Type Continuous
Diameter 36.5mm
Height 23.5mm
