RS PRO 85 dB Through Hole Continuous External 11.5 mm Piezo Buzzer Component 9 V ac Min 15 V ac Max
- RS Stock No.:
- 171-0908
- Manufacturer:
- RS PRO

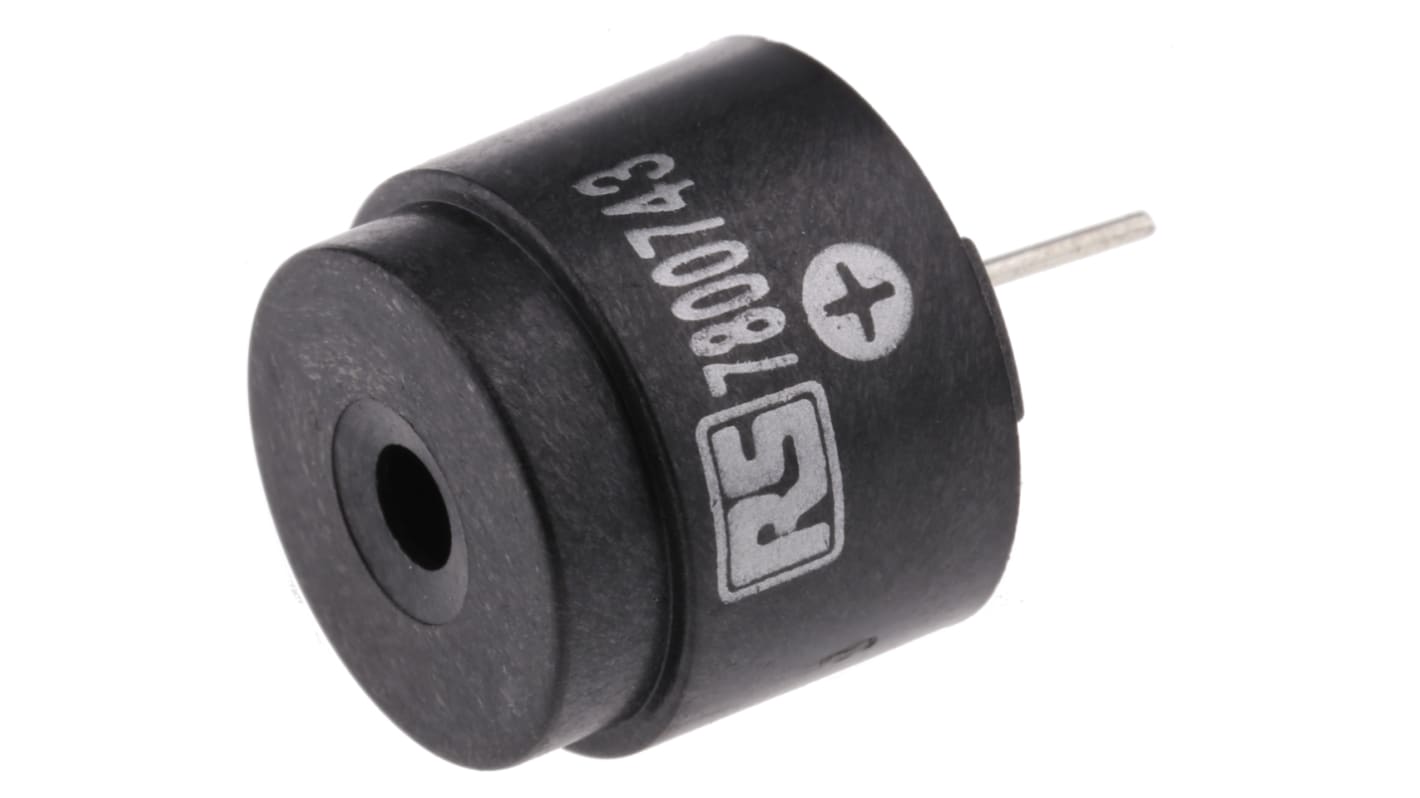

This image is representative of the product range
Subtotal (1 tray of 50 units)*
PHP3,366.00
(exc. VAT)
PHP3,770.00
(inc. VAT)
FREE delivery for orders over ₱3,000.00
Temporarily out of stock
- Shipping from June 22, 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit | Per Tray* |
|---|---|---|
| 50 + | PHP67.32 | PHP3,366.00 |
*price indicative
- RS Stock No.:
- 171-0908
- Manufacturer:
- RS PRO
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Product Type | Piezo Buzzer Component | |
| Mount Type | Through Hole | |
| Minimum Supply Voltage | 9V ac | |
| Maximum Supply Voltage | 15V ac | |
| Sound Level | 85dB | |
| Drive Type | External | |
| Tone Type | Continuous | |
| Minimum Operating Temperature | -30°C | |
| Maximum Operating Temperature | 70°C | |
| Standards/Approvals | No | |
| Height | 11.5mm | |
| Termination Style | PCB Pin | |
| Maximum Frequency | 2.548kHz | |
| Supply Current | 40mA | |
| Minimum Frequency | 1548Hz | |
| Select all | ||
|---|---|---|
Brand RS PRO | ||
Product Type Piezo Buzzer Component | ||
Mount Type Through Hole | ||
Minimum Supply Voltage 9V ac | ||
Maximum Supply Voltage 15V ac | ||
Sound Level 85dB | ||
Drive Type External | ||
Tone Type Continuous | ||
Minimum Operating Temperature -30°C | ||
Maximum Operating Temperature 70°C | ||
Standards/Approvals No | ||
Height 11.5mm | ||
Termination Style PCB Pin | ||
Maximum Frequency 2.548kHz | ||
Supply Current 40mA | ||
Minimum Frequency 1548Hz | ||
- COO (Country of Origin):
- CN
Round PCB mount continuous tone buzzers
This is a range of high sound output piezo buzzers. They are suitable for PCB mounting and are housed in a circular case.
