RS PRO 85 dB Surface Mount Continuous Internal Magnetic Buzzer Component 6.5 mm 8 V dc Min 12.8 mm 12.8 mm 15 V dc Max
- RS Stock No.:
- 457-049
- Manufacturer:
- RS PRO

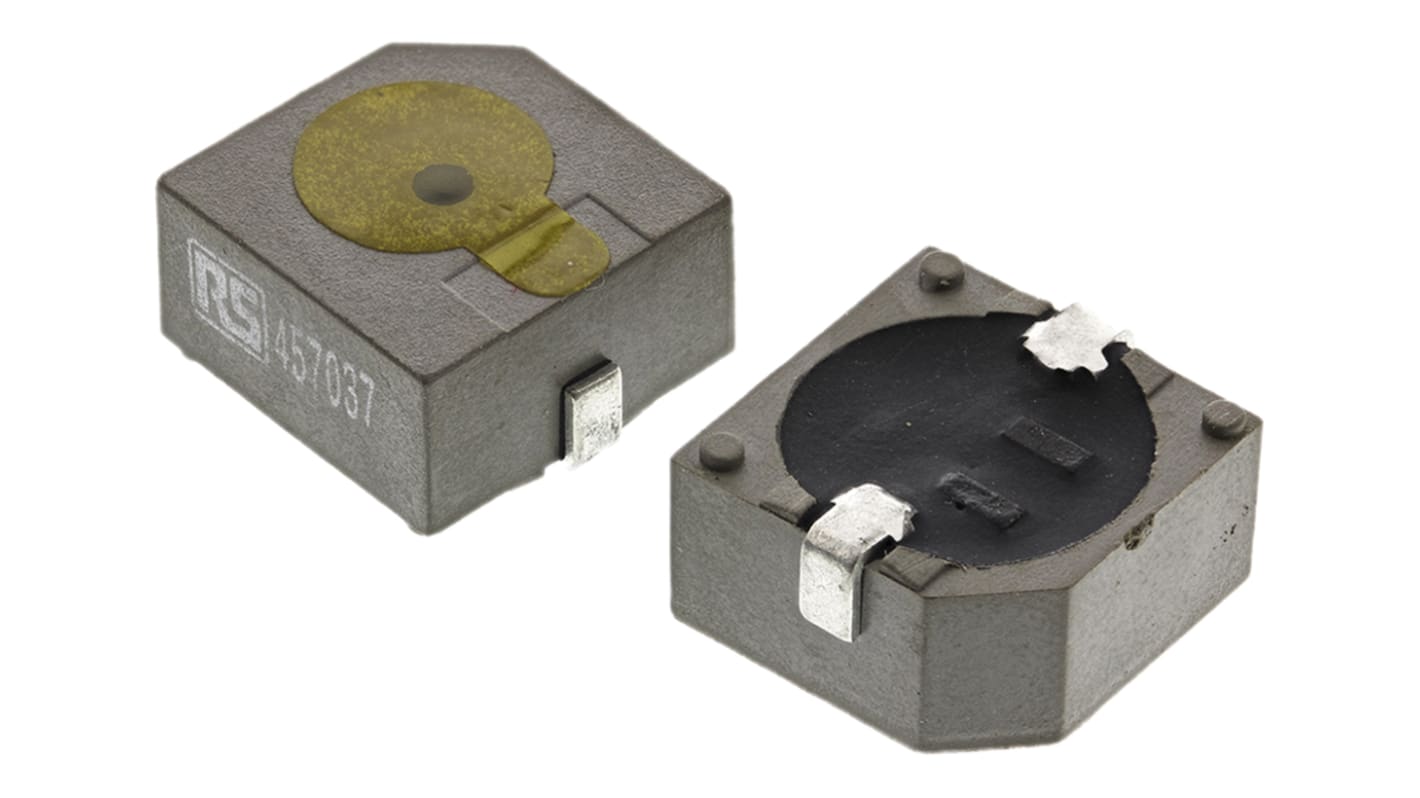

This image is representative of the product range
Bulk discount available
Subtotal (1 pack of 5 units)*
PHP1,141.14
(exc. VAT)
PHP1,278.075
(inc. VAT)
FREE delivery for orders over ₱3,000.00
In Stock
- 55 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit | Per Pack* |
|---|---|---|
| 5 - 45 | PHP228.228 | PHP1,141.14 |
| 50 - 95 | PHP221.756 | PHP1,108.78 |
| 100 - 495 | PHP212.078 | PHP1,060.39 |
| 500 - 995 | PHP204.502 | PHP1,022.51 |
| 1000 + | PHP204.296 | PHP1,021.48 |
*price indicative
- RS Stock No.:
- 457-049
- Manufacturer:
- RS PRO
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Product Type | Magnetic Buzzer Component | |
| Mount Type | Surface Mount | |
| Minimum Supply Voltage | 8V dc | |
| Maximum Supply Voltage | 15V dc | |
| Sound Level | 85dB | |
| Drive Type | Internal | |
| Tone Type | Continuous | |
| Maximum Operating Temperature | 70°C | |
| Standards/Approvals | No | |
| Width | 12.8 mm | |
| Length | 12.8mm | |
| Height | 6.5mm | |
| Maximum Frequency | 2.8kHz | |
| Minimum Frequency | 2000Hz | |
| Select all | ||
|---|---|---|
Brand RS PRO | ||
Product Type Magnetic Buzzer Component | ||
Mount Type Surface Mount | ||
Minimum Supply Voltage 8V dc | ||
Maximum Supply Voltage 15V dc | ||
Sound Level 85dB | ||
Drive Type Internal | ||
Tone Type Continuous | ||
Maximum Operating Temperature 70°C | ||
Standards/Approvals No | ||
Width 12.8 mm | ||
Length 12.8mm | ||
Height 6.5mm | ||
Maximum Frequency 2.8kHz | ||
Minimum Frequency 2000Hz | ||
- COO (Country of Origin):
- CN
Square SMT continuous tone buzzers
Square cased surface mounting
High sound output buzzers
