Vishay TEFD4300F Near Infrared Radiation Silicon PIN Photodiode, ±20 °, Through Hole T-1
- RS Stock No.:
- 279-9629
- Distrelec Article No.:
- 301-19-197
- Mfr. Part No.:
- TEFD4300F
- Manufacturer:
- Vishay

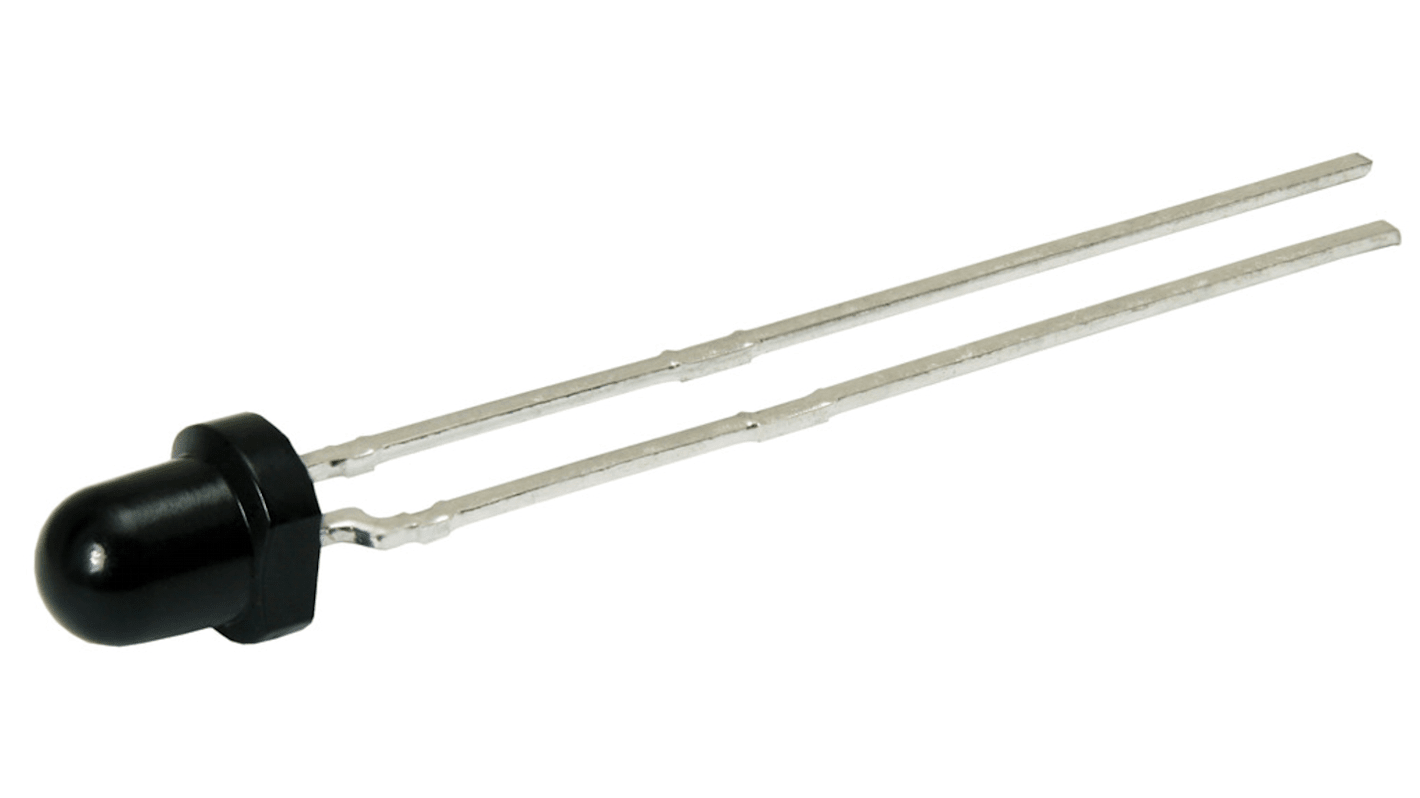

This image is representative of the product range
Bulk discount available
View bulk pricing optionsSubtotal (1 bag of 5000 units)*
PHP83,260.00
(exc. VAT)
PHP93,250.00
(inc. VAT)
FREE delivery for orders over ₱5,000.00
In Stock
- 15,000 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit | Per Bag* |
|---|---|---|
| 5000 - 5000 | PHP16.652 | PHP83,260.00 |
| 10000 + | PHP16.23 | PHP81,150.00 |
*price indicative
- RS Stock No.:
- 279-9629
- Distrelec Article No.:
- 301-19-197
- Mfr. Part No.:
- TEFD4300F
- Manufacturer:
- Vishay
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Vishay | |
| Spectrums Detected | Near Infrared Radiation | |
| Product Type | Silicon PIN Photodiode | |
| Wavelength of Peak Sensitivity | 950nm | |
| Package Type | T-1 | |
| Mount Type | Through Hole | |
| Packaging | Bulk | |
| Number of Pins | 2 | |
| Minimum Wavelength Detected | 770nm | |
| Maximum Wavelength Detected | 1070nm | |
| Typical Fall Time | 100ns | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 100°C | |
| Length | 34.4mm | |
| Standards/Approvals | RoHS | |
| Height | 3.9mm | |
| Diameter | 3mm | |
| Angle of Half Sensitivity | ±20 ° | |
| Breakdown Voltage | 60V | |
| Automotive Standard | No | |
| Dark Current | 3nA | |
| Typical Rise Time | 100ns | |
| Series | TEFD4300F | |
| Short Circuit Current | 15μA | |
| Open Circuit Voltage | 350mV | |
| Select all | ||
|---|---|---|
Brand Vishay | ||
Spectrums Detected Near Infrared Radiation | ||
Product Type Silicon PIN Photodiode | ||
Wavelength of Peak Sensitivity 950nm | ||
Package Type T-1 | ||
Mount Type Through Hole | ||
Packaging Bulk | ||
Number of Pins 2 | ||
Minimum Wavelength Detected 770nm | ||
Maximum Wavelength Detected 1070nm | ||
Typical Fall Time 100ns | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 100°C | ||
Length 34.4mm | ||
Standards/Approvals RoHS | ||
Height 3.9mm | ||
Diameter 3mm | ||
Angle of Half Sensitivity ±20 ° | ||
Breakdown Voltage 60V | ||
Automotive Standard No | ||
Dark Current 3nA | ||
Typical Rise Time 100ns | ||
Series TEFD4300F | ||
Short Circuit Current 15μA | ||
Open Circuit Voltage 350mV | ||
- COO (Country of Origin):
- TH
The Vishay silicon PIN photodiode with high radiant sensitivity in black, T-1 plastic package with daylight blocking filter. Filter bandwidth is matched with 850 nm to 950 nm IR emitters.
High radiant sensitivity
Fast response times
