Vishay VEMD2704 PIN Photodiode, ±67 °, Surface Surface Mount

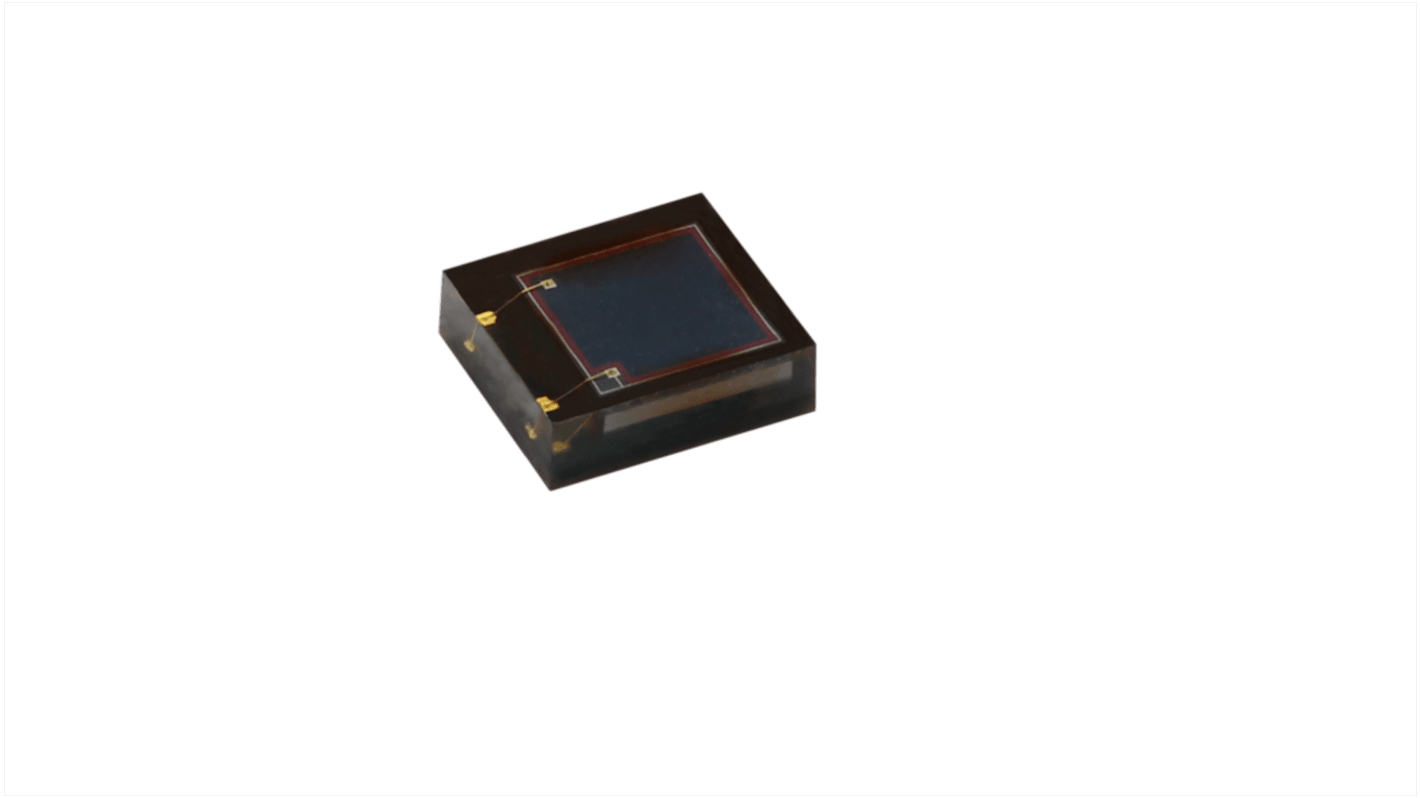

This image is representative of the product range

View all Photodiodes
Bulk discount available
View bulk pricing options

Subtotal (100 units, supplied on a continuous strip)*

PHP7,970.50

(exc. VAT)

PHP8,927.00

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 4,000 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units
Per Unit
100 - 240PHP79.705
250 - 490PHP73.889
500 - 990PHP67.965
1000 +PHP65.487

*price indicative

Packaging Options:
RS Stock No.:
228-052P
Mfr. Part No.:
VEMD2704
Manufacturer:
Vishay
Find similar products by selecting one or more attributes.
Select all

Brand

Vishay

Product Type

PIN Photodiode

Wavelength of Peak Sensitivity

940nm

Package Type

Surface Mount

Packaging

Tape & Reel

Mount Type

Surface

Minimum Wavelength Detected

350nm

Maximum Wavelength Detected

1100nm

Typical Fall Time

70ns

Minimum Operating Temperature

-40°C

Maximum Operating Temperature

85°C

Height

0.6mm

Standards/Approvals

RoHS

Width

1.8mm

Length

2mm

Angle of Half Sensitivity

±67 °

Series

VEMD2704

Typical Rise Time

70ns

Automotive Standard

No

Dark Current

40nA

The Vishay Silicon PIN Photodiode is a high speed, highly sensitive photodiode optimized for visible light detection. It offers enhanced sensitivity, making it Ideal for applications such as heart rate monitoring and Pulse oximetry, where accurate and fast light detection is crucial. Its performance is tailored to detect the subtle variations in light associated with biological signals, ensuring reliable operation in medical and health related devices.

Clear epoxy for maximum sensitivity

Suitable for visible and near infrared radiation
