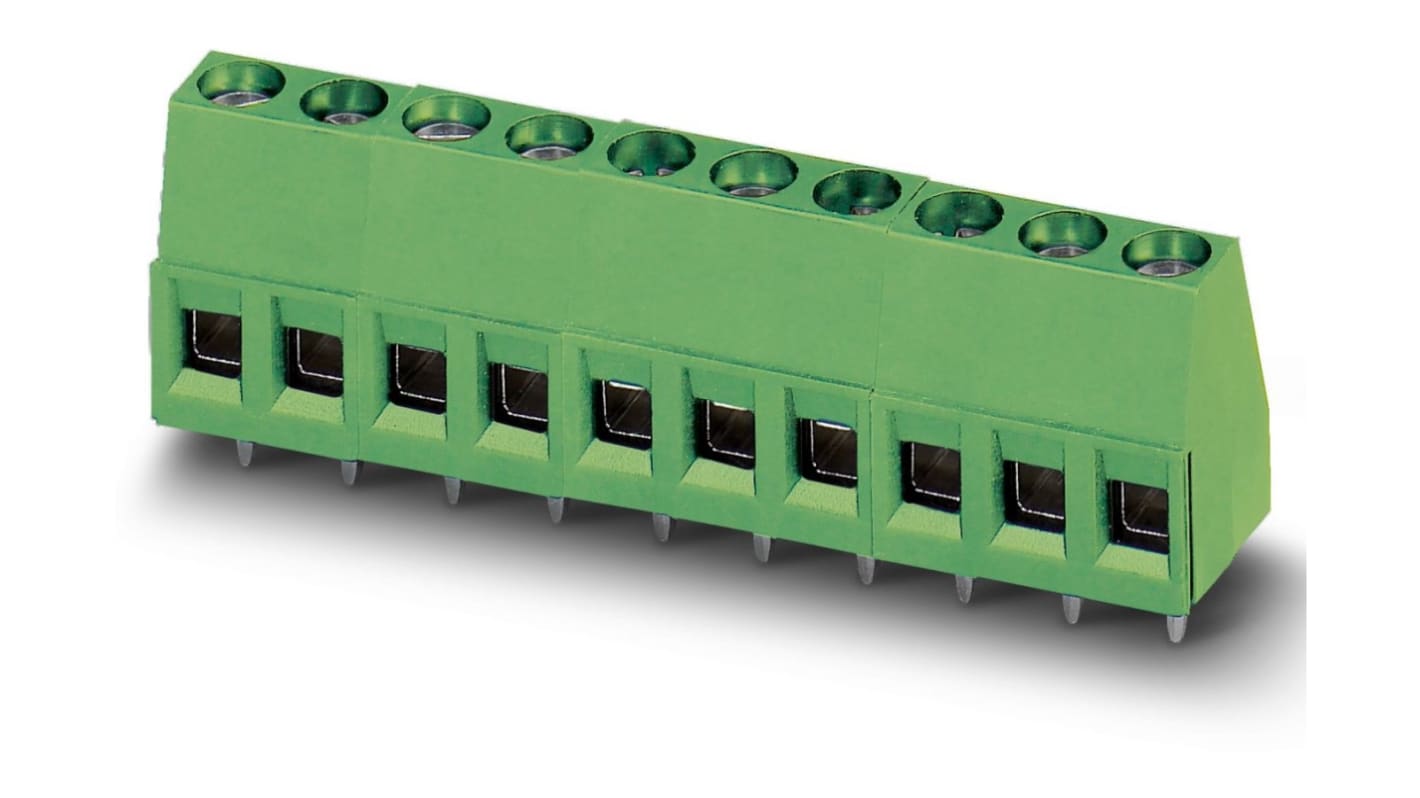

Phoenix Contact MKDS 1.5/9 Series PCB Terminal Block, 9-Contact, 5 mm Pitch, 1 Row, 1715718
- RS Stock No.:
- 854-2934
- Mfr. Part No.:
- 1715718
- Manufacturer:
- Phoenix Contact
Bulk discount available
Subtotal (1 box of 50 units)*
PHP14,181.60
(exc. VAT)
PHP15,883.40
(inc. VAT)
FREE delivery for orders over ₱3,000.00
Temporarily out of stock
- Shipping from April 27, 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit | Per Box* |
|---|---|---|
| 50 - 200 | PHP283.632 | PHP14,181.60 |
| 250 + | PHP255.269 | PHP12,763.45 |
*price indicative
- RS Stock No.:
- 854-2934
- Mfr. Part No.:
- 1715718
- Manufacturer:
- Phoenix Contact
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Phoenix Contact | |
| Product Type | PCB Terminal Block | |
| Number of Contacts | 9 | |
| Pitch | 5mm | |
| Number of Rows | 1 | |
| Current | 17.5A | |
| Housing Material | Polyamide | |
| Minimum Wire Size mm² | 0.14mm² | |
| Maximum Wire Size mm² | 2.5mm² | |
| Minimum Wire Size AWG | 26 AWG | |
| Maximum Wire Size AWG | 14 AWG | |
| Orientation | Straight | |
| Colour | Green | |
| Wire Connection Method | Screw Connection with Tension Sleeve | |
| Voltage | 400 V | |
| Series | MKDS 1.5/9 | |
| Standards/Approvals | No | |
| Depth | 17.3mm | |
| Width | 45 mm | |
| Length | 9.8mm | |
| Select all | ||
|---|---|---|
Brand Phoenix Contact | ||
Product Type PCB Terminal Block | ||
Number of Contacts 9 | ||
Pitch 5mm | ||
Number of Rows 1 | ||
Current 17.5A | ||
Housing Material Polyamide | ||
Minimum Wire Size mm² 0.14mm² | ||
Maximum Wire Size mm² 2.5mm² | ||
Minimum Wire Size AWG 26 AWG | ||
Maximum Wire Size AWG 14 AWG | ||
Orientation Straight | ||
Colour Green | ||
Wire Connection Method Screw Connection with Tension Sleeve | ||
Voltage 400 V | ||
Series MKDS 1.5/9 | ||
Standards/Approvals No | ||
Depth 17.3mm | ||
Width 45 mm | ||
Length 9.8mm | ||
- COO (Country of Origin):
- DE
PCB terminal block, nominal current: 17.5 A, rated voltage (III/2): 400 V, nominal cross section: 1.5 mm², Number of potentials: 9, Number of rows: 1, Number of positions per row: 9, product range: MKDS 1,5, pitch: 5 mm, connection method: Screw connection with tension sleeve, mounting: Wave soldering, conductor/PCB connection direction: 0 °, color: green, Pin layout: Linear pinning, Solder pin [P]: 3.5 mm, type of packaging: packed in cardboard. The article can be aligned to create different nos. of positions!
