Molex 39773 Series PCB Terminal Block, 4-Contact, 2.54 mm Pitch, PCB, 1 Row
- RS Stock No.:
- 287-2353
- Mfr. Part No.:
- 397730004
- Manufacturer:
- Molex

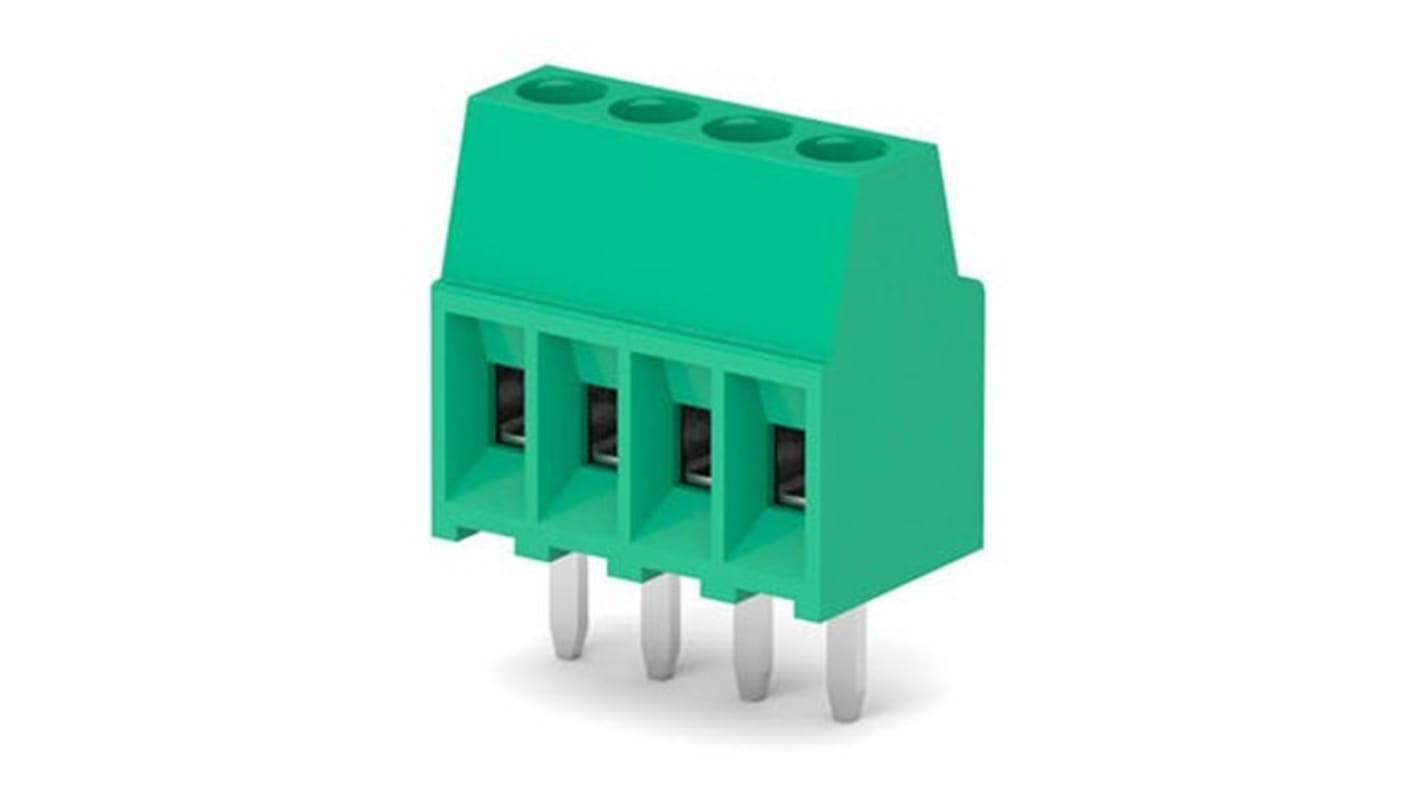

This image is representative of the product range
Bulk discount available
View bulk pricing optionsSubtotal (1 pack of 2 units)*
PHP316.50
(exc. VAT)
PHP354.48
(inc. VAT)
FREE delivery for orders over ₱3,000.00
In Stock
- Plus 96 unit(s) shipping from June 08, 2026
- Plus 1,436 unit(s) shipping from June 15, 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit | Per Pack* |
|---|---|---|
| 2 - 8 | PHP158.25 | PHP316.50 |
| 10 - 48 | PHP151.375 | PHP302.75 |
| 50 - 98 | PHP145.07 | PHP290.14 |
| 100 + | PHP138.765 | PHP277.53 |
*price indicative
- RS Stock No.:
- 287-2353
- Mfr. Part No.:
- 397730004
- Manufacturer:
- Molex
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Molex | |
| Number of Contacts | 4 | |
| Product Type | PCB Terminal Block | |
| Pitch | 2.54mm | |
| Number of Rows | 1 | |
| Current | 10A | |
| Minimum Wire Size mm² | 0.05mm² | |
| Mount Type | PCB | |
| Housing Material | Nylon | |
| Maximum Wire Size mm² | 1.31mm² | |
| Minimum Wire Size AWG | 16AWG | |
| Maximum Wire Size AWG | 30AWG | |
| Orientation | Vertical | |
| Colour | Green | |
| Voltage | 150V | |
| Series | 39773 | |
| Standards/Approvals | No | |
| Select all | ||
|---|---|---|
Brand Molex | ||
Number of Contacts 4 | ||
Product Type PCB Terminal Block | ||
Pitch 2.54mm | ||
Number of Rows 1 | ||
Current 10A | ||
Minimum Wire Size mm² 0.05mm² | ||
Mount Type PCB | ||
Housing Material Nylon | ||
Maximum Wire Size mm² 1.31mm² | ||
Minimum Wire Size AWG 16AWG | ||
Maximum Wire Size AWG 30AWG | ||
Orientation Vertical | ||
Colour Green | ||
Voltage 150V | ||
Series 39773 | ||
Standards/Approvals No | ||
- COO (Country of Origin):
- IT
The Molex 2.54mm Pitch Beau Eurostyle Fixed Mount PCB Terminal Block is designed to provide a reliable connection for various electrical applications. With its green color and compact design, this terminal block is suitable for use in tight spaces. It can handle a maximum current of 10.0A and a maximum voltage of 150V, making it suitable for a wide range of applications. The terminal block features a one-piece design with copper alloy metal and tin plating for enhanced durability and conductivity. Its nylon resin material ensures excellent insulation and protection against environmental factors. This terminal block is stackable and can be easily mounted, providing convenience during installation. With its high-quality construction and versatility, this terminal block is a reliable choice for your electrical connection needs.
Compact and space-saving design
Reliable connection for electrical applications
Maximum current of 10.0A and maximum voltage of 150V
One-piece design with copper alloy metal and tin plating
Nylon resin material for excellent insulation and protection
Stackable and easy to mount for convenient installation
