MPN

WAGO 218 Series PCB Terminal Block, 8-Contact, 2.54 mm Pitch, PCB, 1 Row

RS Stock No.:: 278-4111
Distrelec Article No.:: 304-42-162
Mfr. Part No.:: 218-508
Manufacturer:: WAGO

WAGO 218 Series PCB Terminal Block, 8-Contact, 2.54 mm Pitch, PCB, 1 Row

Subtotal (1 pack of 55 units)*

PHP21,138.04

(exc. VAT)

PHP23,674.585

(inc. VAT)

FREE delivery for orders over ₱3,000.00

Temporarily out of stock

Shipping from June 23, 2026

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per Unit	Per Pack*
55 +	PHP384.328	PHP21,138.04

*price indicative

RS Stock No.:: 278-4111
Distrelec Article No.:: 304-42-162
Mfr. Part No.:: 218-508
Manufacturer:: WAGO

Specifications

Technical data sheets

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	WAGO
	Product Type	PCB Terminal Block
	Number of Contacts	8
	Pitch	2.54mm
	Current	6A
	Number of Rows	1
	Housing Material	Polyamide 66
	Minimum Wire Size mm²	0.08mm²
	Mount Type	PCB
	Maximum Wire Size mm²	0.5mm²
	Minimum Wire Size AWG	28AWG
	Maximum Wire Size AWG	20AWG
	Wire Connection Method	Cage Clamp
	Colour	Grey
	Voltage	320V
	Series	218
	Depth	13mm
	Standards/Approvals	CSA, IEC/EN 60664-1, UL 1059
	Width	21.82mm

	Select all
	Brand WAGO
	Product Type PCB Terminal Block
	Number of Contacts 8
	Pitch 2.54mm
	Current 6A
	Number of Rows 1
	Housing Material Polyamide 66
	Minimum Wire Size mm² 0.08mm²
	Mount Type PCB
	Maximum Wire Size mm² 0.5mm²
	Minimum Wire Size AWG 28AWG
	Maximum Wire Size AWG 20AWG
	Wire Connection Method Cage Clamp
	Colour Grey
	Voltage 320V
	Series 218
	Depth 13mm
	Standards/Approvals CSA, IEC/EN 60664-1, UL 1059
	Width 21.82mm

Datasheet - 218-508

COO (Country of Origin):: PL

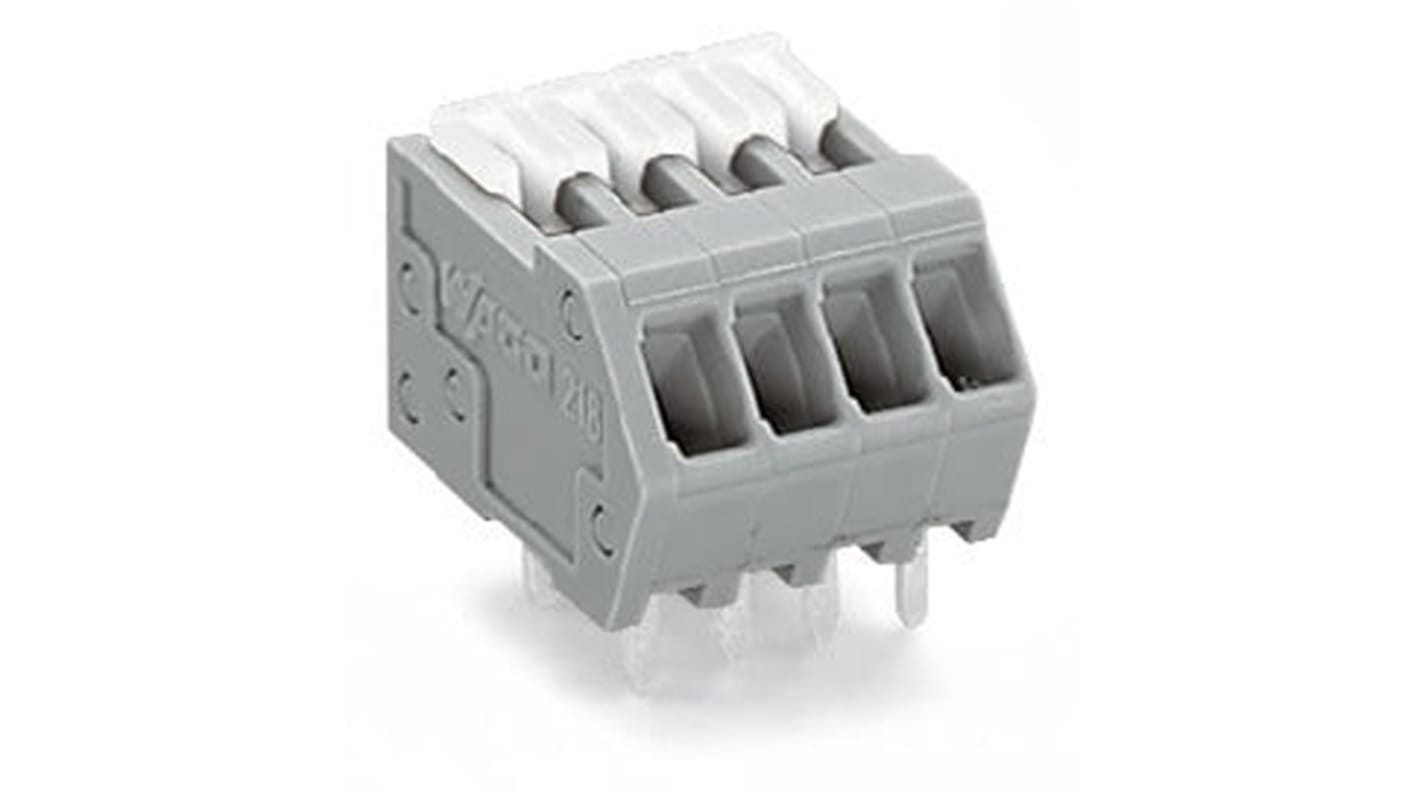

The WAGO PCB terminal block featuring a locking slides. It accommodating wires with a thickness of 0.5 mm². This PCB terminal block has an integration of CAGE CLAMP technology. It is available in a grey color.

RoHS compliant

V0 Flammability class per UL94
