Wurth Elektronik 4039 Series PCB Terminal Block, 5-Contact, 2.54 mm Pitch, PCB, 1 Row
- RS Stock No.:
- 191-7607
- Mfr. Part No.:
- 691403900005B
- Manufacturer:
- Wurth Elektronik

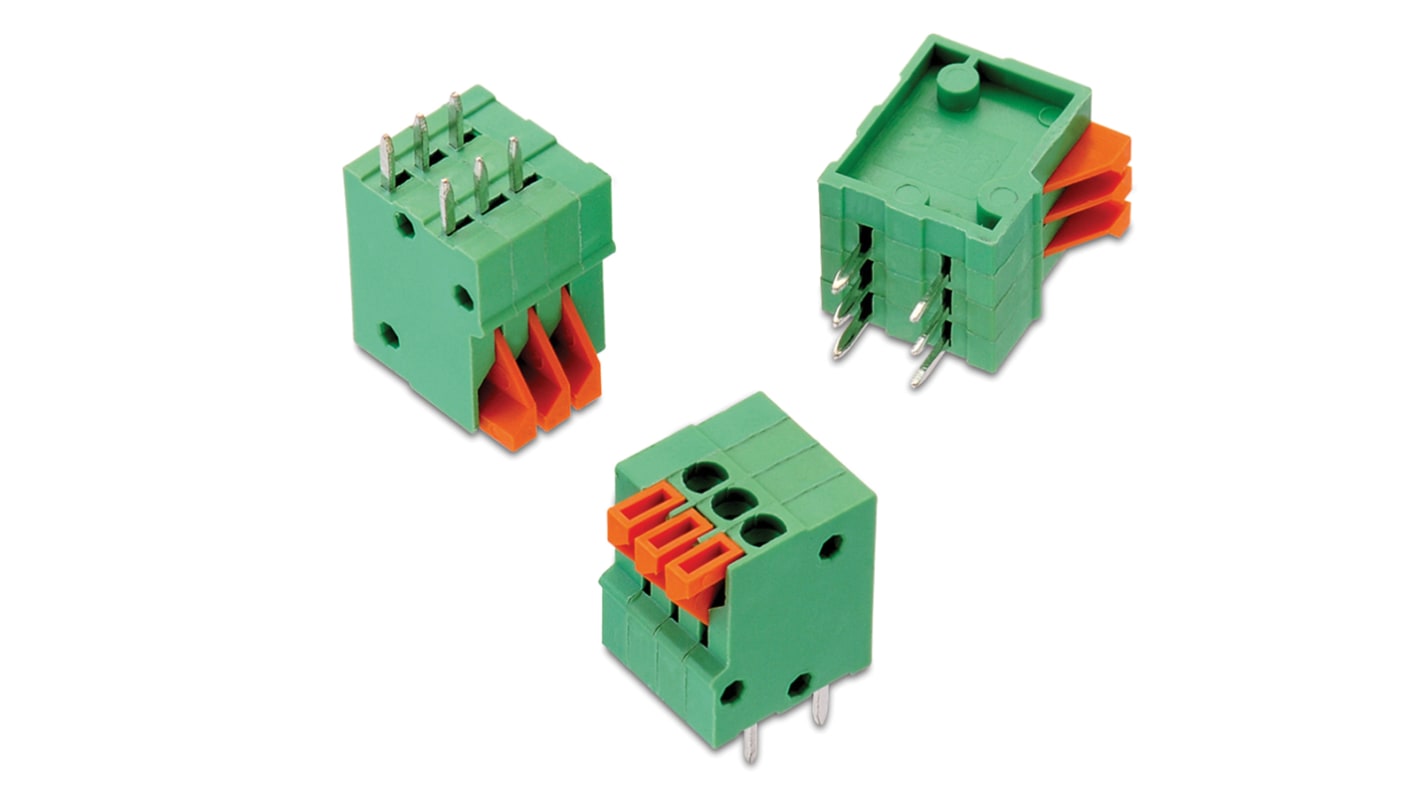

This image is representative of the product range
Bulk discount available
Subtotal (1 pack of 2 units)*
PHP269.89
(exc. VAT)
PHP302.276
(inc. VAT)
FREE delivery for orders over ₱3,000.00
Last RS stock
- Final 4 unit(s), ready to ship from another location
Units | Per Unit | Per Pack* |
|---|---|---|
| 2 - 8 | PHP134.945 | PHP269.89 |
| 10 - 18 | PHP125.21 | PHP250.42 |
| 20 - 98 | PHP116.97 | PHP233.94 |
| 100 + | PHP107.295 | PHP214.59 |
*price indicative
- RS Stock No.:
- 191-7607
- Mfr. Part No.:
- 691403900005B
- Manufacturer:
- Wurth Elektronik
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Wurth Elektronik | |
| Number of Contacts | 5 | |
| Product Type | PCB Terminal Block | |
| Pitch | 2.54mm | |
| Number of Rows | 1 | |
| Current | 6A | |
| Minimum Wire Size mm² | 0.12mm² | |
| Mount Type | PCB | |
| Maximum Wire Size mm² | 0.51mm² | |
| Minimum Wire Size AWG | 26AWG | |
| Maximum Wire Size AWG | 20AWG | |
| Orientation | Vertical | |
| Colour | Green | |
| Voltage | 150V ac | |
| Series | 4039 | |
| Width | 12.8mm | |
| Depth | 13.6mm | |
| Standards/Approvals | No | |
| Length | 15.24mm | |
| Select all | ||
|---|---|---|
Brand Wurth Elektronik | ||
Number of Contacts 5 | ||
Product Type PCB Terminal Block | ||
Pitch 2.54mm | ||
Number of Rows 1 | ||
Current 6A | ||
Minimum Wire Size mm² 0.12mm² | ||
Mount Type PCB | ||
Maximum Wire Size mm² 0.51mm² | ||
Minimum Wire Size AWG 26AWG | ||
Maximum Wire Size AWG 20AWG | ||
Orientation Vertical | ||
Colour Green | ||
Voltage 150V ac | ||
Series 4039 | ||
Width 12.8mm | ||
Depth 13.6mm | ||
Standards/Approvals No | ||
Length 15.24mm | ||
- COO (Country of Origin):
- CN
WR-TBL Würth Elektronik Teminal Blocks
The Terminal Block portfolio from Würth Elektronik gives piece of mind bringing power to the board. The newly stocked range covers wire protector, rising cage clamp, spring clamp and pluggable systems. From 2.50 mm up to 10.16 mm pitch, 57 Amp and a maximum number of up to 12 poles.
