WAGO 2604 Series PCB Connector, 11-Contact, 5 mm Pitch, Through Hole, 1 Row
- RS Stock No.:
- 220-898
- Mfr. Part No.:
- 2604-1111
- Manufacturer:
- WAGO
Subtotal (1 box of 30 units)*
PHP62,751.88
(exc. VAT)
PHP70,282.11
(inc. VAT)
FREE delivery for orders over ₱3,000.00
Temporarily out of stock
- Shipping from March 18, 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Box(es) | Per Box | Per Unit* |
|---|---|---|
| 1 + | PHP62,751.88 | PHP2,091.729 |
*price indicative
- RS Stock No.:
- 220-898
- Mfr. Part No.:
- 2604-1111
- Manufacturer:
- WAGO
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | WAGO | |
| Number of Contacts | 11 | |
| Product Type | PCB Connector | |
| Pitch | 5mm | |
| Current | 32A | |
| Number of Rows | 1 | |
| Mount Type | Through Hole | |
| Minimum Wire Size mm² | 0.2mm² | |
| Housing Material | Polyamide 66 | |
| Maximum Wire Size mm² | 4mm² | |
| Minimum Wire Size AWG | 24 AWG | |
| Maximum Wire Size AWG | 12 AWG | |
| Wire Connection Method | Push-in | |
| Colour | Grey | |
| Voltage | 32 V | |
| Standards/Approvals | No | |
| Depth | 19.2mm | |
| Width | 57.4 mm | |
| Series | 2604 | |
| Select all | ||
|---|---|---|
Brand WAGO | ||
Number of Contacts 11 | ||
Product Type PCB Connector | ||
Pitch 5mm | ||
Current 32A | ||
Number of Rows 1 | ||
Mount Type Through Hole | ||
Minimum Wire Size mm² 0.2mm² | ||
Housing Material Polyamide 66 | ||
Maximum Wire Size mm² 4mm² | ||
Minimum Wire Size AWG 24 AWG | ||
Maximum Wire Size AWG 12 AWG | ||
Wire Connection Method Push-in | ||
Colour Grey | ||
Voltage 32 V | ||
Standards/Approvals No | ||
Depth 19.2mm | ||
Width 57.4 mm | ||
Series 2604 | ||
- COO (Country of Origin):
- PL

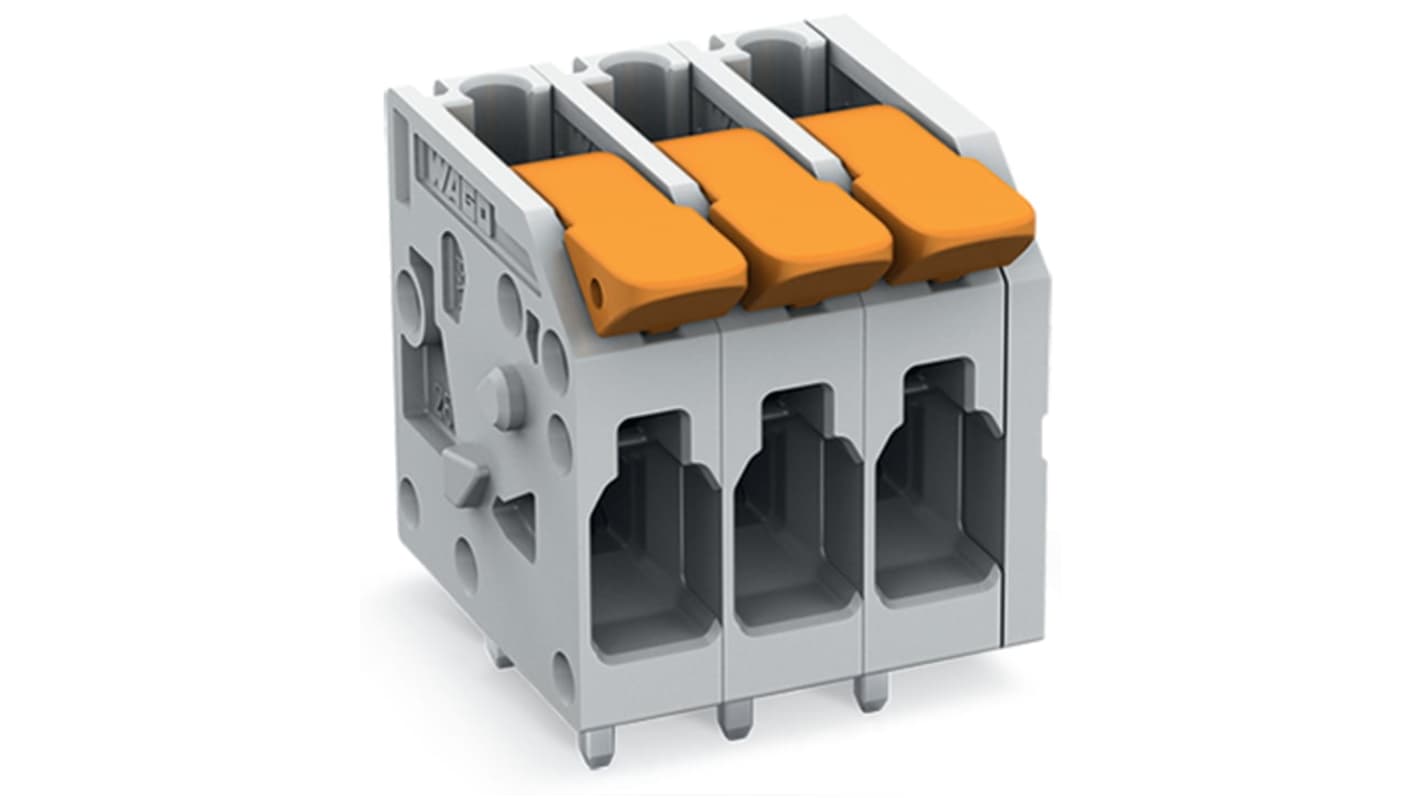

The Wago PCB terminal block revolutionises connection technology with its innovative Push-in CAGE CLAMP design, providing effortless and tool-free operation for solid and ferruled conductors. It features a lever actuation mechanism, ensuring multiple clamping units can remain open simultaneously, which simplifies the insertion of multi-core cables.
Optimised for use in extreme temperature environments
Wide range of electrical ratings supports diverse applications
Compatible with multiple conductor sizes and types
Compliance with international safety standards assures reliability
