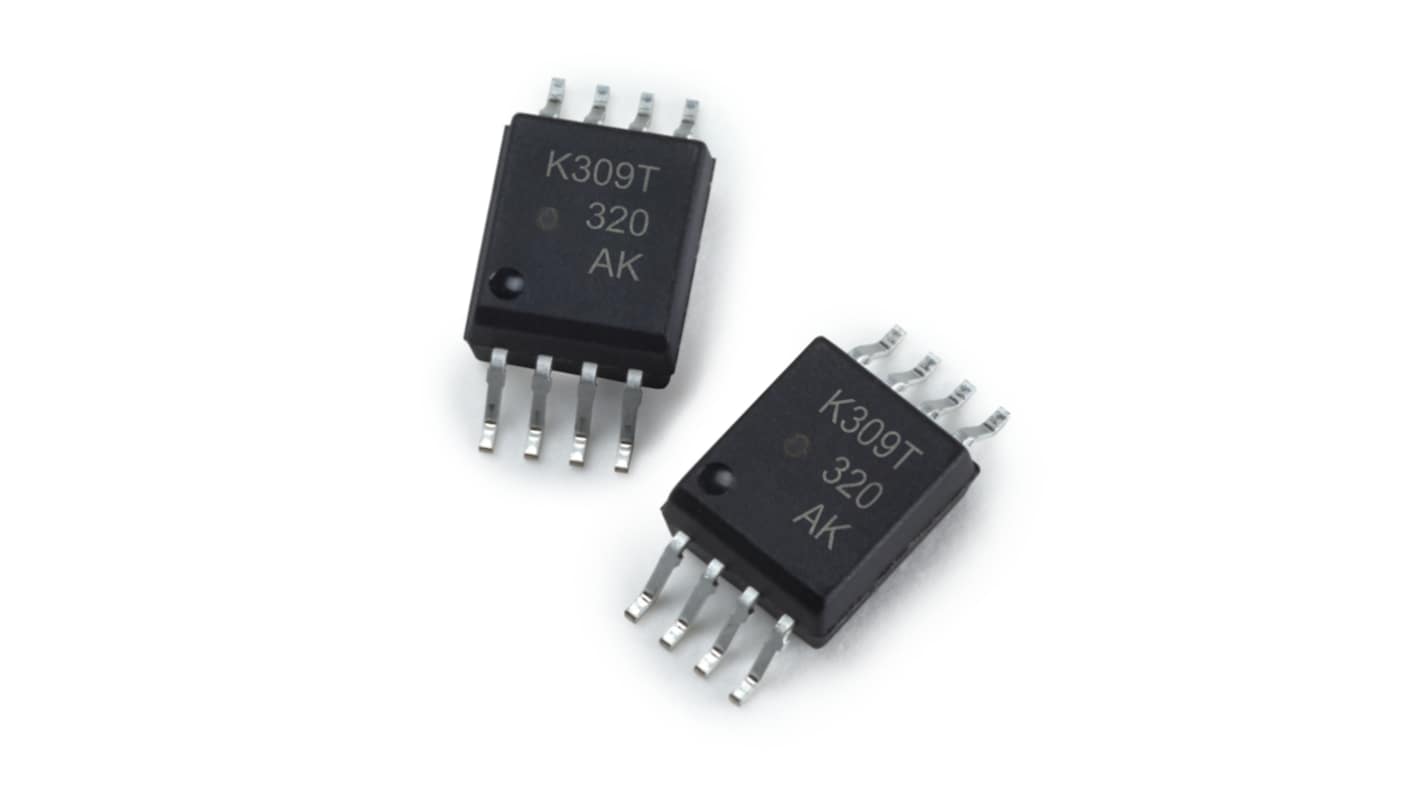

Broadcom ACPL-K309T-000E DC Input Optocoupler, Surface Mount, 8-Pin SO Stretched

View all Optocouplers

Subtotal (1 pack of 2 units)*

PHP377.78

(exc. VAT)

PHP423.11

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 1,027 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Pack(s)
Per Pack
Per Unit*
1 +PHP377.78PHP188.89

*price indicative

RS Stock No.:
227-934
Mfr. Part No.:
ACPL-K309T-000E
Manufacturer:
Broadcom
Find similar products by selecting one or more attributes.
Select all

Brand

Broadcom

Product Type

Optocoupler

Mount Type

Surface Mount

Maximum Forward Voltage

1.8V

Packaging

Tape & Reel

Number of Pins

8

Package Type

SO Stretched

Input Current Type

DC

Typical Rise Time

0.26ms

Maximum Input Current

30mA

Minimum Operating Temperature

-40°C

Maximum Operating Temperature

125°C

Standards/Approvals

UL/cUL 1577, IEC/EN 60747-5-5

Typical Fall Time

0.013μs

Series

ACPL-K309T

Automotive Standard

AEC-Q100

COO (Country of Origin):
PH
The Broadcom Automotive Photovoltaic Driver with R2Coupler Isolation is specifically designed to drive high voltage MOSFETs and/or IGBTs. The device consists of an AlGaAs infrared light-emitting diode input stage optically coupled to an output detector circuit. The detector consists of a photovoltaic diode array and a turn off circuit. The photovoltaic driver is turned on upon a minimum input current of 3 mA through the input LED. The photovoltaic driver is turned off upon an input voltage of 0.6 V or less.

Qualified to AEC-Q100 Grade 1 test guidelines

Low IF drive of 3mA

Fast switching speed

Compact SSO-8 package with 8mm clearance and creepage
