- RS Stock No.:
- 144-1857
- Mfr. Part No.:
- NOJD107M006RWJ
- Manufacturer:
- KYOCERA AVX
Temporarily out of stock - back order for despatch 11/09/2024, delivery within 10 working days from desptach date
Added
Price Each (On a Reel of 500)
PHP34.082
(exc. VAT)
PHP38.172
(inc. VAT)
Units | Per Unit | Per Reel* |
500 + | PHP34.082 | PHP17,041.00 |
*price indicative |
- RS Stock No.:
- 144-1857
- Mfr. Part No.:
- NOJD107M006RWJ
- Manufacturer:
- KYOCERA AVX
Technical data sheets
Legislation and Compliance
Product Details

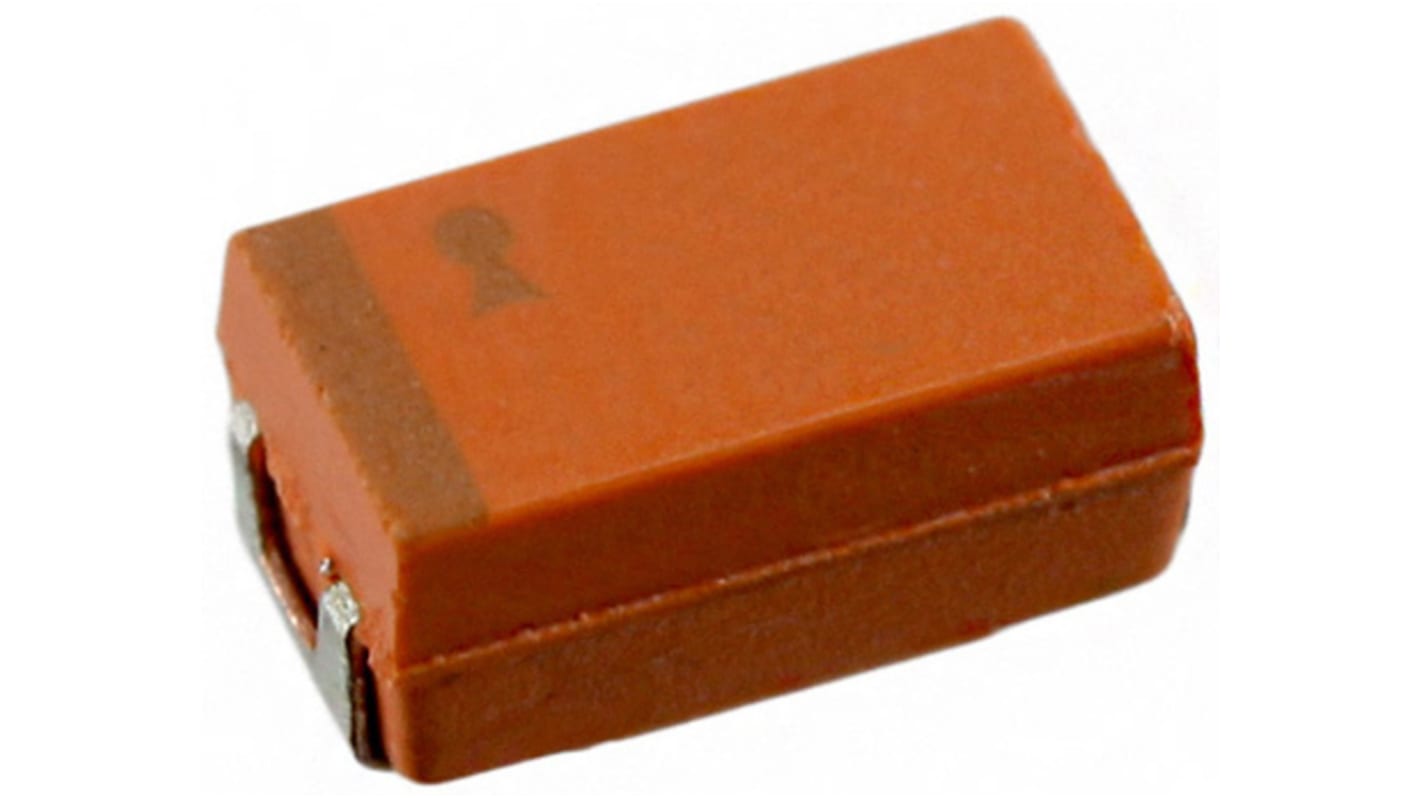

AVX 2917 NOJ Series Niobium Oxide Capacitors
AVX oxicap capacitors feature niobium oxide as the main material for the anode electrode for general applications. Niobium oxide has much higher ignition energy (200 times) and much lower burning rate than pure metal materials such as Tantalum or Niobium. This feature means that OxiCap® multiylayer ceramic capacitors will not burn up to the category voltage. They are suitable for applications with rail voltages of up to 7 V.
Features
Non- burn safe technology
CV range: 2.2 to 1000 μF / 1.8 to 10 V
13 case sizes available
Reliability level: 0.5%/1000 HRS. At 85°C
CV range: 2.2 to 1000 μF / 1.8 to 10 V
13 case sizes available
Reliability level: 0.5%/1000 HRS. At 85°C
Applications
In-cabin entertainment systems
Seat position modules
Airbag controls etc
Seat position modules
Airbag controls etc
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
2917 Range
Specifications
Attribute | Value |
---|---|
Series | NOJ |
Capacitance | 100µF |
Tolerance | ±20% |
Voltage | 6.3V dc |
Package/Case | 7343-31 |
Mounting Type | Surface Mount |
Equivalent Series Resistance | 0.4Ω |
Dissipation Factor | 6% |
Leakage Current | 12 μA |
Dimensions | 7.3 x 4.3 x 2.9mm |
Lead Pitch | 4.4mm |
Depth | 4.3mm |
Height | 2.9mm |
Polarised | Polar |
Terminal Type | Surface Mount |
Tolerance Minus | -20% |
Tolerance Plus | +20% |
Surge Voltage | 13V |
Minimum Operating Temperature | -55°C |
Dielectric Material Family | Niobium |
Length | 7.3mm |
Maximum Operating Temperature | +105°C |
