KYOCERA AVX 4.7 μF Niobium Capacitor 6.3 V ±20 %, Surface 3.2 mm, NOJ
- RS Stock No.:
- 144-1914
- Mfr. Part No.:
- NOJA475M006RWJ
- Manufacturer:
- KYOCERA AVX

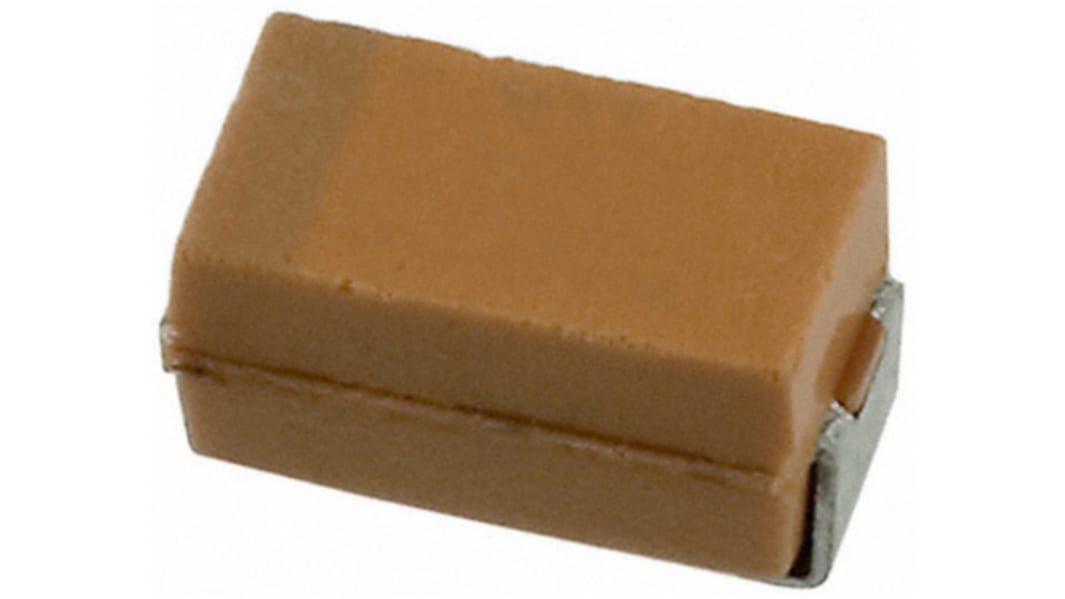

This image is representative of the product range
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
- RS Stock No.:
- 144-1914
- Mfr. Part No.:
- NOJA475M006RWJ
- Manufacturer:
- KYOCERA AVX
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | KYOCERA AVX | |
| Product Type | Niobium Capacitor | |
| Series | NOJ | |
| Capacitance | 4.7μF | |
| Tolerance | ±20 % | |
| Packaging | Tape & Reel | |
| Voltage | 6.3 V | |
| Package/Case | 3216-18 | |
| Polarity | Polar | |
| Mount Type | Surface | |
| Equivalent Series Resistance ESR | 3.2Ω | |
| Dissipation Factor | 6% | |
| Terminal Type | Surface Mount | |
| Leakage Current | 1.1μA | |
| Minimum Operating Temperature | -55°C | |
| Maximum Operating Temperature | 105°C | |
| Standards/Approvals | RoHS | |
| Height | 1.6mm | |
| Width | 1.6 mm | |
| Ripple Current | 0.07A | |
| Length | 3.2mm | |
| Automotive Standard | AEC-Q200 | |
| Surge Voltage | 13V | |
| Select all | ||
|---|---|---|
Brand KYOCERA AVX | ||
Product Type Niobium Capacitor | ||
Series NOJ | ||
Capacitance 4.7μF | ||
Tolerance ±20 % | ||
Packaging Tape & Reel | ||
Voltage 6.3 V | ||
Package/Case 3216-18 | ||
Polarity Polar | ||
Mount Type Surface | ||
Equivalent Series Resistance ESR 3.2Ω | ||
Dissipation Factor 6% | ||
Terminal Type Surface Mount | ||
Leakage Current 1.1μA | ||
Minimum Operating Temperature -55°C | ||
Maximum Operating Temperature 105°C | ||
Standards/Approvals RoHS | ||
Height 1.6mm | ||
Width 1.6 mm | ||
Ripple Current 0.07A | ||
Length 3.2mm | ||
Automotive Standard AEC-Q200 | ||
Surge Voltage 13V | ||
- COO (Country of Origin):
- SV
AVX Niobium Oxide Capacitors
AVX oxicap capacitors feature niobium oxide as the main material for the anode electrode for general applications. Niobium oxide has much higher ignition energy (200 times) and much lower burning rate than Pure metal materials such as Tantalum or Niobium. This feature means that OxiCap® multiylayer ceramic capacitors will not burn up to the category voltage. They are suitable for applications with rail voltages of up to 7 V.
Features
Non- burn safe technology
CV range: 2.2 to 1000 μF / 1.8 to 10 V
13 case sizes available
Reliability level: 0.5%/1000 HRS. At 85°C
Applications
In-cabin entertainment systems
Seat position modules
Airbag controls etc.
1206 Range
C0G (NP0) is the most popular formulation of the "temperature-compensating", EIA Class I ceramic materials
X7R formulations are called "temperature stable" Ceramics and fall into EIA Class II materials
Y5V formulations are for general-purpose use in a limited temperature range.These characteristics make Y5V Ideal for decoupling applications
