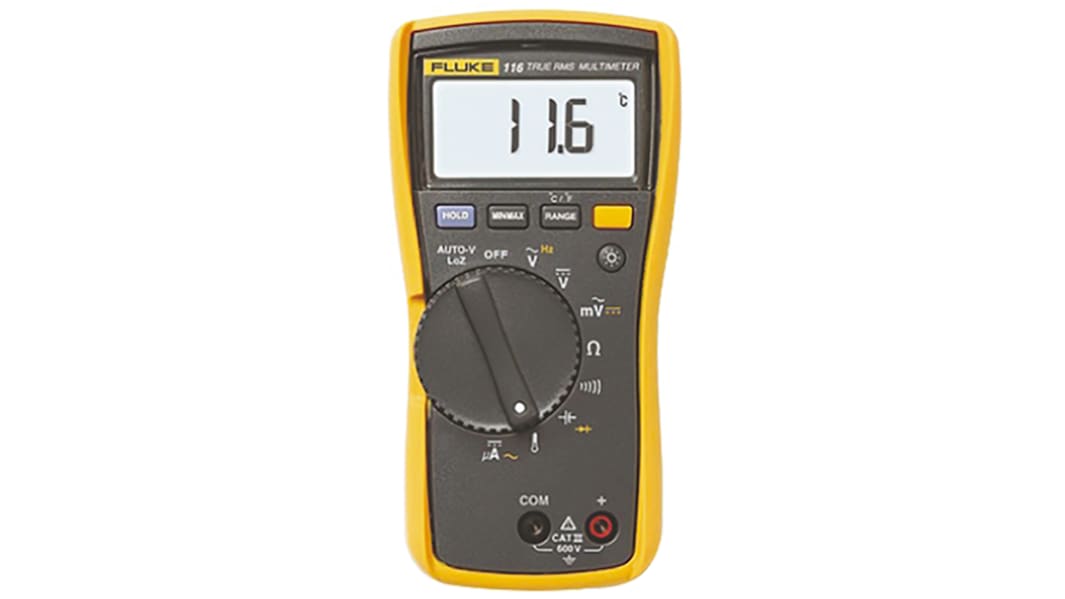

Fluke 116 Handheld Digital Multimeter True RMS, 600 μA ac Max, 600 μA Max, 600 V ac Max

RS Stock No.:: 616-1476
Distrelec Article No.:: 176-05-439
Mfr. Part No.:: FLUKE-116 EUR
Manufacturer:: Fluke

Fluke 116 Handheld Digital Multimeter True RMS, 600 μA ac Max, 600 μA Max, 600 V ac Max

Subtotal (1 unit)*

PHP18,966.00

(exc. VAT)

PHP21,241.92

(inc. VAT)

FREE delivery for orders over ₱3,000.00

Limited stock

2 left, ready to ship

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per Unit
1 +	PHP18,966.00

*price indicative

RS Stock No.:: 616-1476
Distrelec Article No.:: 176-05-439
Mfr. Part No.:: FLUKE-116 EUR
Manufacturer:: Fluke

Specifications

Technical data sheets

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Fluke
	Product Type	Multimeter
	Multimeter Type	Handheld
	Display Type	Digital
	Model Number	116
	Resistance Resolution	100mΩ
	Functions Measured	Temperature, DC Current, Continuity, DC Voltage, Capacitance, Resistance, Frequency, AC Current, Diode, AC Voltage
	Maximum AC Current Measurement	600μA ac
	Maximum DC Current Measurement	600μA
	Maximum DC Voltage Measurement	600V dc
	Maximum AC Voltage Measurement	600V ac
	Maximum Resistance Measurement	40mΩ
	True RMS	Yes
	DC Current Accuracy	±1 % rdg + 2 Digits
	AC Current Accuracy	±1.5 % rdg + 3 Digits
	AC Voltage Accuracy	±1 % rdg + 3 Digits
	DC Voltage Accuracy	±0.5 % rdg + 2 Digits
	DC Voltage Resolution	0.1 mV dc
	AC Current Resolution	0.1μA ac
	DC Current Resolution	0.1μA dc
	AC Voltage Resolution	0.1mV ac
	Maximum Frequency	1kHz
	Resistance Measurement Accuracy	±1.5 % + 2 Digits
	Minimum Operating Temperature	-10°C
	Maximum Operating Temperature	50°C
	Battery Life	400h
	Weight	550g
	Height	167mm
	Standards/Approvals	No
	Width	84 mm
	Length	46mm
	Safety Category Level	CAT III
	Safety Category Voltage	600V

	Select all
	Brand Fluke
	Product Type Multimeter
	Multimeter Type Handheld
	Display Type Digital
	Model Number 116
	Resistance Resolution 100mΩ
	Functions Measured Temperature, DC Current, Continuity, DC Voltage, Capacitance, Resistance, Frequency, AC Current, Diode, AC Voltage
	Maximum AC Current Measurement 600μA ac
	Maximum DC Current Measurement 600μA
	Maximum DC Voltage Measurement 600V dc
	Maximum AC Voltage Measurement 600V ac
	Maximum Resistance Measurement 40mΩ
	True RMS Yes
	DC Current Accuracy ±1 % rdg + 2 Digits
	AC Current Accuracy ±1.5 % rdg + 3 Digits
	AC Voltage Accuracy ±1 % rdg + 3 Digits
	DC Voltage Accuracy ±0.5 % rdg + 2 Digits
	DC Voltage Resolution 0.1 mV dc
	AC Current Resolution 0.1μA ac
	DC Current Resolution 0.1μA dc
	AC Voltage Resolution 0.1mV ac
	Maximum Frequency 1kHz
	Resistance Measurement Accuracy ±1.5 % + 2 Digits
	Minimum Operating Temperature -10°C
	Maximum Operating Temperature 50°C
	Battery Life 400h
	Weight 550g
	Height 167mm
	Standards/Approvals No
	Width 84 mm
	Length 46mm
	Safety Category Level CAT III
	Safety Category Voltage 600V

RoHS Status: Exempt

FLUKE Multimeter, Built-in Thermometer, LCD Display - FLUKE-116 EUR

Pinpoint problems in heating, ventilation and air-conditioning systems with this multimeter from FLUKE. It has modes including resistance, capacitance and continuity, so you can get all of your testing done using just one device. It records minimum, maximum and average readings to spot signal fluctuations. The Auto-V setting automatically detects the voltage type to speed things up, while the LoZ function prevents ghost voltages from messing up your measurements. A built-in thermometer helps you take readings from heating and cooling devices, to check they're doing their jobs. Fitted with a type K thermocouple, this precision unit is capable of measuring temperatures between -40°C and +400°C with an accuracy of ±1%.

Features & Benefits

• Large digits and a backlight means poor light won't stop you from working

• Battery-powered, so there's no need to find an electric socket

• Safety rated up to 600V, to work with high voltages in distribution circuits

• Ergonomic design for comfortable handling

• Integral stand props it up on benches

Applications

• Building maintenance

• Industrial heaters and driers

• Ducts and vents

Can I use this multimeter to test flame sensors?

Yes, this multimeter has microamps to let you test flame sensors on domestic boilers as well as industrial heaters and driers.

Fluke 16 True RMS HVAC Digital Multimeter with Built-In Thermometer

The Fluke 16 Digital Multimeter is designed to function like a standard Multimeter and exclusive HVAC modes, unlike other models in the Fluke 10 series, the Fluke 116 comes with a built-in thermometer, allowing engineers to measure temperature and microamp mode for testing flame sensors to quickly troubleshoot problems for HVAC applications. The Fluke 116 measures resistance, continuity, frequency and capacitance. The Fluke 116 Multimeter are independently tested for safe use in CAT III 600 V Environments.

Why buy the Fluke 116 Digital Multimeter?

• VoltAlertTM Technology for intergrated non-contact voltage detection

• AutoVolt feature for automatic AC/DC voltage selection

• LoZ: Low input impedance to eliminate stray voltage ensures that ghost voltages don’t have an effect on readings

• Large white LED backlight, perfect for when you’re working in darkened areas

• True RMS meanng it will maintain its accuracy when testing on irregular AC connections

• Min/Max/Average to record signal fluctuations

• Current measurement 20A (30 seconds momentary; 10A continuous)

• Resistance , continuity, frequency and capacitance testing capability

Fluke 116 HVAC Digital Multimeter key benefits?

• Compact, Ergonomic design and can be used with one hand

• Built-in thermometer allows Temperature measurement from -40°C to +400°C using the Type K thermocouple input adaptor

• Capacitance up to 10000μF to test motor start and run capacitors

• Microamp current range for flame sensor measurement down to μA

• 4000 count auto ranging Multimeter

• 40MΩ resistance range

• 33 segment analogue bargrapgh on display

• Diode test

• Continuity test

• V-Check™ mode for safety. Automatically switches from ohm/continuity mode to measure ac or dc volts when voltages above 4.5V are present at the input

• Min/Max recording with elapsed time (ideal for recording signal fluctuations)

• Continuity capture symbolically displays open and short circuits as brief as 250μs

• Meets IEC1010-1 (safety standard) CAT III 600V

• Replacement type K thermocouple available separately accepts other type K thermocouple sensors with subminiature connectors (see accessories)

What are the typical Applications for the Fluke 116 Digital Multimeter?

The Fluke 116 model is built for engineers who work in the HVAC environment (heating, ventilation and air conditioning)

Additional Specification

• DC Voltage Accuracy: 0.5% +2d

• AC Voltage Accuracy: 2.0% +3d

• DC Current Accuracy 1.0% +2d

• AC Current Accuracy 1.5% +3d

• Resistance Accuracy: 1.5% +2d

• Diode Test Range: 2.000V

• Diode Test Resolution: 0.001V

• Diode Test Accuracy: 0.9% +2d

• Capacitance Accuracy: 1.9% +2d

• Temperature Resolution 0.1C

• Temperature Accuracy 1% +10d

• Display Count 6000

• Display Update 4/sec

• Bar Graph Segments 33

• Bar Graph Update 32/sec

• Please note accuracy is specified for 1 year after calibration, at operating temperatures of 18 °C to 28 °C, with relative humidity at 0 % to 95 %."

Does the Fluke 116 come with a warranty?

The Fluke 116 comes with a 3 year warranty giving engineers the peace of mind

Standards

From Fluke, the 116 is designed for heating, ventilation and air conditioning (HVAC) engineers. The model includes temperature measurement and microamp current ranges to quickly troubleshoot HVAC problems.

TL75 Test Leads, 80BK Integrated Temperature Probe, holster, user’s manual and 9V battery (installed)
