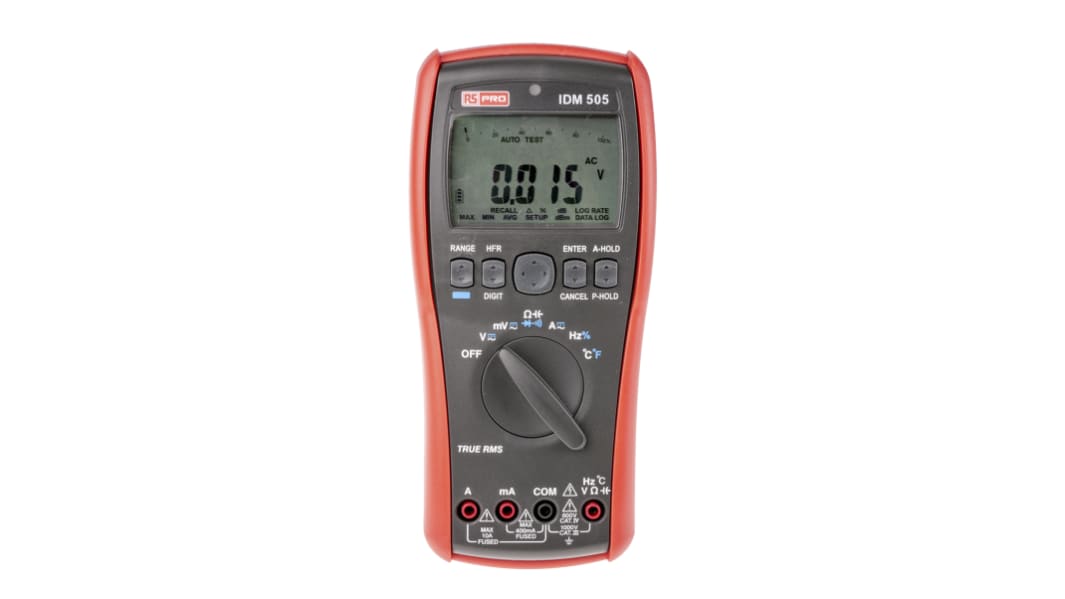

RS PRO IDM505 Handheld Digital Multimeter, True RMS, 10A ac Max, 10A dc Max, 1000V ac Max

View all Multimeters

Subtotal (1 unit)*

PHP19,496.09

(exc. VAT)

PHP21,835.62

(inc. VAT)

Add to Basket
Select or type quantity
Limited stock
  • 7 left, ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per Unit
1 +PHP19,496.09

*price indicative

RS Stock No.:
124-1960
Manufacturer:
RS PRO
Find similar products by selecting one or more attributes.
Select all

Brand

RS PRO

Multimeter Type

Handheld

Display Type

Digital

Model Number p

IDM505

Functions Measured

AC Current, AC Voltage, Capacitance, Continuity, DC Current, DC Voltage, Diode, Duty Cycle, Frequency, Resistance, Temperature

Absolute Maximum AC Current Measurement

10A ac

Absolute Maximum Resistance Measurement

40MΩ

Absolute Maximum AC Voltage Measurement

1000V ac

Absolute Maximum DC Current Measurement

10A dc

Absolute Maximum DC Voltage Measurement

1000V dc

Absolute Maximum Temperature Measurement

+1200°C

Absolute Maximum Capacitance Measurement

40mF

True RMS

Yes

Maximum Frequency

4MHz

AC Current Measurement Resolution

0.1µA ac

DC Current Measurement Resolution

0.1µA dc

AC Voltage Measurement Resolution

0.001mV ac

DC Voltage Measurement Resolution

0.0001mV dc

Resistance Measurement Resolution

10mΩ

Safety Category Level

CAT III, CAT IV

Temperature Measurement Resolution

0.1°C

Capacitance Measurement Resolution

0.01nF

Safety Category Voltage

600 V, 1000V

Weight

620 (with Holster)g

Best DC Current Accuracy

±0.1 % + 4 Digit

Battery Type

1.5 V AA Alkaline (NEDA 15A)

Height

200mm

Minimum Operating Temperature

0°C

Best Resistance Measurement Accuracy

±0.025 % + 30 Digit

Best DC Voltage Accuracy

±0.015 % + 20 Digit

Maximum Operating Temperature

+50°C

Dimensions

95 x 51.2 x 200mm

Best Capacitance Measurement Accuracy

±0.8 % + 2 Digit

Best AC Current Accuracy

±0.7 % + 80 Digit

Best AC Voltage Accuracy

±0.4 % + 50 Digit

Width

51.2mm

Length

95mm

Best Temperature Measurement Accuracy

±1 % + 1 °C

RS PRO IDM505 Handheld Digital Multimeter


RS PRO IDM505 digital multimeter is designed for harsh environments. With a watertight gasket at the seams rotary switch, input terminal and battery cover to keep out dust, dirt and splashing. These handheld devices can measure capacitance, voltage, electrical current, frequency, temperature, duty cycle and resistance with diode and continuity check. This meter has an LCD display where the measurement readouts can be viewed.

The ergonomically designed slim shape protective holster has a built-in tilt stand, nail hook and is convenient for test lead storage.

RS PRO range of handheld and bench digital multimeters are RS approved meaning that they are great value for money and high quality you can rely on.

Features and Benefits


100000/10000 Count extra-large digital display
43 segments analogue bar graph
Auto Backlit
Auto AC, DC and AC+DC on Voltage
Current mode with Frequency Indication
Auto selection on Ohm, Diode or Continuity
On-Screen-Menu Selection
Navigator Key Drive
High-Frequency Rejection (HFR)
0.015% DCV accuracy
AC+DC True RMS indication
0.5 ms Peak Hold
Auto Hold
Store/Recall memories
dBm/dB measurement
20000 records data logging capacity
Optical USB interface

What does it measure?


AC and DC Voltage up to 1000 V
AC and DC Current up to 10 A
Resistance measurement resolution 10 mΩ
Diode Test 1 mV

Batteries?


Battery life 100 hours
4 x 1.5 V IEC LR6 or AA
Low battery indicator
Auto power off after 30 minutes after the last operation

What does it include?


Battery installed
Test Leads
User manual
USB Cable
Software CD
Holster

Multimeter Size:


Width 95 mm
Length 207 mm
Depth 52 mm

Added Benefits:


Designed to operate in harsh environments
Watertight gasket
Battery cover protects from dirt, dust and splashes
Ergonomic
Slim
Protective holster
Built-in stand
Nail hook
Test lead storage

Typical Applications:
A digital multimeter is a handy test tool that measures electrical values such as voltage, current, and resistance. A DMM is used by technicians in the following areas:
Electrical and electronic industries

Safety guidelines
When using any electrical test equipment it is advised that you refer to the user’s manual for proper working operating procedures and safety precautions in order to avoid potential safety hazards.

What is the difference between an analogue and a digital multimeter?
The main difference is the display. A digital multimeter will show the results as numbers on a screen (usually a LED or LCD screen) whereas the analogue version has a needle to show the value.

Warning

When using test leads or probes, keep your fingers behind the finger guards. Remove test lead from the meter before opening the battery door or meter case.

Standards

CAT IV 600 V/CAT III 1000 V IEC 61010-1
