STMicroelectronics, Brushed DC Motor Motor Driver IC, 52 V 2.8 A 48-Pin, VFQFPN

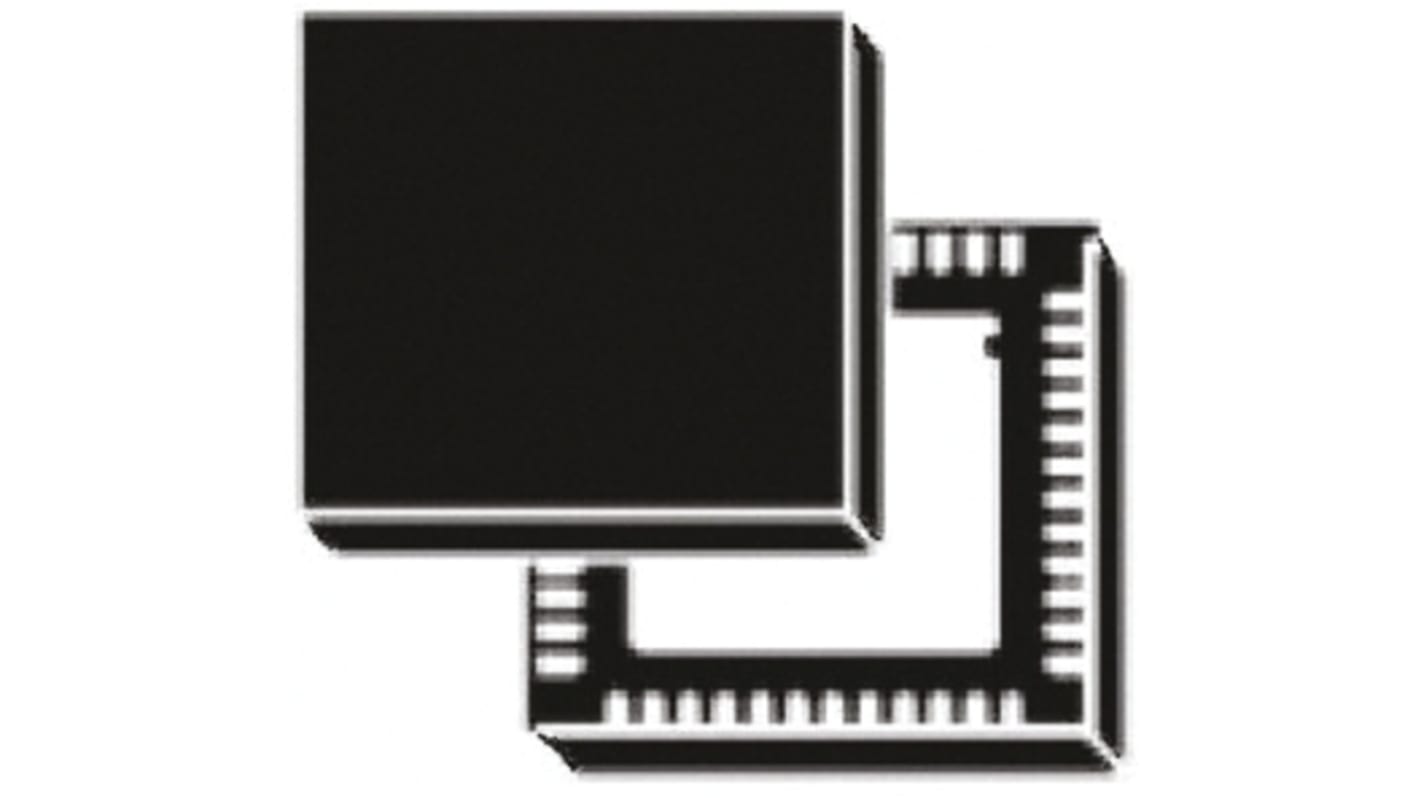

This image is representative of the product range

View all Motor Driver ICs

Subtotal (1 tray of 260 units)*

PHP60,730.80

(exc. VAT)

PHP68,018.60

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • Shipping from October 23, 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per Unit
Per Tray*
260 +PHP233.58PHP60,730.80

*price indicative

RS Stock No.:
165-6834
Mfr. Part No.:
L6206Q
Manufacturer:
STMicroelectronics
Find similar products by selecting one or more attributes.
Select all

Brand

STMicroelectronics

Product Type

Motor Driver IC

Motor Type

Brushed DC Motor

Configuration

Full Bridge

Maximum IGBT Collector Current

2.8A

Maximum Collector Emitter Voltage Vceo

52V

Mount Type

Surface

Package Type

VFQFPN

Output Current

5.6A

Pin Count

48

Minimum Supply Voltage

8V

Maximum Supply Voltage

52V

Typical Switching Frequency

100kHz

Minimum Operating Temperature

-25°C

Maximum Operating Temperature

125°C

Standards/Approvals

No

Height

0.95mm

Width

7.15 mm

Series

L6206Q

Length

7.15mm

Supply Current

2.5A

Automotive Standard

No

COO (Country of Origin):
MY

Motor Control Power Drivers, STMicroelectronics


The range of power drivers by STMicroelectronics are designed to drive a motor or a complex load through the logic commands at its input. They can be used with microcontrollers, DSPs or FPGAs in a motor or motion control system. The power drivers come in Dual Full Bridge, Full Bridge and 3 phase.
