Vishay Type N-Channel MOSFET, 430 A, 80 V Enhancement, 8-Pin PowerPAK (8x8LR) SQJQ184E-T1_GE3

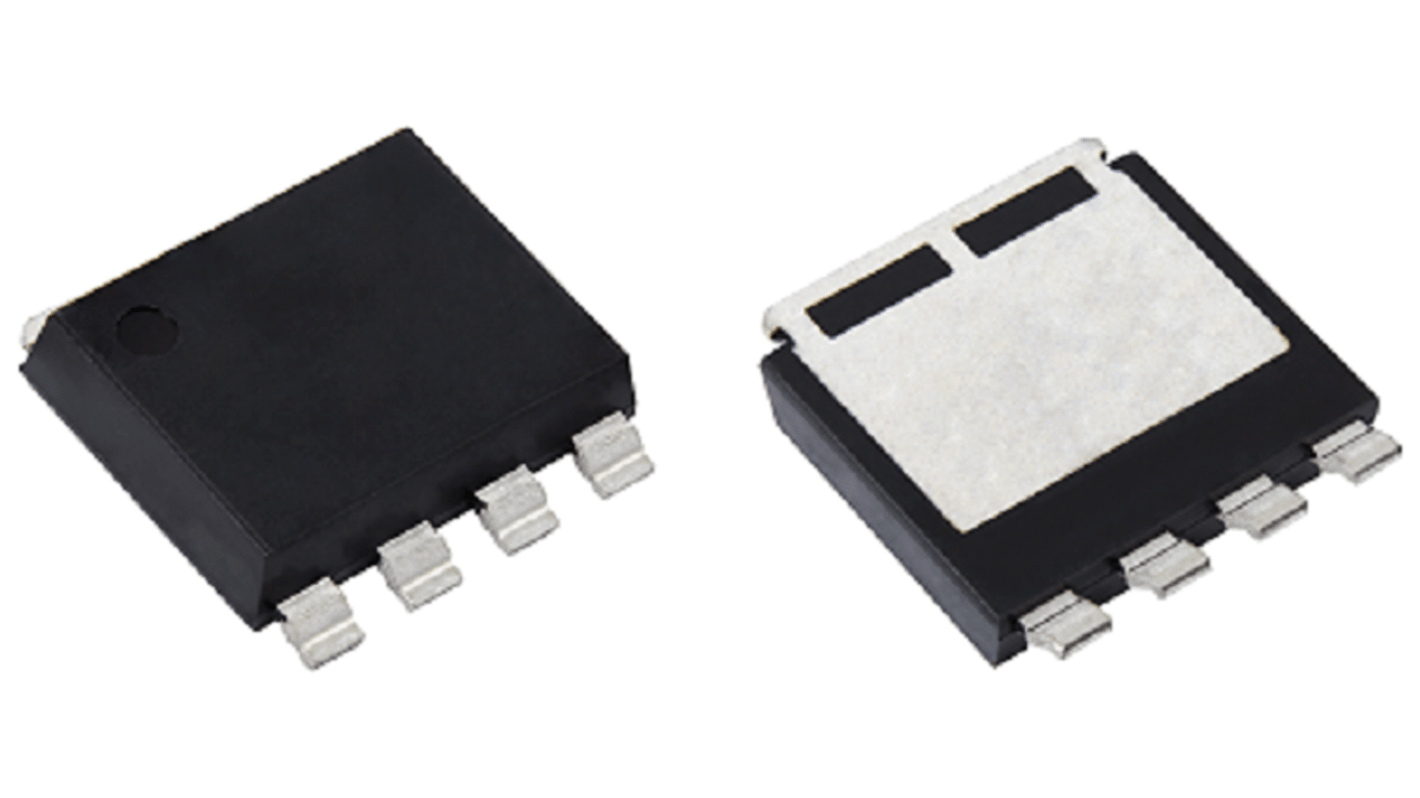

This image is representative of the product range

View all MOSFETs
Bulk discount available

Subtotal (1 pack of 2 units)*

PHP559.11

(exc. VAT)

PHP626.204

(inc. VAT)

Add to Basket
Select or type quantity
Being discontinued
  • Final 694 unit(s), ready to ship from another location
Units
Per Unit
Per Pack*
2 - 48PHP279.555PHP559.11
50 - 98PHP271.17PHP542.34
100 - 248PHP260.32PHP520.64
250 - 998PHP247.295PHP494.59
1000 +PHP232.455PHP464.91

*price indicative

Packaging Options:
RS Stock No.:
252-0312
Mfr. Part No.:
SQJQ184E-T1_GE3
Manufacturer:
Vishay
Find similar products by selecting one or more attributes.
Select all

Brand

Vishay

Channel Type

Type N

Product Type

MOSFET

Maximum Continuous Drain Current Id

430A

Maximum Drain Source Voltage Vds

80V

Package Type

PowerPAK (8x8LR)

Mount Type

Surface

Pin Count

8

Maximum Drain Source Resistance Rds

0.0014mΩ

Channel Mode

Enhancement

Forward Voltage Vf

1.1V

Minimum Operating Temperature

-55°C

Maximum Gate Source Voltage Vgs

20 V

Typical Gate Charge Qg @ Vgs

43nC

Maximum Power Dissipation Pd

214W

Maximum Operating Temperature

175°C

Length

6.15mm

Width

4.9 mm

Standards/Approvals

No

Automotive Standard

AEC-Q101

The Vishay automotive MOSFETs are manufactured on a dedicated process flow to in still ruggedness. Rated for a maximum junction temperature of 175 °C, the vishay siliconix AEC-Q101 qualified SQ series features low on-resistance n- and p-channel trench FET technologies in lead (Pb)- and halogen-free SO packages.

TrenchFET power MOSFET

AEC-Q101 qualified

100 % Rg and UIS tested

Thin 1.9 mm height
