Infineon IRF Type N-Channel MOSFET, 192 A, 75 V, 3-Pin TO-247 IRF300P227
- RS Stock No.:
- 244-2930
- Mfr. Part No.:
- IRF300P227
- Manufacturer:
- Infineon

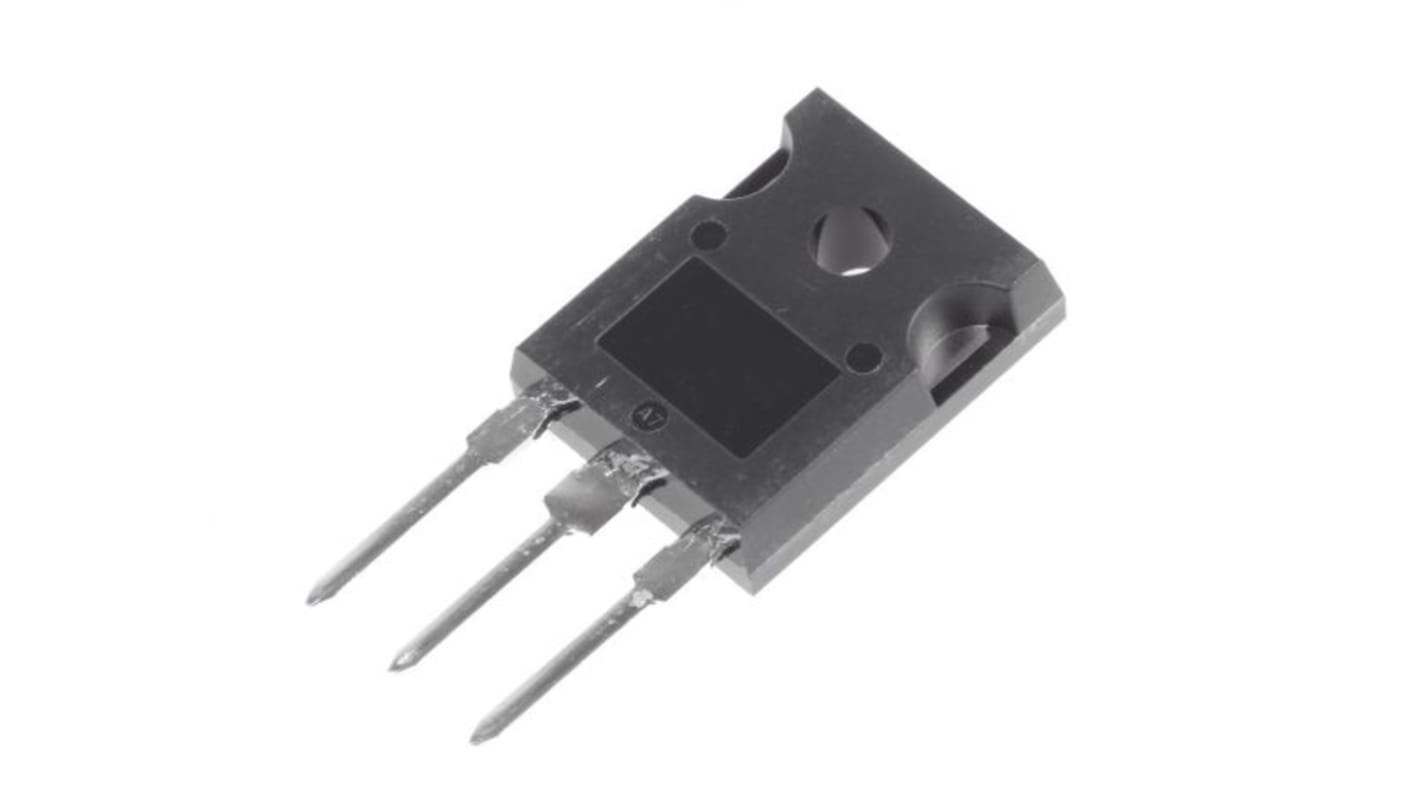

This image is representative of the product range
Bulk discount available
Subtotal (1 unit)*
PHP397.49
(exc. VAT)
PHP445.19
(inc. VAT)
FREE delivery for orders over ₱3,000.00
In Stock
- Plus 383 unit(s) shipping from December 26, 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit |
|---|---|
| 1 - 9 | PHP397.49 |
| 10 - 39 | PHP385.97 |
| 40 - 79 | PHP374.45 |
| 80 - 119 | PHP362.93 |
| 120 + | PHP359.47 |
*price indicative
- RS Stock No.:
- 244-2930
- Mfr. Part No.:
- IRF300P227
- Manufacturer:
- Infineon
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Infineon | |
| Product Type | MOSFET | |
| Channel Type | Type N | |
| Maximum Continuous Drain Current Id | 192A | |
| Maximum Drain Source Voltage Vds | 75V | |
| Package Type | TO-247 | |
| Series | IRF | |
| Mount Type | Surface | |
| Pin Count | 3 | |
| Maximum Drain Source Resistance Rds | 3mΩ | |
| Typical Gate Charge Qg @ Vgs | 80nC | |
| Maximum Gate Source Voltage Vgs | 20 V | |
| Maximum Power Dissipation Pd | 81W | |
| Minimum Operating Temperature | -55°C | |
| Forward Voltage Vf | 1.3V | |
| Maximum Operating Temperature | 175°C | |
| Standards/Approvals | RoHS | |
| Automotive Standard | AEC-Q101 | |
| Select all | ||
|---|---|---|
Brand Infineon | ||
Product Type MOSFET | ||
Channel Type Type N | ||
Maximum Continuous Drain Current Id 192A | ||
Maximum Drain Source Voltage Vds 75V | ||
Package Type TO-247 | ||
Series IRF | ||
Mount Type Surface | ||
Pin Count 3 | ||
Maximum Drain Source Resistance Rds 3mΩ | ||
Typical Gate Charge Qg @ Vgs 80nC | ||
Maximum Gate Source Voltage Vgs 20 V | ||
Maximum Power Dissipation Pd 81W | ||
Minimum Operating Temperature -55°C | ||
Forward Voltage Vf 1.3V | ||
Maximum Operating Temperature 175°C | ||
Standards/Approvals RoHS | ||
Automotive Standard AEC-Q101 | ||
The Infineon IRF300P227 qualification report describes the characteristics of the product with respect to quality and reliability. The qualification sample selection was done on production lots which were manufactured and tested on standard production processes and meet the defined requirements. The qualification test results of those products as outlined in this document are based on JEDEC for target applications and may reference existing qualification results of similar products. Such referencing is justified by the structural similarity of the products.
Improved Gate, Avalanche and Dynamic dv/dt Ruggedness
Fully Characterized Capacitance and Avalanche SOA
Enhanced body diode dv/dt and di/dt Capability
Pb-Free
RoHS Compliant
Halogen-Free
