Vishay SQM50034EL Type N-Channel MOSFET, 100 A, 60 V Enhancement, 1-Pin TO-263

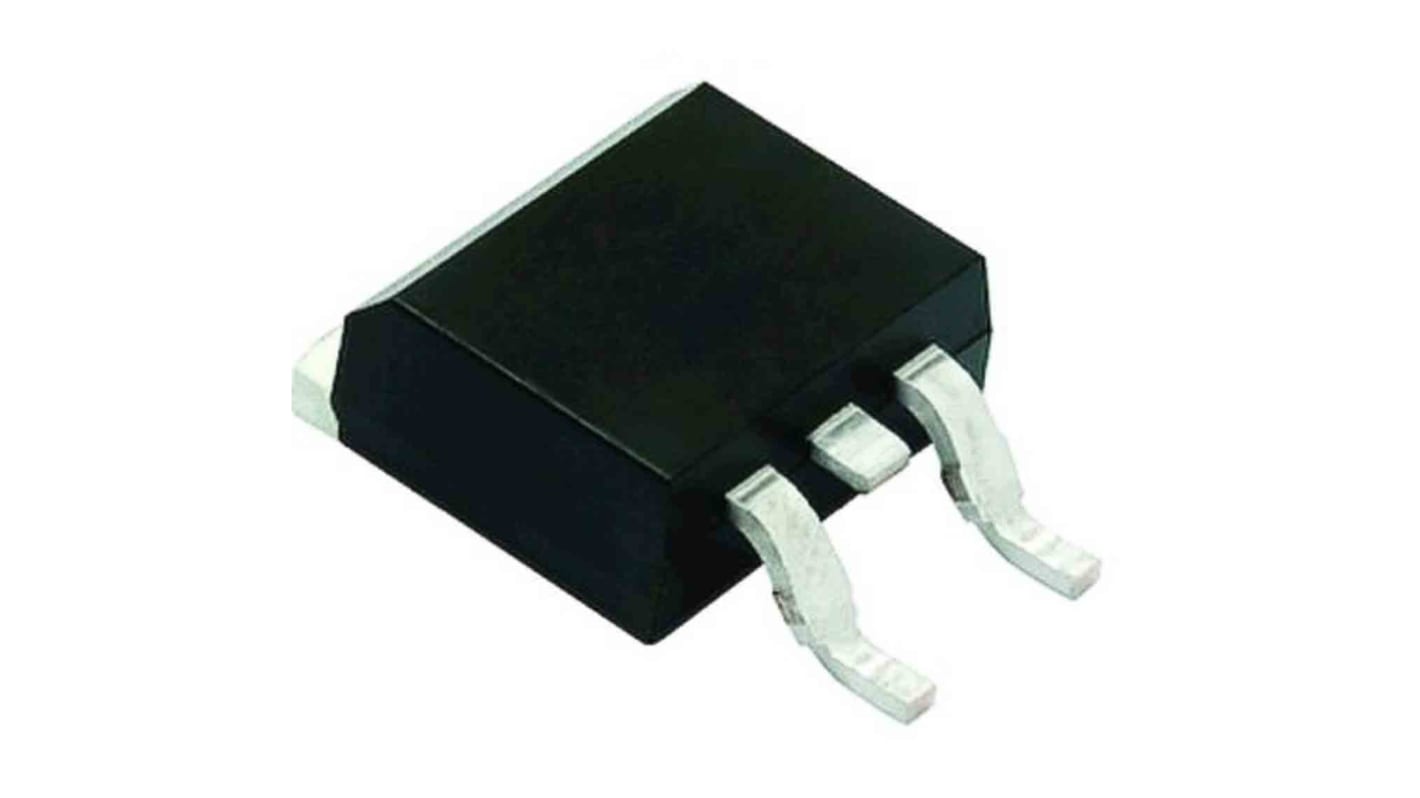

This image is representative of the product range

View all MOSFETs
Bulk discount available

Subtotal (1 pack of 25 units)*

PHP2,500.95

(exc. VAT)

PHP2,801.075

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • Shipping from July 27, 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per Unit
Per Pack*
25 - 75PHP100.038PHP2,500.95
100 - 175PHP90.97PHP2,274.25
200 - 375PHP83.372PHP2,084.30
400 +PHP76.968PHP1,924.20

*price indicative

RS Stock No.:
200-6790
Mfr. Part No.:
SQM50034EL_GE3
Manufacturer:
Vishay
Find similar products by selecting one or more attributes.
Select all

Brand

Vishay

Channel Type

Type N

Product Type

MOSFET

Maximum Continuous Drain Current Id

100A

Maximum Drain Source Voltage Vds

60V

Package Type

TO-263

Series

SQM50034EL

Mount Type

Surface

Pin Count

1

Maximum Drain Source Resistance Rds

5mΩ

Channel Mode

Enhancement

Maximum Gate Source Voltage Vgs

20 V

Typical Gate Charge Qg @ Vgs

90nC

Maximum Power Dissipation Pd

150W

Minimum Operating Temperature

-55°C

Forward Voltage Vf

1.5V

Maximum Operating Temperature

150°C

Standards/Approvals

No

Length

10.41mm

Height

9.66mm

Width

4.82 mm

Automotive Standard

AEC-Q101

The Vishay SQM50034EL_GE3 is a automotive N-channel 60V (D-S) 175°C MOSFET.

TrenchFET power MOSFET

Package with low thermal resistance

100 % Rg and UIS tested

AEC-Q101 qualified
