Microchip DSPIC33CK256MP508-I/PT dsPIC Microprocessor dsPIC33CK256MP508 16 bit MPU 100 MHz 80-Pin TQFP

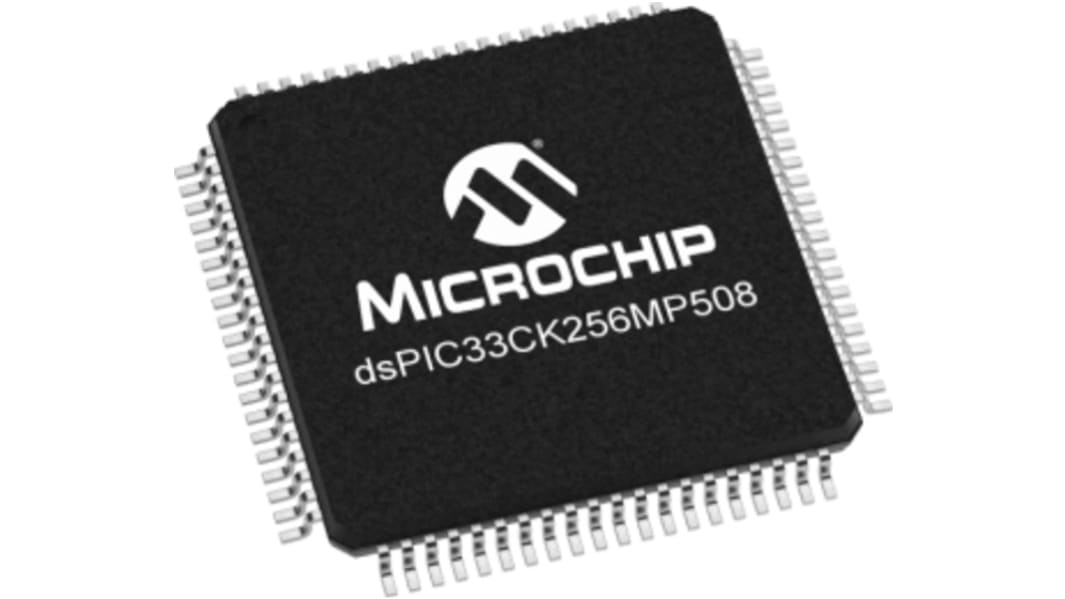

This image is representative of the product range

View all Microprocessors
Bulk discount available

Subtotal (1 pack of 2 units)*

PHP522.88

(exc. VAT)

PHP585.62

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 2 unit(s) ready to ship from another location
  • Plus 108 unit(s) shipping from February 09, 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per Unit
Per Pack*
2 - 8PHP261.44PHP522.88
10 - 48PHP254.91PHP509.82
50 - 98PHP248.54PHP497.08
100 +PHP242.325PHP484.65

*price indicative

Packaging Options:
RS Stock No.:
179-4003
Mfr. Part No.:
DSPIC33CK256MP508-I/PT
Manufacturer:
Microchip
Find similar products by selecting one or more attributes.
Select all

Brand

Microchip

Product Type

Microprocessor

Series

dsPIC33CK256MP508

Device Core

dsPIC

Data Bus Width

16bit

Instruction Set Architecture

MPU

Maximum Clock Frequency

100MHz

Mount Type

Surface

Minimum Supply Voltage

3.6V

Package Type

TQFP

Maximum Supply Voltage

3.6V

Pin Count

80

Minimum Operating Temperature

-40°C

Maximum Operating Temperature

85°C

Width

12 mm

Height

1mm

Standards/Approvals

RoHS

Length

12mm

Number of Cores

1

Automotive Standard

AEC-Q100

Microchip Technology DSP Microcontroller


The Microchip Technology DsPIC33CH family type TQFP package, surface mount, 80-pin and 16-bit CMOS based DSP microcontroller has a voltage rating that ranges between 3V and 3.6V. It has 32Kbytes to 256K bytes program flash with ECC and 8K to 24K RAM. This enables the design of high-performance, precision motor control systems that are more energy-efficient. This microcontroller is used to control BLDC, PMSM, ACIM, SR and stepper motors quieter in operation and also provides extended motor life.

Features and Benefits


• 16-bit working registers

• 8-channel high speed PWMs with 250ps resolution

• Code efficient (C and Assembly) CPU architecture designed

• Communication interface UART, SPI/I2S and CAN bus

• Dual 40-bit fixed point accumulators (ACC) for DSP operations

• Fast 6 cycle divide

• Four DMA channels

• Four sets of interrupt context selected registers and accumulators per core for fast interrupt

• Integrated power-on reset and brown-out reset

• Modified Harvard architecture with 16-bit data and 24-bit instructions

• Nine MCCP/SCCP modules which Include timer, capture/compare and PWM

• One general purpose 16-bit timers

• Operating frequency is 100MHz

• Operating temperature ranges between -40°C and 85°C

• Safety features are DMT, ECC, WDT, CRC, CodeGuard, ICSP, MBIST and fail safe clock monitoring safety features

• Single-cycle MAC/MPY with dual data fetch and result write-back

• Support for DMX, LIN/J2602 protocols and IrDA

• Three 12-bit DAC/Analog comparator modules

• Three low power modes: Sleep, Idle and Doze

• Zero overhead looping

Certifications


• AEC-Q100 REVG

• IEC 60730
