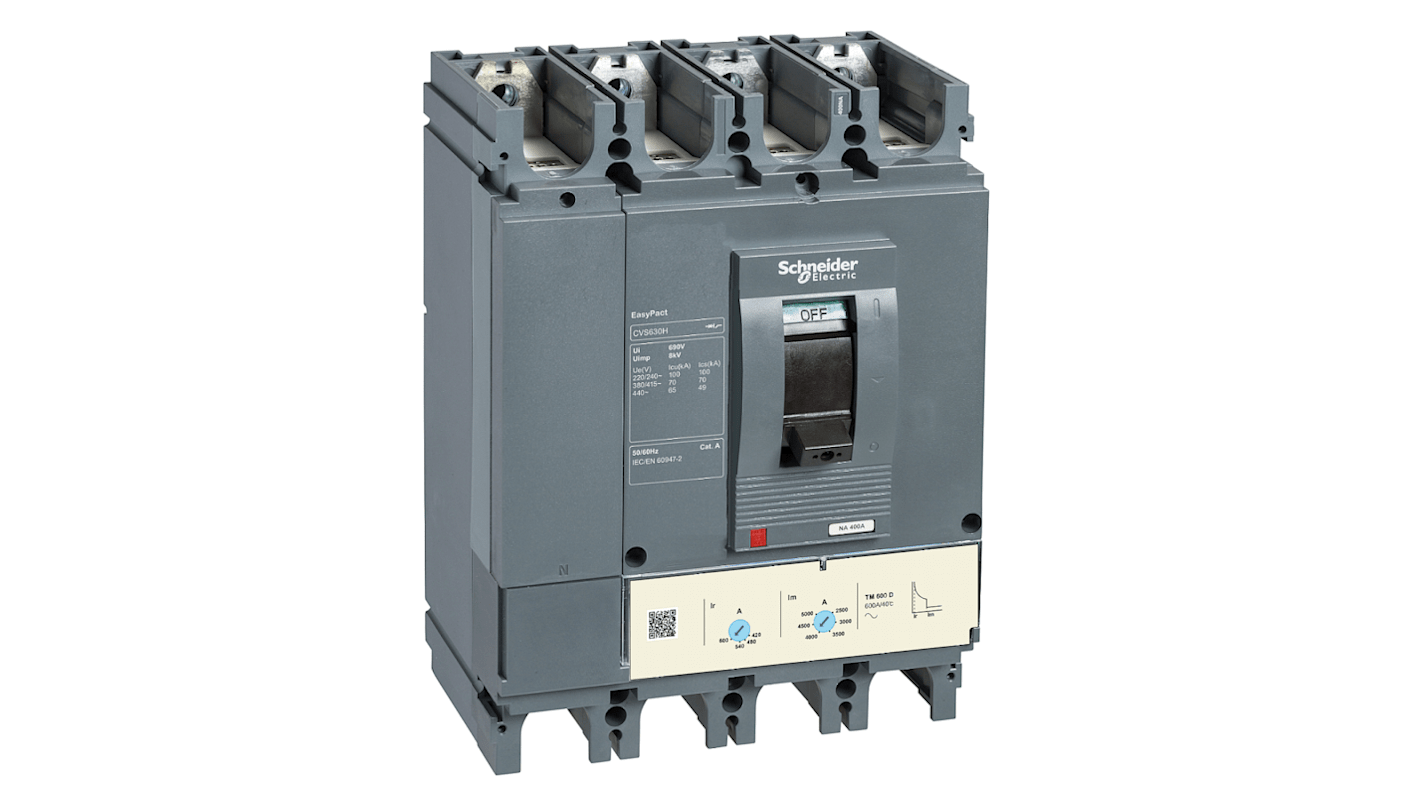

Schneider Electric - Easy Series, EasyPact CVS400, CVS400F Circuit Breaker 4-Pole 320A, Breaking Capacity 36 kA, Fixed
- RS Stock No.:
- 260-9782
- Mfr. Part No.:
- LV540308
- Manufacturer:
- Schneider Electric - Easy Series
Subtotal (1 unit)*
PHP104,156.56
(exc. VAT)
PHP116,655.35
(inc. VAT)
FREE delivery for orders over ₱5,000.00
Stocked by manufacturer
- Ready to ship from December 01, 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit |
|---|---|
| 1 + | PHP104,156.56 |
*price indicative
- RS Stock No.:
- 260-9782
- Mfr. Part No.:
- LV540308
- Manufacturer:
- Schneider Electric - Easy Series
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Schneider Electric - Easy Series | |
| Product Type | Circuit Breaker | |
| Range | EasyPact CVS400 | |
| Series | CVS400F | |
| Number of Poles | 4 | |
| Current Rating | 320A | |
| Breaking Capacity | 36kA | |
| Mount Type | Fixed | |
| Rated AC Voltage | 415V | |
| Terminal Type | Screw | |
| Width | 244 | |
| Standards/Approvals | No | |
| Height | 255mm | |
| Depth | 210 | |
| Break Time | Instantaneous | |
| Reset Actuator Type | Toggle Switch | |
| Tripping Characteristics | Type D | |
| Tripping Mechanism | Thermal Magnetic | |
| Select all | ||
|---|---|---|
Brand Schneider Electric - Easy Series | ||
Product Type Circuit Breaker | ||
Range EasyPact CVS400 | ||
Series CVS400F | ||
Number of Poles 4 | ||
Current Rating 320A | ||
Breaking Capacity 36kA | ||
Mount Type Fixed | ||
Rated AC Voltage 415V | ||
Terminal Type Screw | ||
Width 244 | ||
Standards/Approvals No | ||
Height 255mm | ||
Depth 210 | ||
Break Time Instantaneous | ||
Reset Actuator Type Toggle Switch | ||
Tripping Characteristics Type D | ||
Tripping Mechanism Thermal Magnetic | ||
- COO (Country of Origin):
- CN
The Schneider Electric EasyPact CVS400F is a 4 poles 3d fixed circuit breaker with a high level of performance and cost saving functionality. It is an optimal choice for small and medium sized buildings protection applications. The breaking capacity (Icu) is 36kA rms at 415VAC 50/60Hz. The operational voltage is 440VAC 50/60Hz. This product embeds a 320A rating thermal magnetic trip unit (TMD).
Outstanding durability
Modular design helps to increase the shop floor efficiency
