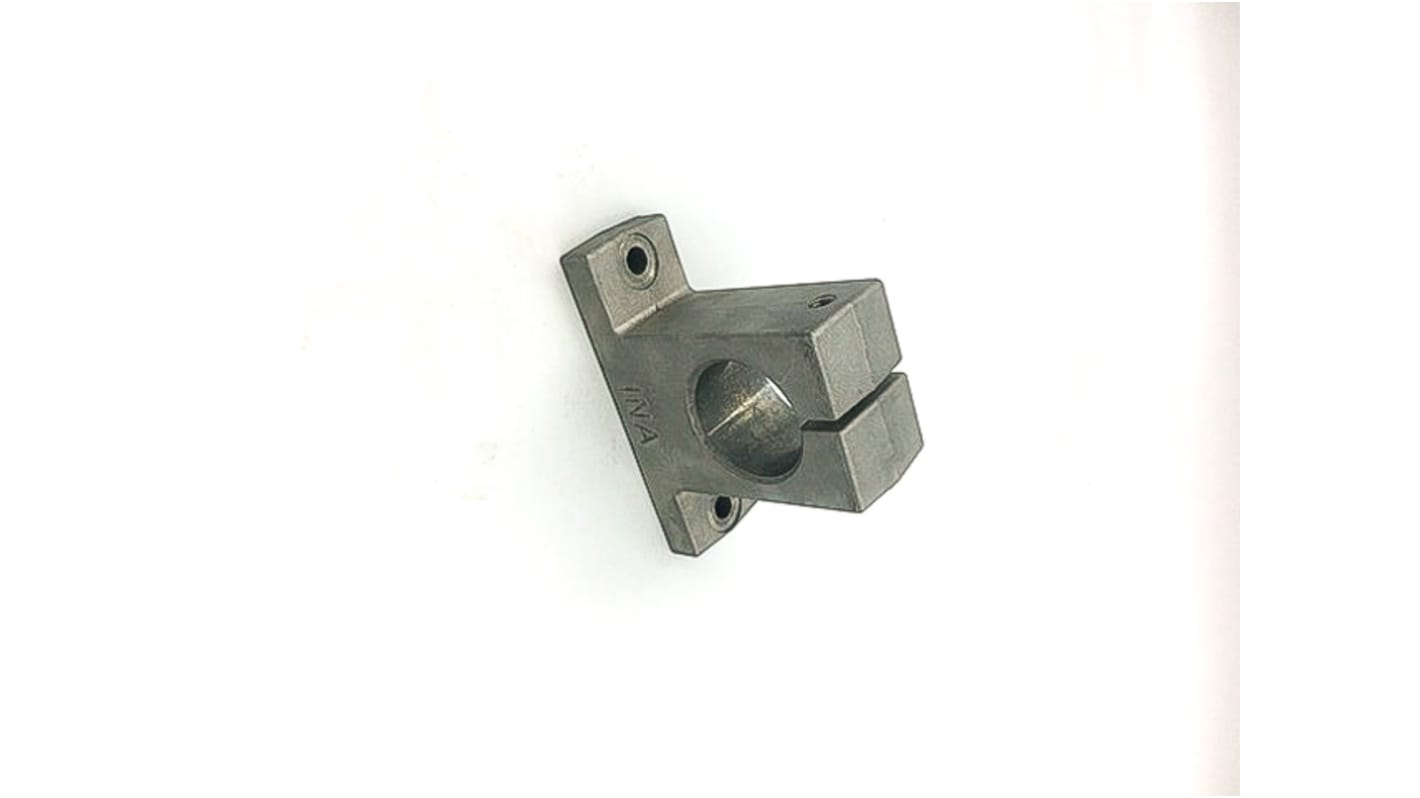

INA Linear Shaft Support 2-Bolt Base Linear Ball Bearing Block 38 mm, GW14 14 mm 46 mm
- RS Stock No.:
- 194-6932
- Mfr. Part No.:
- GW14
- Manufacturer:
- INA
Subtotal (1 unit)*
PHP2,027.56
(exc. VAT)
PHP2,270.87
(inc. VAT)
FREE delivery for orders over ₱5,000.00
Temporarily out of stock
- Shipping from April 01, 2027
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit |
|---|---|
| 1 + | PHP2,027.56 |
*price indicative
- RS Stock No.:
- 194-6932
- Mfr. Part No.:
- GW14
- Manufacturer:
- INA
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | INA | |
| Product Type | Linear Shaft Support | |
| Mount Type | 2-Bolt Base | |
| Sub Type | Linear Ball Bearing Block | |
| Overall Length | 14mm | |
| Base to Bore Centerline | 22mm | |
| Inside Diameter | 14mm | |
| Overall Width | 46mm | |
| Overall Height | 38mm | |
| Standards/Approvals | No | |
| Select all | ||
|---|---|---|
Brand INA | ||
Product Type Linear Shaft Support | ||
Mount Type 2-Bolt Base | ||
Sub Type Linear Ball Bearing Block | ||
Overall Length 14mm | ||
Base to Bore Centerline 22mm | ||
Inside Diameter 14mm | ||
Overall Width 46mm | ||
Overall Height 38mm | ||
Standards/Approvals No | ||
Shaft support blocks are used to support shafts and locate the ends of the shaft
They are suitable for all the solid and hollow shafts in this catalogue
They are made from either an aluminium alloy or pressure diecast zinc
Series GWA is identical in design to series GW but is suitable for larger fixing screws
Depending on the series, the shaft support blocks have through holes or threaded holes
