Renesas Electronics ICL3221CVZ-T Line Transceiver, ICL324, 16-Pin TSSOP
- RS Stock No.:
- 264-0591P
- Mfr. Part No.:
- ICL3221CVZ-T
- Manufacturer:
- Renesas Electronics

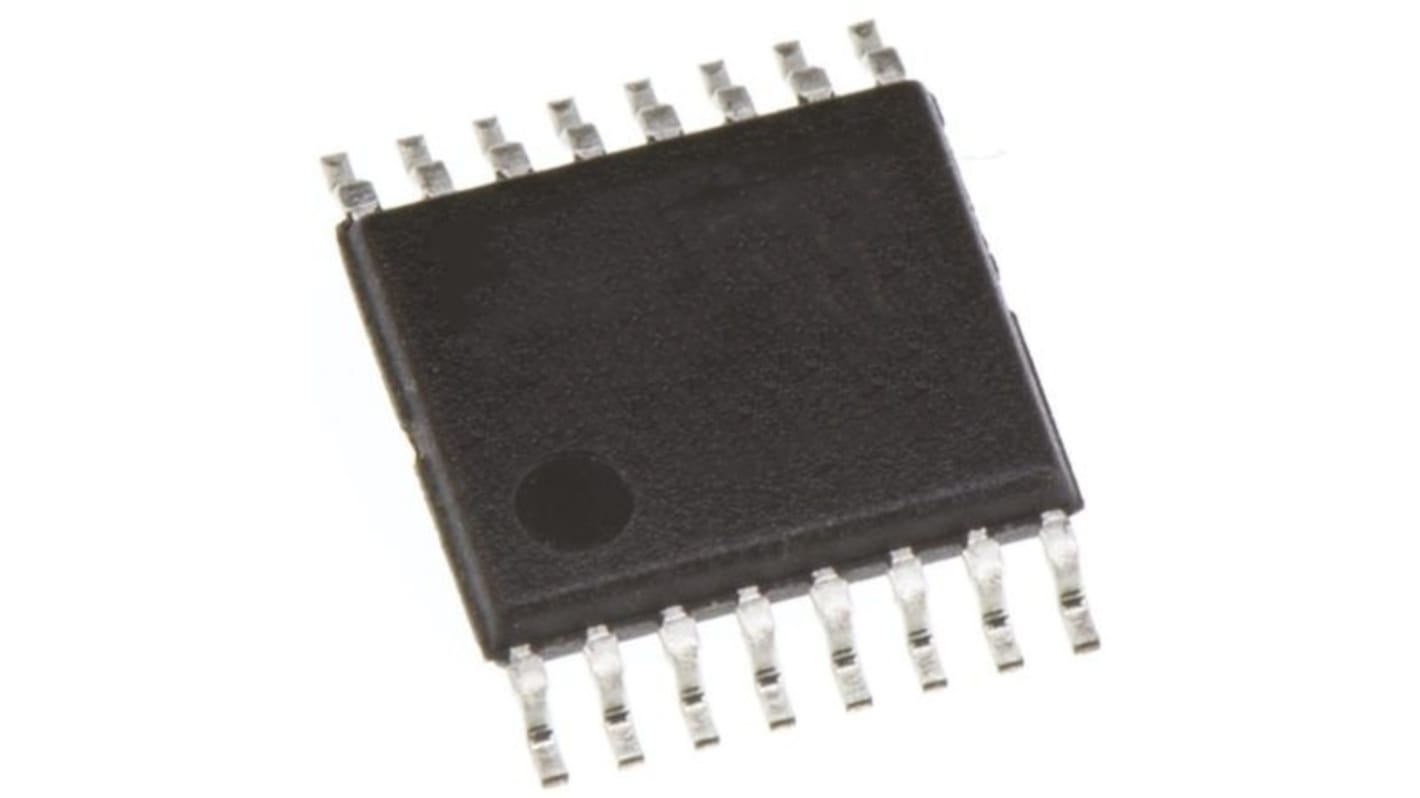

This image is representative of the product range
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
- RS Stock No.:
- 264-0591P
- Mfr. Part No.:
- ICL3221CVZ-T
- Manufacturer:
- Renesas Electronics
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Renesas Electronics | |
| Logic Family | CMOS | |
| Product Type | Line Transceiver | |
| Logic Function | Bus Transceiver | |
| IC Type | Transmitter/Receiver | |
| Input Type | 3 State | |
| Output Type | ICL324 | |
| Mount Type | Board | |
| Package Type | TSSOP | |
| Minimum Supply Voltage | 3V | |
| Pin Count | 16 | |
| Maximum Supply Voltage | 5.5V | |
| Maximum High Level Output Current | 1mA | |
| Minimum Operating Temperature | 0°C | |
| Maximum Low Level Output Current | 0.3mA | |
| Maximum Propagation Delay Time @ CL | 0.3μs | |
| Maximum Operating Temperature | 70°C | |
| Series | ICL3221 | |
| Standards/Approvals | IEC61000-4-2, RoHS | |
| Length | 6.5mm | |
| Height | 2mm | |
| Width | 5.6mm | |
| Automotive Standard | No | |
| Supply Current | 1μA | |
| Select all | ||
|---|---|---|
Brand Renesas Electronics | ||
Logic Family CMOS | ||
Product Type Line Transceiver | ||
Logic Function Bus Transceiver | ||
IC Type Transmitter/Receiver | ||
Input Type 3 State | ||
Output Type ICL324 | ||
Mount Type Board | ||
Package Type TSSOP | ||
Minimum Supply Voltage 3V | ||
Pin Count 16 | ||
Maximum Supply Voltage 5.5V | ||
Maximum High Level Output Current 1mA | ||
Minimum Operating Temperature 0°C | ||
Maximum Low Level Output Current 0.3mA | ||
Maximum Propagation Delay Time @ CL 0.3μs | ||
Maximum Operating Temperature 70°C | ||
Series ICL3221 | ||
Standards/Approvals IEC61000-4-2, RoHS | ||
Length 6.5mm | ||
Height 2mm | ||
Width 5.6mm | ||
Automotive Standard No | ||
Supply Current 1μA | ||
- COO (Country of Origin):
- PH
The Renesas Electronics line interface ics are high ESD protected, single transceivers that meet both the RS-485 and RS-422 standards for balanced communication. Each device has low bus currents with a receiver inputs and features a full fail-safe design.
Wide common-mode range
Low current shutdown mode
High data rates
