Renesas Electronics 74FCT244ATSOG Buffer & Line Driver, 3 State, 20-Pin SOIC-20
- RS Stock No.:
- 263-7945
- Mfr. Part No.:
- 74FCT244ATSOG
- Manufacturer:
- Renesas Electronics

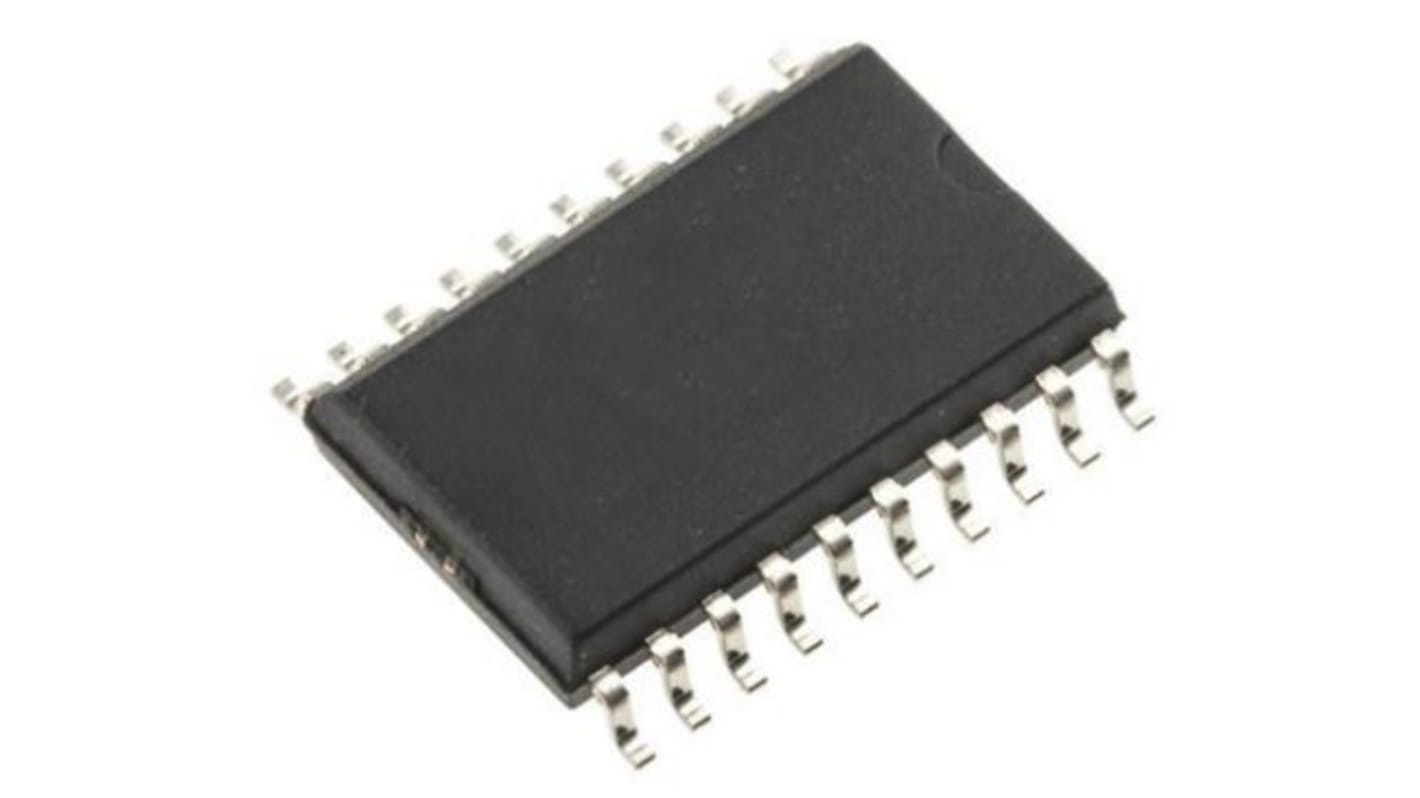

This image is representative of the product range
Bulk discount available
Subtotal (1 tube of 37 units)*
PHP1,758.869
(exc. VAT)
PHP1,969.917
(inc. VAT)
FREE delivery for orders over ₱3,000.00
In Stock
- 888 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit | Per Tube* |
|---|---|---|
| 37 - 74 | PHP47.537 | PHP1,758.87 |
| 111 - 222 | PHP46.111 | PHP1,706.11 |
| 259 - 481 | PHP43.344 | PHP1,603.73 |
| 518 - 999 | PHP39.443 | PHP1,459.39 |
| 1036 + | PHP34.71 | PHP1,284.27 |
*price indicative
- RS Stock No.:
- 263-7945
- Mfr. Part No.:
- 74FCT244ATSOG
- Manufacturer:
- Renesas Electronics
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Renesas Electronics | |
| Logic Family | CMOS | |
| Product Type | Buffer & Line Driver | |
| Logic Function | Buffer & Line Driver | |
| IC Type | Buffer & Line Driver | |
| Input Type | TTL | |
| Output Type | 3 State | |
| Mount Type | Surface | |
| Package Type | SOIC-20 | |
| Minimum Supply Voltage | 0.3V | |
| Pin Count | 20 | |
| Maximum Supply Voltage | 3.3V | |
| Maximum High Level Output Current | -15mA | |
| Maximum Propagation Delay Time @ CL | 5.1ns | |
| Minimum Operating Temperature | -40°C | |
| Maximum Low Level Output Current | 64mA | |
| Maximum Operating Temperature | 85°C | |
| Series | 74FCT244T | |
| Standards/Approvals | JEDEC, RoHS | |
| Supply Current | 4.5mA | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand Renesas Electronics | ||
Logic Family CMOS | ||
Product Type Buffer & Line Driver | ||
Logic Function Buffer & Line Driver | ||
IC Type Buffer & Line Driver | ||
Input Type TTL | ||
Output Type 3 State | ||
Mount Type Surface | ||
Package Type SOIC-20 | ||
Minimum Supply Voltage 0.3V | ||
Pin Count 20 | ||
Maximum Supply Voltage 3.3V | ||
Maximum High Level Output Current -15mA | ||
Maximum Propagation Delay Time @ CL 5.1ns | ||
Minimum Operating Temperature -40°C | ||
Maximum Low Level Output Current 64mA | ||
Maximum Operating Temperature 85°C | ||
Series 74FCT244T | ||
Standards/Approvals JEDEC, RoHS | ||
Supply Current 4.5mA | ||
Automotive Standard No | ||
- COO (Country of Origin):
- TW
The Renesas Electronics IDT octal buffer/line driver is built using an advanced dual metal CMOS technology. It is designed to be employed as a memory and address driver, clock driver, and bus-oriented transmitter/ receiver which provides improved board density.
High drive outputs
Power off disable outputs permit live insertion
