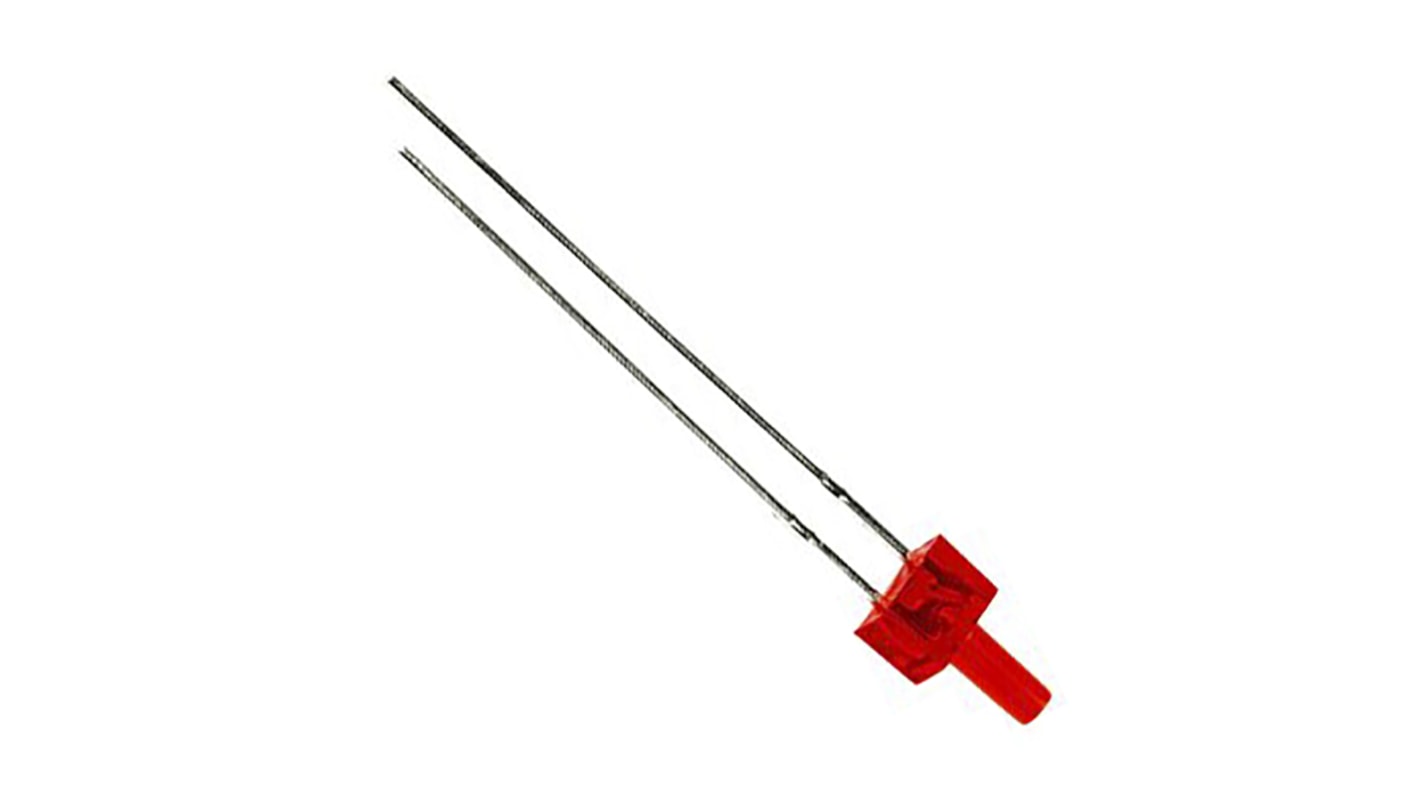

Kingbright 2 V Red LED 2 mm Through Hole L-13 L-13ID
- RS Stock No.:
- 229-2425
- Mfr. Part No.:
- L-13ID
- Manufacturer:
- Kingbright
Bulk discount available
Subtotal (1 pack of 5 units)*
PHP76.95
(exc. VAT)
PHP86.20
(inc. VAT)
FREE delivery for orders over ₱3,000.00
In Stock
- Plus 4,320 unit(s) shipping from March 23, 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit | Per Pack* |
|---|---|---|
| 5 - 20 | PHP15.39 | PHP76.95 |
| 25 - 95 | PHP14.928 | PHP74.64 |
| 100 - 245 | PHP14.482 | PHP72.41 |
| 250 - 495 | PHP14.16 | PHP70.80 |
| 500 + | PHP13.854 | PHP69.27 |
*price indicative
- RS Stock No.:
- 229-2425
- Mfr. Part No.:
- L-13ID
- Manufacturer:
- Kingbright
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Kingbright | |
| LED Colour | Red | |
| Product Type | LED | |
| Package Type | 2 mm | |
| Maximum Forward Current | 160mA | |
| Mount Type | Through Hole | |
| Packaging | Bag | |
| Forward Voltage | 2V | |
| Maximum Power Dissipation | 75mW | |
| Number of Pins | 2 | |
| Viewing Angle | 70 ° | |
| LED Luminosity | 15 mcd | |
| Lens Dimensions | 8 x 2 mm | |
| Lens Shape | Round | |
| Standards/Approvals | RoHS | |
| Dominant Wavelength | 625 nm | |
| Lens Finish | Diffused | |
| Lens Colour | Red | |
| Series | L-13 | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand Kingbright | ||
LED Colour Red | ||
Product Type LED | ||
Package Type 2 mm | ||
Maximum Forward Current 160mA | ||
Mount Type Through Hole | ||
Packaging Bag | ||
Forward Voltage 2V | ||
Maximum Power Dissipation 75mW | ||
Number of Pins 2 | ||
Viewing Angle 70 ° | ||
LED Luminosity 15 mcd | ||
Lens Dimensions 8 x 2 mm | ||
Lens Shape Round | ||
Standards/Approvals RoHS | ||
Dominant Wavelength 625 nm | ||
Lens Finish Diffused | ||
Lens Colour Red | ||
Series L-13 | ||
Automotive Standard No | ||
- COO (Country of Origin):
- CN
Kingbright Through Hole Flat Top LED Series
Kingbright's range of flat top LEDs come in a 2mm package size, fitting a 2mm hole in a panel up to 3.5mm (0.138"). The flat top LEDs mount flush with the panel. These LEDs offer low power consumption and long lifetime with solid state reliability. The flat top LEDs are available in a variety of colours and are ideal for use as audio panel indicators.
Viewing angle: 70°
Visible Light LEDs, Kingbright
